Both ends of a power cable are dual-hole JG terminals. The blue cable is connected to
the NEG(-) terminal, and the black cable is connected to the RTN(+) terminal. Figure
3-2 shows power cables with dual-hole JG terminals.

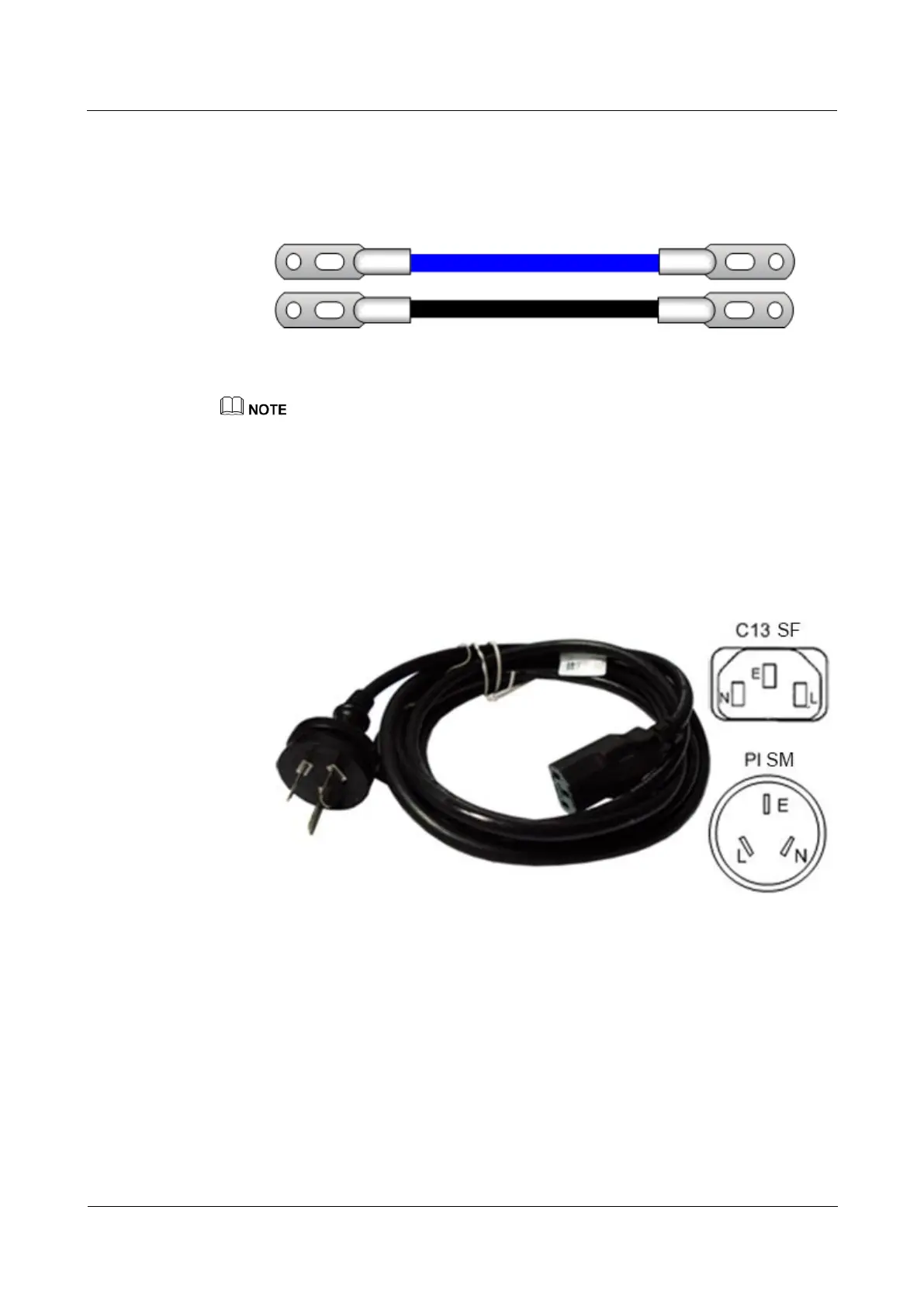

Figure 3-2 Power cable with dual-hole JG terminals
− AC power cable
Most countires have their own AC power cables, including China, Europe, and North America.The
delivered AC power cables must comply with local standards. The following uses China AC power
cables as an example.
AC power cables include the AC power cable using the C13 straight female (SF) and
the PI straight male (SM) and the AC power cable using the C13 angled female (AF)
and the C14 SM. The two types of power cables differ in the power port. Figure 3-3
shows an AC power cable using the C13 SF and PI SM. Figure 3-4 shows an AC
power cable using the C13 AF and C14 SM.
Figure 3-3 AC power cable using the C13 SF and PI SM
