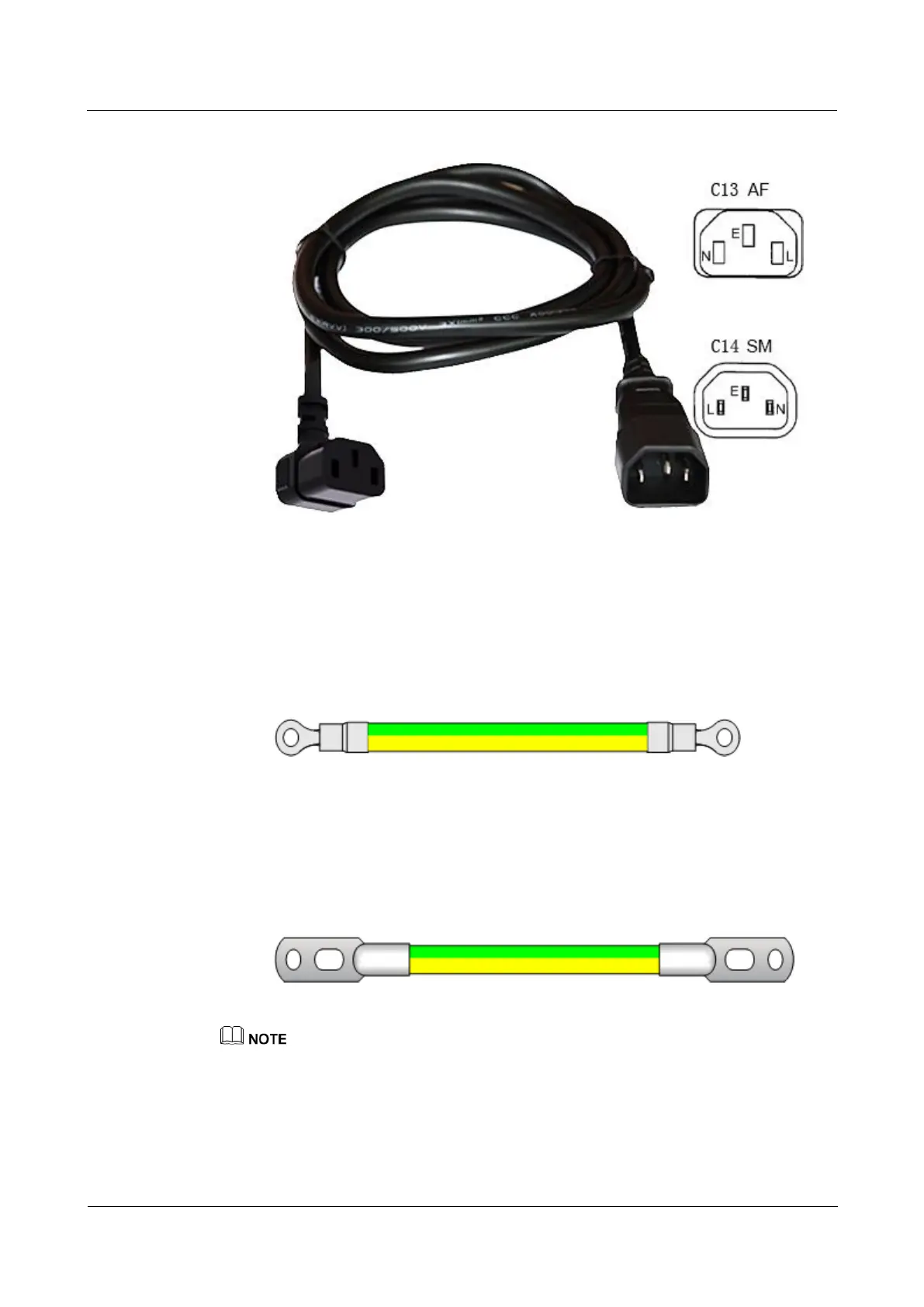

Figure 3-4 AC power cable using the C13 AF and C14 SM
PGND cable
− PGND cable with OT terminals
Each subrack is configured with one PGND cable. The cable is yellow and green.
Both ends of the PGND cable are OT terminals. Figure 3-5 shows a PGND cable with
OT terminals.
Figure 3-5 PGND cable with OT terminals
− PGND cable with dual-hole JG terminals
Each subrack is configured with one PGND cable. The cable is yellow and green.
Both ends of the PGND cable are dual-hole JG terminals. Figure 3-6 shows a PGND
cable with dual-hole JG terminals.
Figure 3-6 PGND cable with dual-hole JG terminals
The subrack used in North America uses power cables with dual-hole JG terminals and PGND cables
with dual-hole JG terminals.
Technical Specifications
Table 3-1 lists the technical specifications of the power and PGND cables for a subrack.
