HUAWEI SE2900 Session Border Controller
Hardware Description
1 Service Processing Device
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Appearance
Figure 1-13 shows an F8002 subrack.

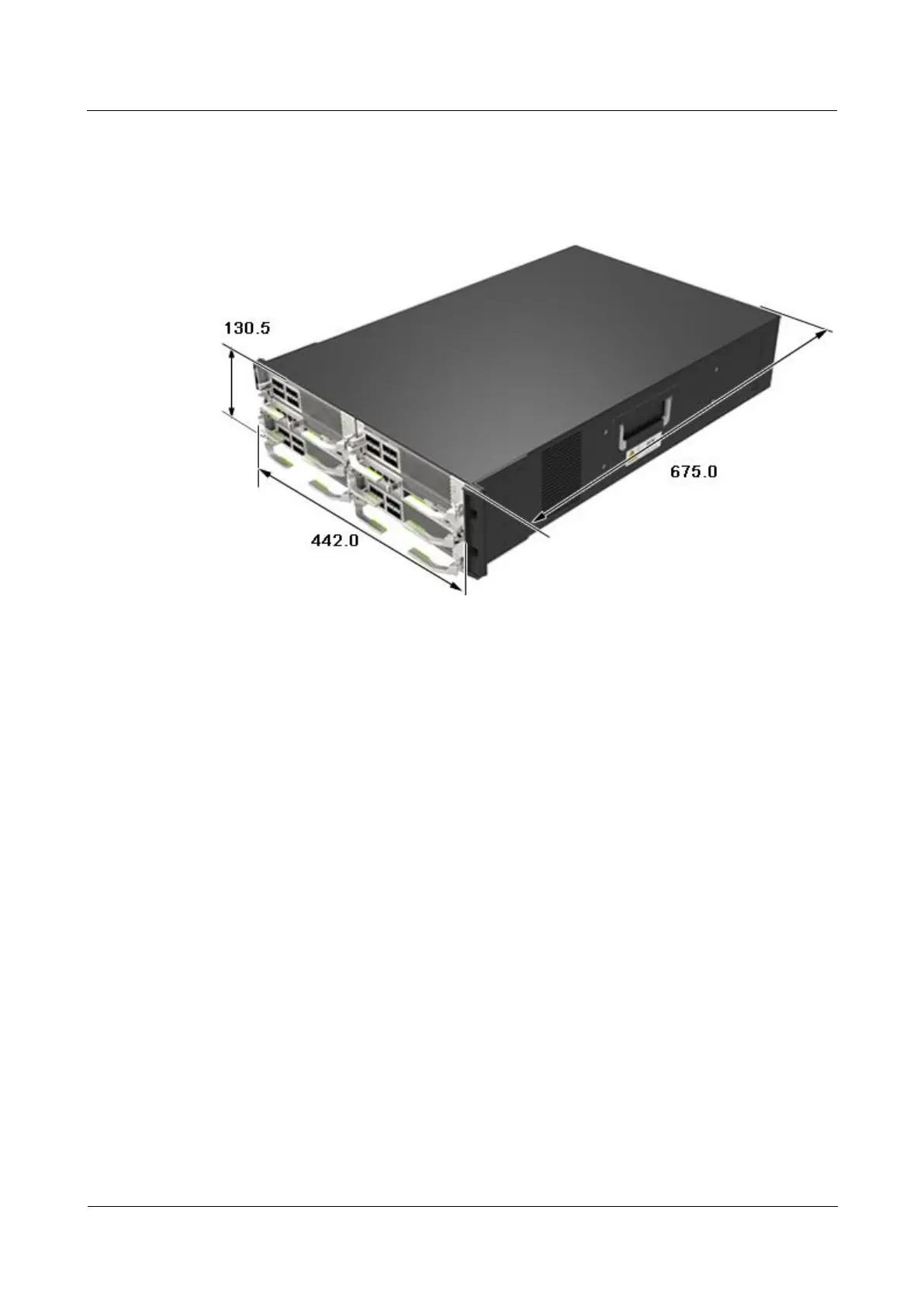

Figure 1-13 F8002 subrack (unit: mm)
Each F8002 subrack provides six front slots and four rear slots. The front slots are installed
with the multi-function switch units (MXUs) and service boards. The rear slots are installed
with AC PSUs and fan modules. Figure 1-14 shows the slot positions.
