HUAWEI SE2900 Session Border Controller
Hardware Description
1 Service Processing Device
Issue 01 (2016-01-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
19

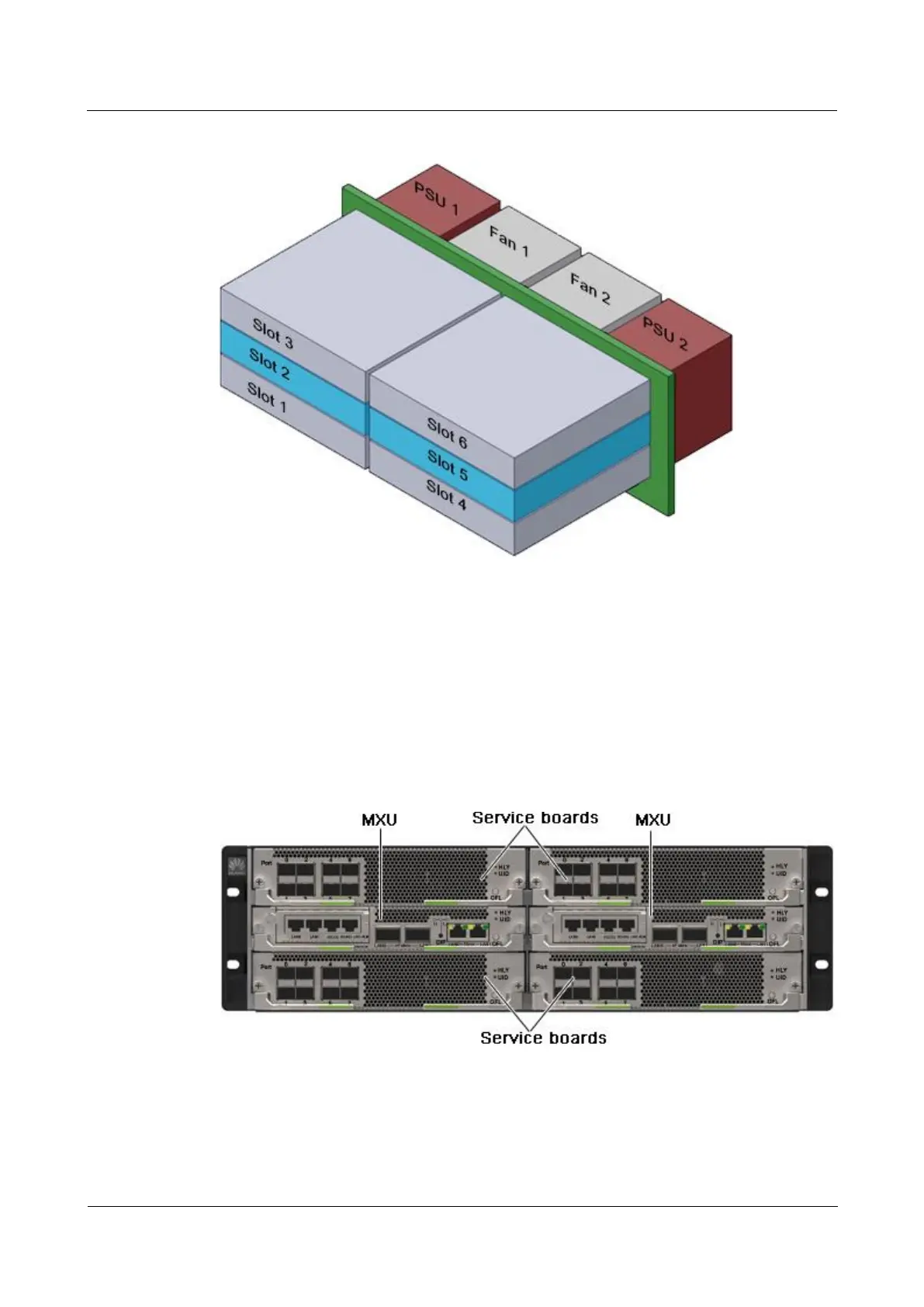

Figure 1-14 F8002 subrack slot positions
The F8002 subrack provides:

Slots 2 and 5 for MXUs.

Slots 1, 3, 4, and 6 for service boards.

PSU 1 and PSU 2 for AC PSUs.

Fan 1 and Fan 2 for fan trays.
Figure 1-15 shows the front view of an F8002 subrack in full configuration.
Figure 1-15 Front view of an F8002 subrack in full configuration
Figure 1-16 shows the rear view of an F8002 subrack.
