HUAWEI SE2900 Session Border Controller
Hardware Description
1 Service Processing Device
Issue 01 (2016-01-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
38
N
o.
Compon
ent
Quantity
Description
3
Cover
1
The metal cover is used to protect the board components
and guide air flows.

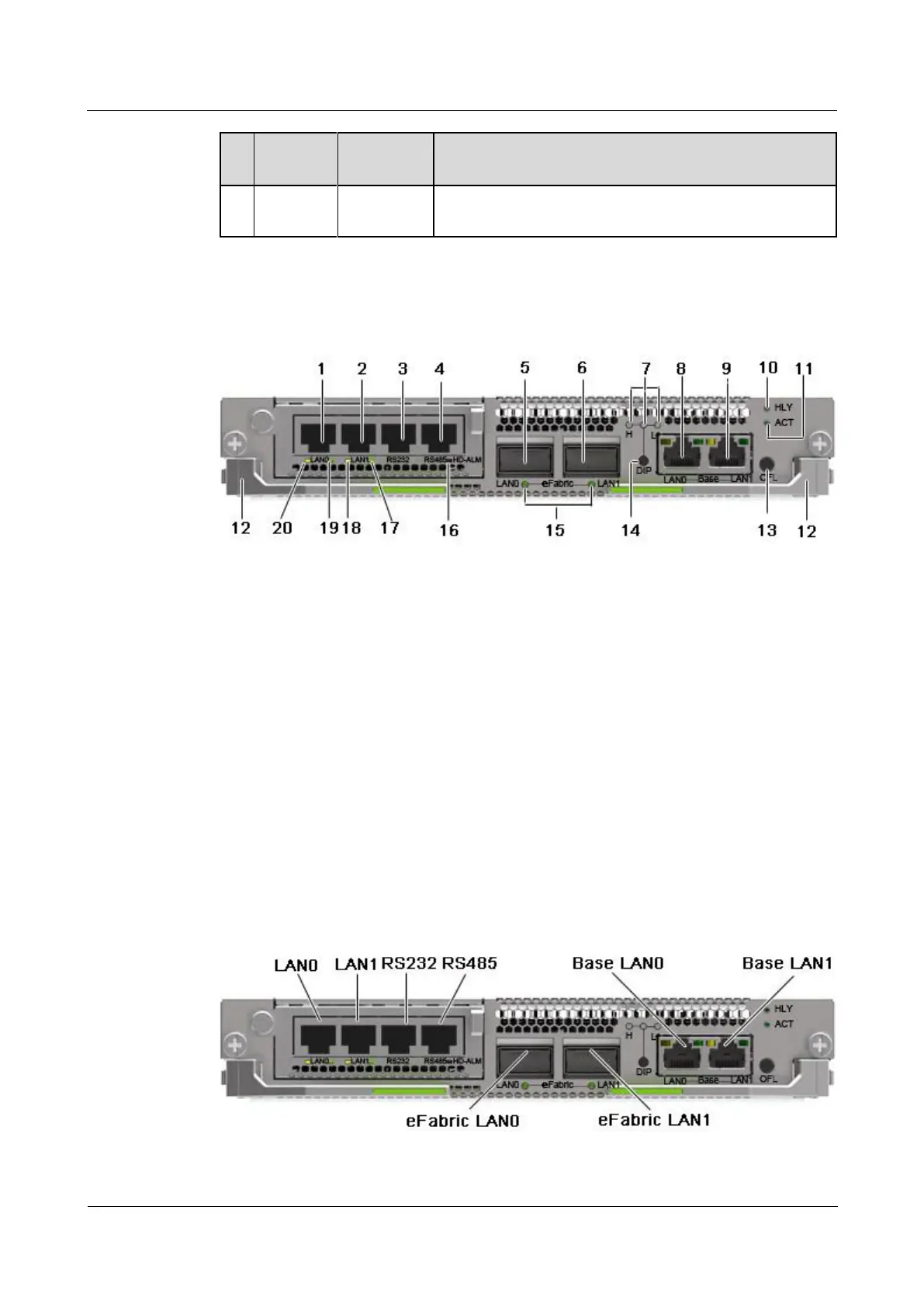

Figure 1-30 shows the MXUA0 panel.
Figure 1-30 Panel
1. LAN0
2. LAN1
3. RS232
4. RS485
5. eFabric LAN0
6. eFabric LAN1
7. Subrack number
indicators
8. Base LAN0
9. Base LAN1
10. HLY
indicator
11. ACT indicator
12. Ejector levers
13. OFL
indicator/button
14. DIP button
15. eFabric LAN0/LAN1
indicators
16. HD-ALM
indicator
17. LAN1 LINK
indicator
18. LAN1 ACT
indicator
19. LAN0 LINK
indicator
20. LAN0 ACT
indicator
Interfaces
Figure 1-31 shows the panel ports on the MXUA0. Table 1-23 describes the panel ports.
Figure 1-31 Panel ports
