Table 1-23 Panel port description
Silk Screen
Meaning
Port Type
Standard
LAN0/LAN1
O&M network port
RJ45
10/100/1000BASE-
T
RS232
System
commissioning serial
port
RJ45
RS232
RS485 port
Power distribution
monitoring serial
port
RJ45
RS485 port
eFabric
LAN0/LAN1
Cascading port for
the eFabric plane
Quad Small
Form-factor
Pluggable Plus
(QSFP+)
40GBASE-SR4
Base LAN0/LAN1
Cascading port of
the Base plane
RJ45
10/100/1000BASE-
T
Indicators
Figure 1-32 shows the indicators and buttons on the MXUA0. Table 1-24 describes the
indicators and buttons.

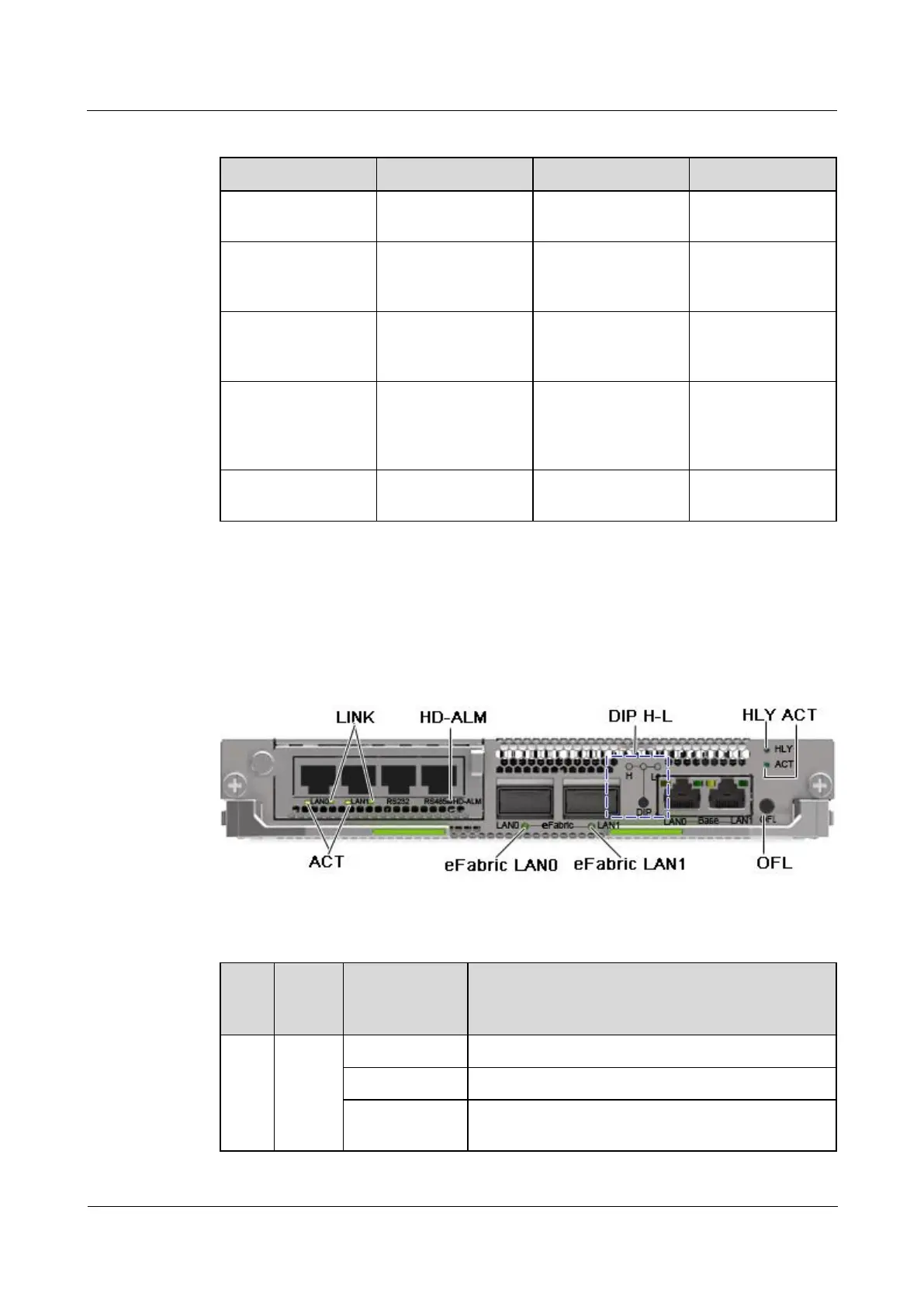

Figure 1-32 Indicators and buttons
Table 1-24 Description of indicators and buttons
Silk
Scre
en
Meani
ng
State
State Description
HLY
Health
indicat
or
Off
The board is not powered on.
Steady green
The board is operating properly.
Blinking red
An alarm is generated. The blinking frequency
indicates the alarm severity:
