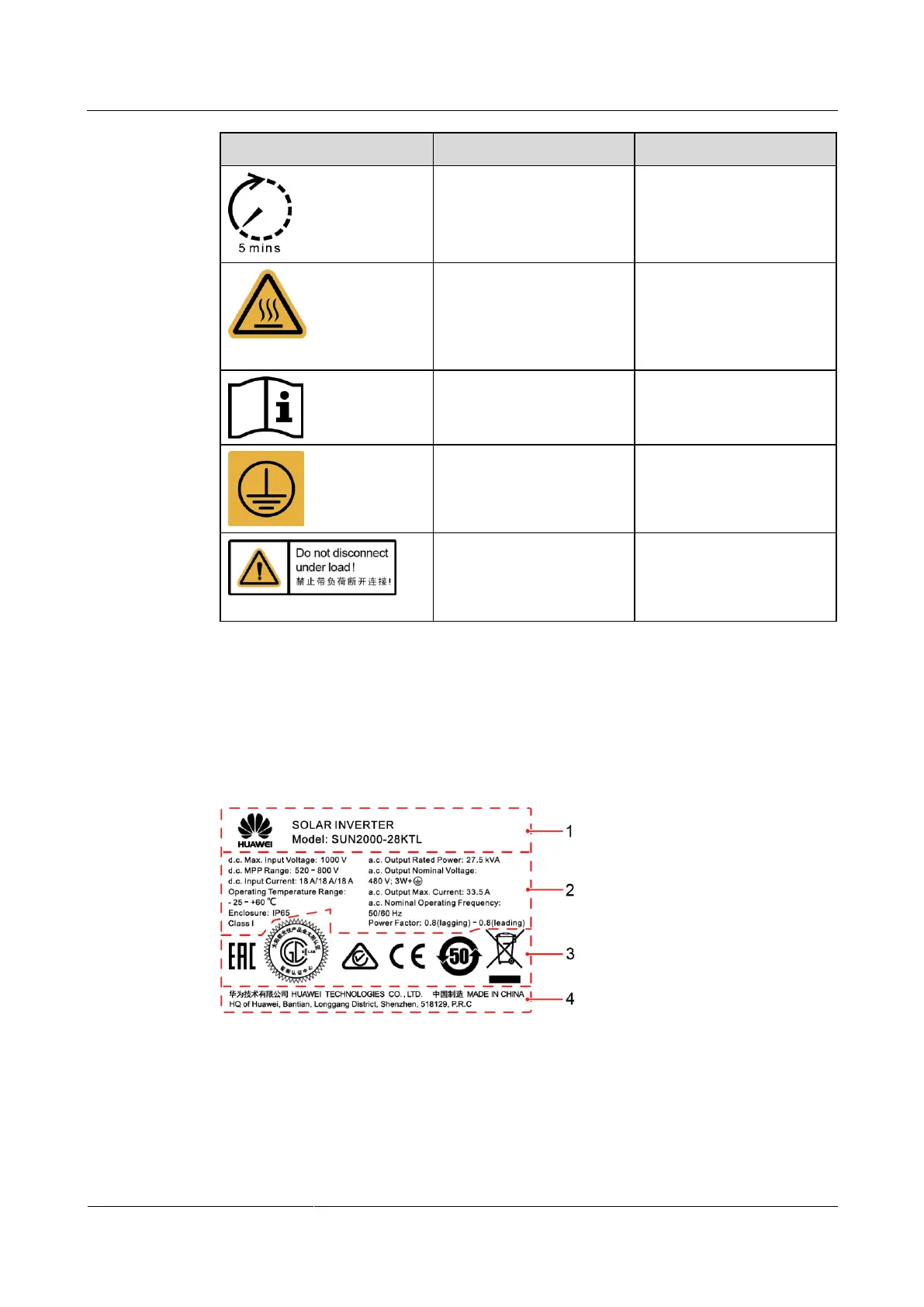

Symbol
Label
Meaning
Delay discharge
Any residual voltage in the
SUN2000 takes 5 minutes
to fully discharge.
Burn warning
The SUN2000 must not be
touched when in operation
because its enclosure and
heat sinks are extremely
hot.
Refer to documentation
Remind operators to refer to
the documentation shipped
with the SUN2000.
Grounding
The SUN2000 must be
connected to a ground bar
for grounding purposes.
Operation warning
The DC input connector
must not be removed when
the SUN2000 is in
operation.
Nameplate
Figure 2-7 shows the SUN2000 nameplate, which contains the model information, technical
specifications, and compliance symbols.
Figure 2-7 Nameplate
(1) Trademark, product name, and model
number
(2) Technical specifications
(3) Compliance symbols
(4) Company name and country of
manufacture

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
