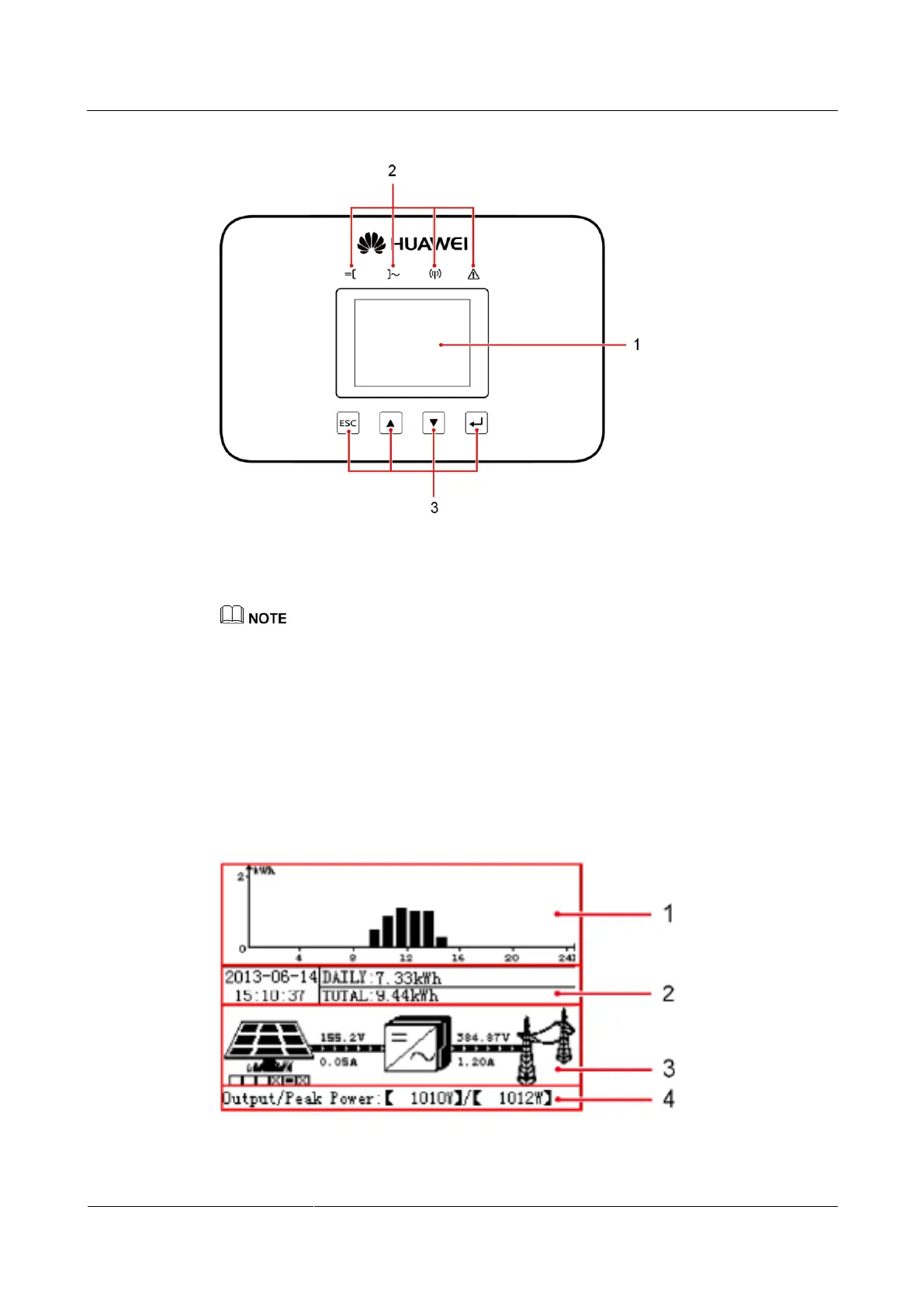

Figure 2-8 Monitoring panel
(1) LCD
(2) Indicators
(3) Buttons
The LCD displays SUN2000 operating data such as input power, output power, energy yield, and alarms.
The indicators show the SUN2000 operating status.
LCD
The LCD displays the SUN2000 data in graphics and text, including the operating
information, alarm information, system parameters, and user parameters.
If no button is pressed within 90s on a non-default screen, the LCD automatically displays the
default screen, which is shown in Figure 2-9.
Figure 2-9 Default page

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
