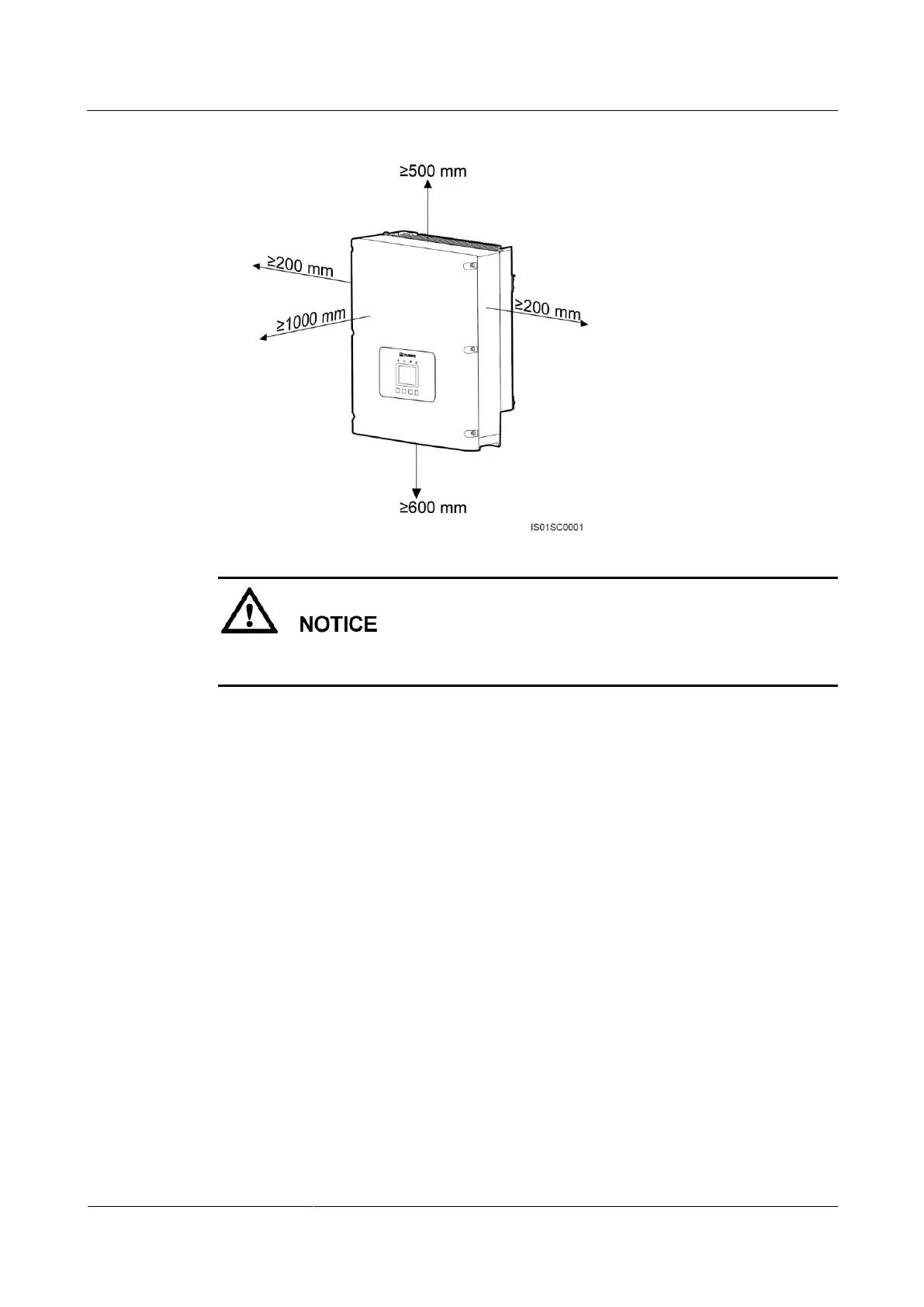

Figure 4-2 Minimum installation clearance
The minimum installation clearance shown in Figure 4-2 must be provided in any installation
scenario, including wall-mounted and support-mounted scenarios.

Multiple SUN2000s must be installed in a line if sufficient space is available. Otherwise,
they must be installed in checkerboard mode as shown in Figure 4-3. The stacked
installation mode shown in Figure 4-4 is not recommended. The clearance between
SUN2000s must meet requirements shown in the following figures.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
