Huawei SUN2000-12KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
4 Installation
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
36

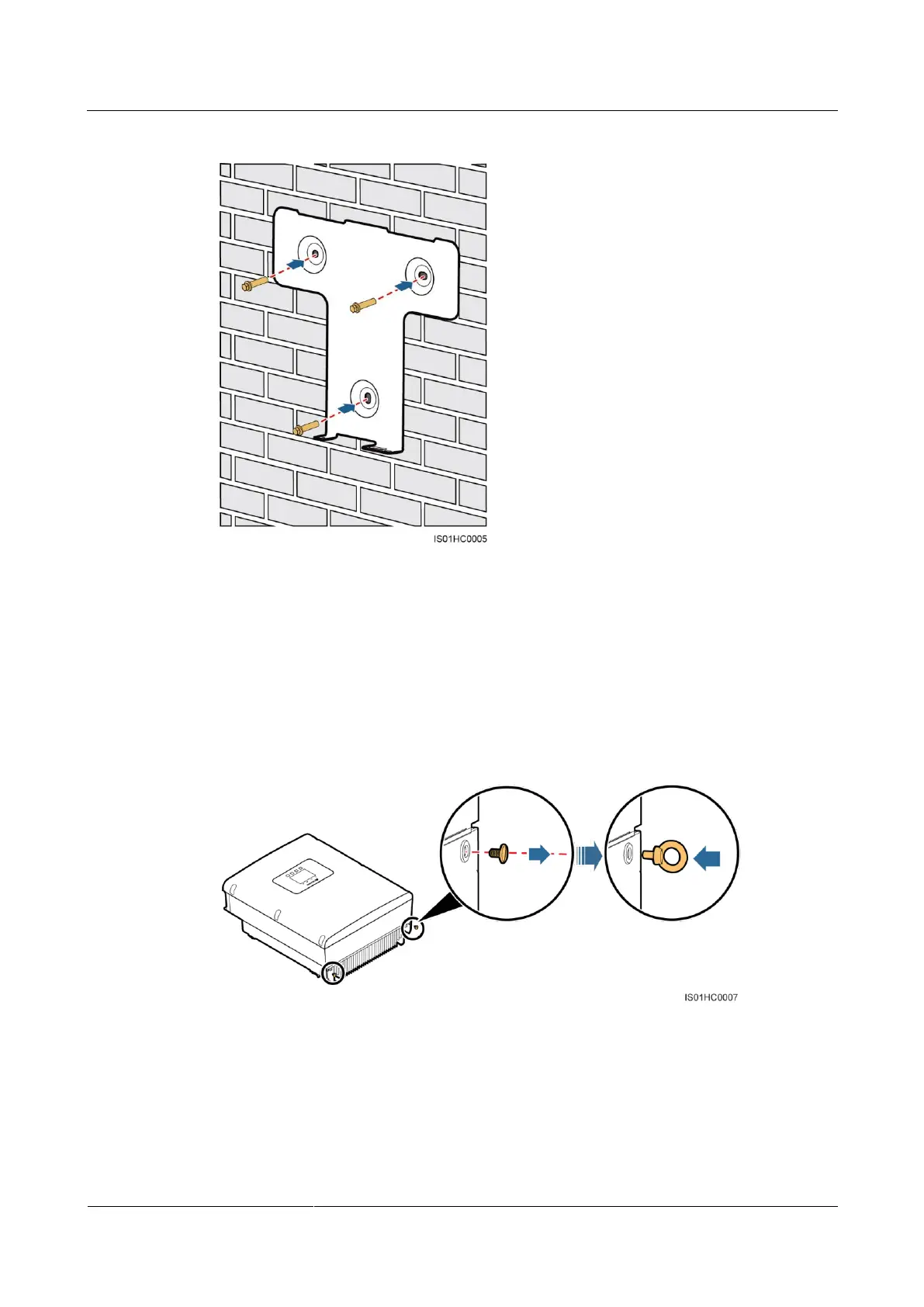

Figure 4-19 Securing a rear panel
Step 4 If the rear panel has been installed low enough for the SUN2000 to be mounted, go to Step 9
after performing Step 7.
Step 5 If the rear panel has been installed too high for the SUN2000 to be mounted, perform Step 6
to Step 10.
Step 6 Remove the two rubber screws from the top of the SUN2000 using a flat-head screwdriver
and install two M10 lifting eyes, as shown in Figure 4-20.
Figure 4-20 Installing lifting eyes
Step 7 Ensure that two people lift the SUN2000 and turn it upright. Lift the SUN2000 by grasping
the handle at the bottom of the SUN2000 with one hand and the handle at the top with the
other, as shown in Figure 4-21.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
