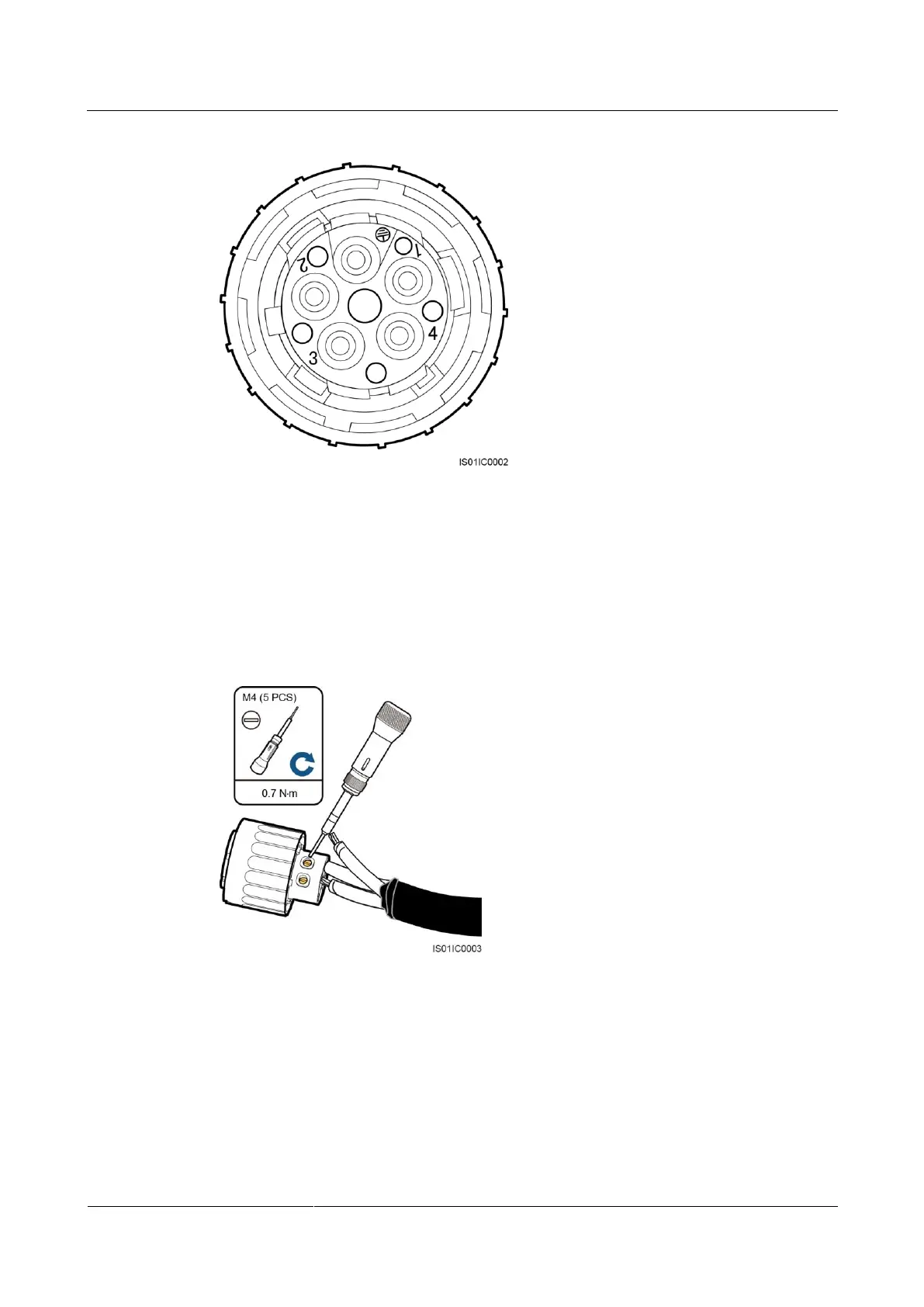

Figure 5-9 Coupler

Connect L1 to hole number 1.

Connect L2 to hole number 2.

Connect L3 to hole number 3.

Connect N to hole number 4.
For the SUN2000-28KTL, do not connect the neutral wire to hole number 4.
Figure 5-10 Connecting an AC output cable to the coupler
Step 5 Check that all core wires are properly connected, as shown in Figure 5-11.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
