Huawei SUN2000-12KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
5 Electrical Connections
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
47
When cutting off the cable, take protective measures to prevent personal injury.
Step 3 Insert the core wires (L1, L2, L3, and N) of the AC output cable into the cable gland and the
adapter, as shown in Figure 5-8.
If the outer diameter of the cable is greater than 16 mm, remove a seal ring from the interior of the cable
gland (as shown in Figure 5-7) before inserting the power cable into the cable gland and the adapter.

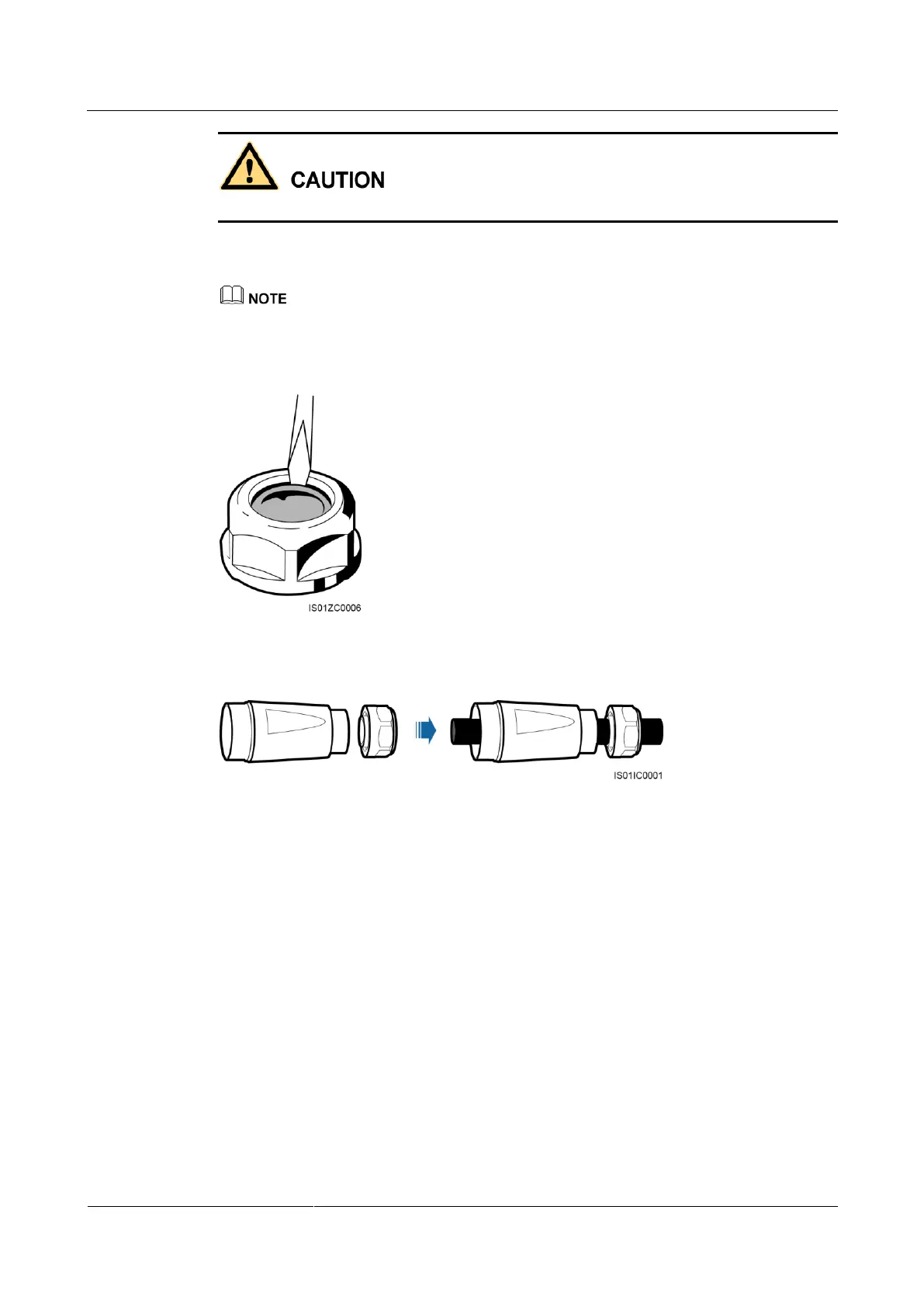

Figure 5-7 Stripping a seal ring
Figure 5-8 Installing a cable gland and adapter
Step 4 Loosen the screws of the coupler holes using a torque screwdriver. Insert the core wires into
the corresponding holes as shown in Figure 5-9. Tighten the screws to a torque of 0.7 N·m, as
shown in Figure 5-10.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
