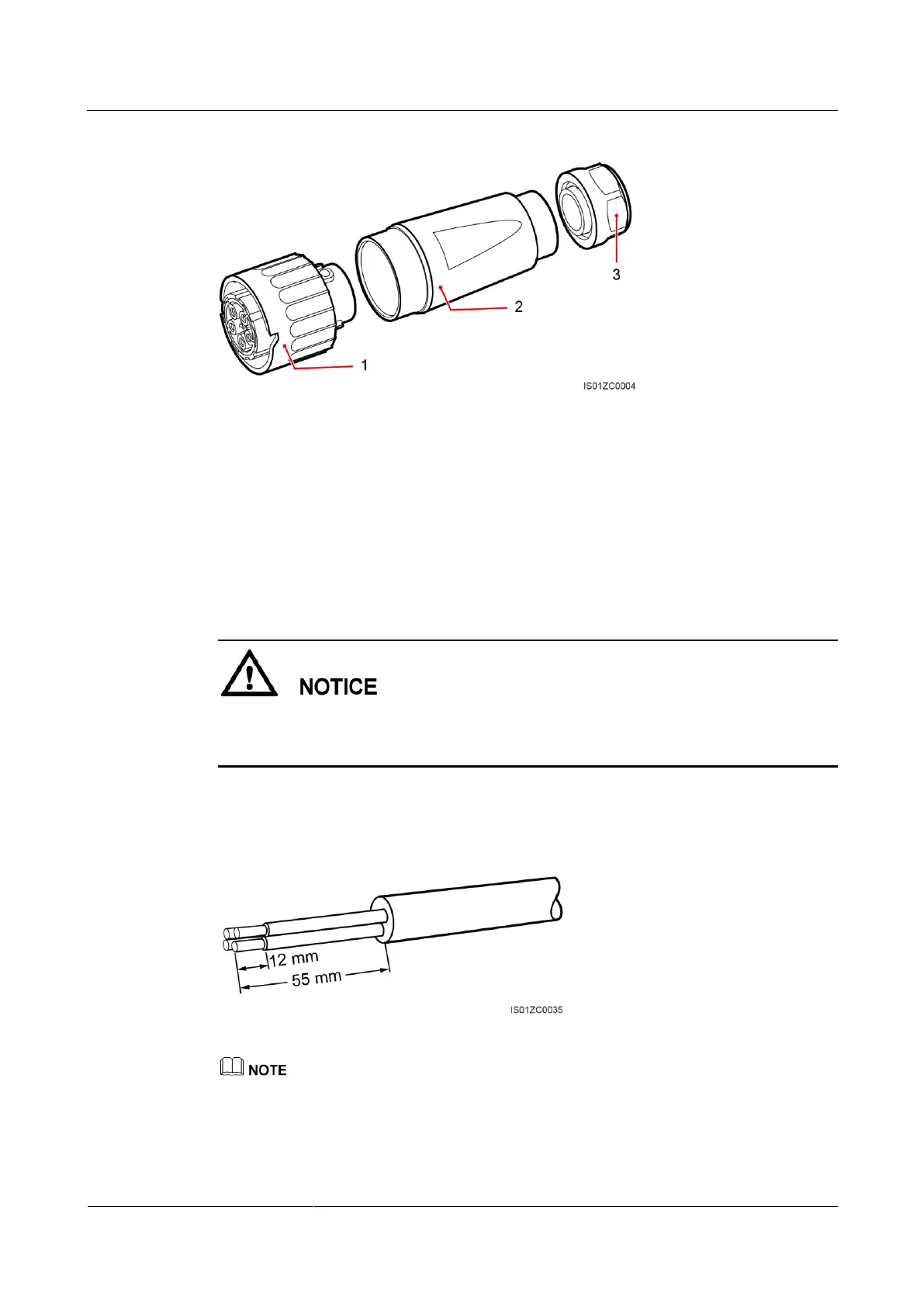

Figure 5-5 AC output connector
(1) Coupler
(2) Adapter
(3) Cable gland
Procedure
Step 1 Remove the cable gland and adapter from the AC output connector.
Step 2 Remove an appropriate length of the jacket and insulation layer of the core wires from the AC
output cable using a wire stripper, as shown in Figure 5-6.
The core wires (L1, L2, L3, and N) of the AC power cable must be correctly identified to
prevent incorrect cable connections which can cause device damage or startup failure. (No
neutral cable connections are involved for the SUN2000-28KTL.)
1. Strip the jacket of the AC output cable by 55 mm.
2. Strip the insulation layer of each core wire by 12 mm.
Figure 5-6 Stripped length
The preceding figure shows the stripped length only for all SUN2000 models except the
SUN2000-28KTL. For the SUN2000-28KTL, align the neutral cable with the protective jacket and cut
off the neutral cable.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
