Huawei SUN2000-12KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
5 Electrical Connections
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
55

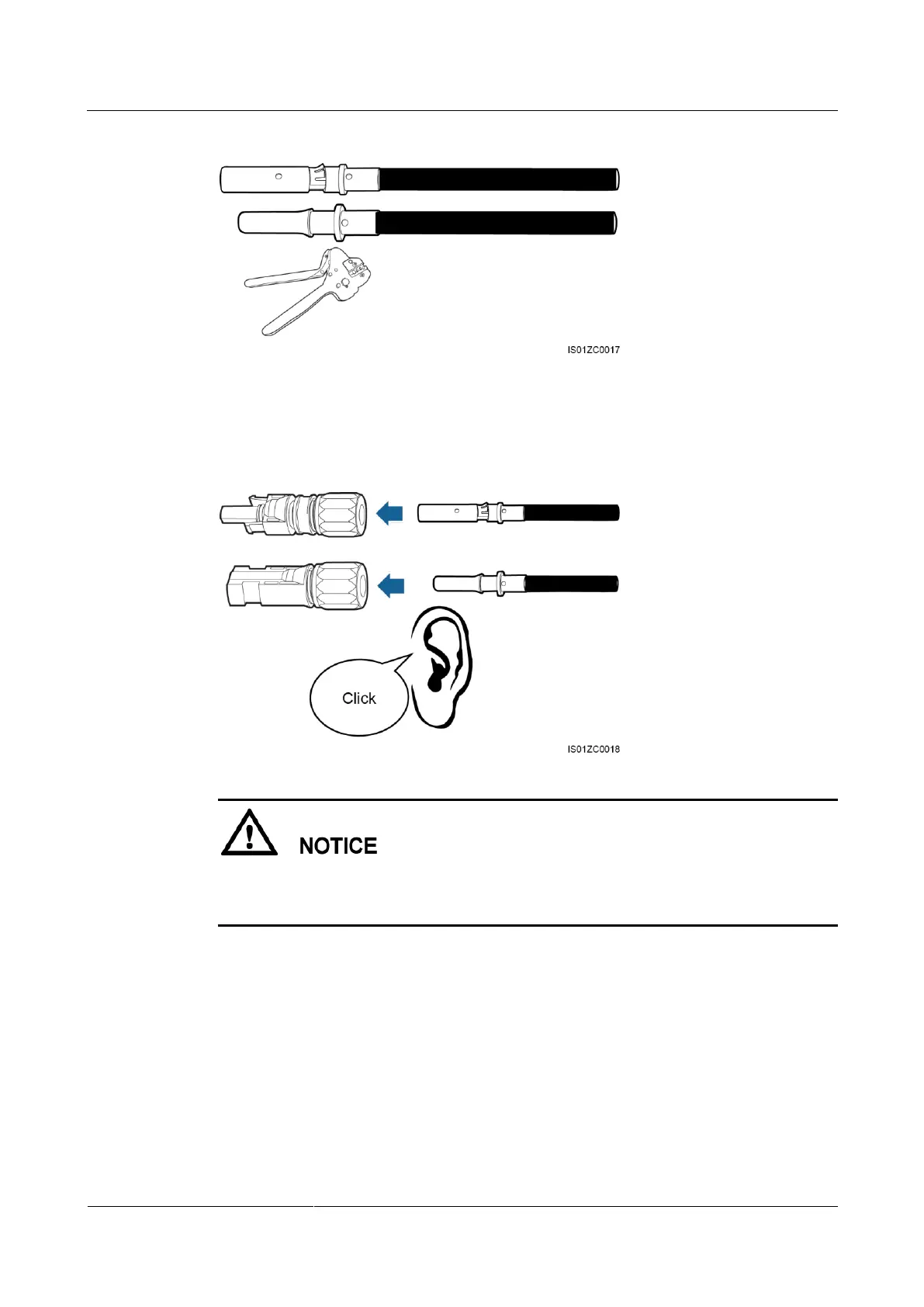

Figure 5-20 Crimping a metal terminal
Step 4 Insert the crimped positive and negative power cables into the corresponding insulation
housings until they snap into place, as shown in Figure 5-21.
Figure 5-21 Engaging metal terminals
After inserting the crimped areas of the positive and negative power cables into the
corresponding insulation housings, ensure that the cables are in position by checking for
resistance when a slight pull is applied.
Step 5 Reinstall cable glands on positive and negative connectors and rotate them against the
insulation covers.
It is recommended that you secure the nut by using removal wrenches, as shown in Figure
5-22.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
