Huawei SUN2000-3KTL-L1 User Manual

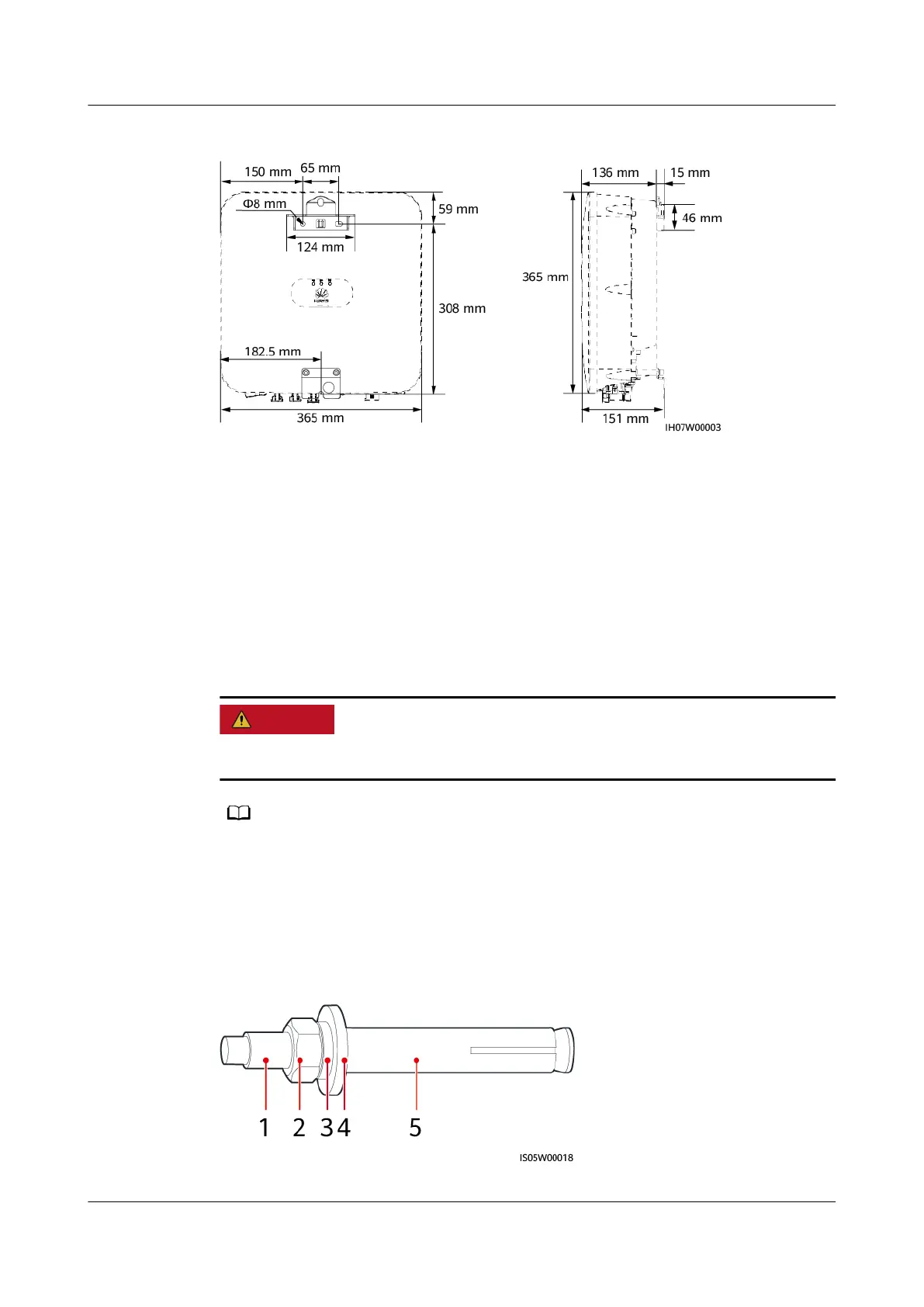

Figure 4-7 Mounting bracket dimensions
4.5.1 Wall-Mounted Installation
Procedure
Step 1 Determine the positions for drilling holes using the
marking-o template. Level
the positions of mounting holes using a level, and mark the positions with a
marker.
Step 2 Secure the mounting bracket.
D ANGER
When drilling holes, avoid the water pipes and power cables buried in the wall.
NO TE
● M6x60 expansion bolts are delivered with the SUN2000. If the length and amount of the
bolts do not meet installation requirements, prepare M6 stainless steel expansion bolts
by yourself.
● The expansion bolts delivered with the inverter are used for solid concrete walls. For
other types of walls, prepare bolts by yourself and ensure that the wall meets the load
bearing requirements of the inverter.
Figure 4-8 Expansion bolt composition
SUN2000-(2KTL-6KTL)-L1
User Manual 4 System Installation
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 31

Huawei SUN2000-3KTL-L1 Specifications

General

Max. efficiency	98.4%
Max. input voltage	600 V
Nominal output power	3000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Operating temperature range	-25°C to +60°C
Nominal AC voltage	220 V / 230 V / 240 V
MPPT voltage range	90 V - 560 V
Rated input voltage	360 V
Number of MPPTs	2
Cooling	Natural Convection
Protection degree	IP65
Rated output voltage	220 V / 230 V / 240 V
Output frequency	50 Hz / 60 Hz
Power factor	0.8 leading ... 0.8 lagging
THDi	<3%
Efficiency	98.4%
Warranty	10 years
Max. apparent AC power	3300 VA
Max. output power	3300 W
