7.1.3 Creating a PV Plant and a User

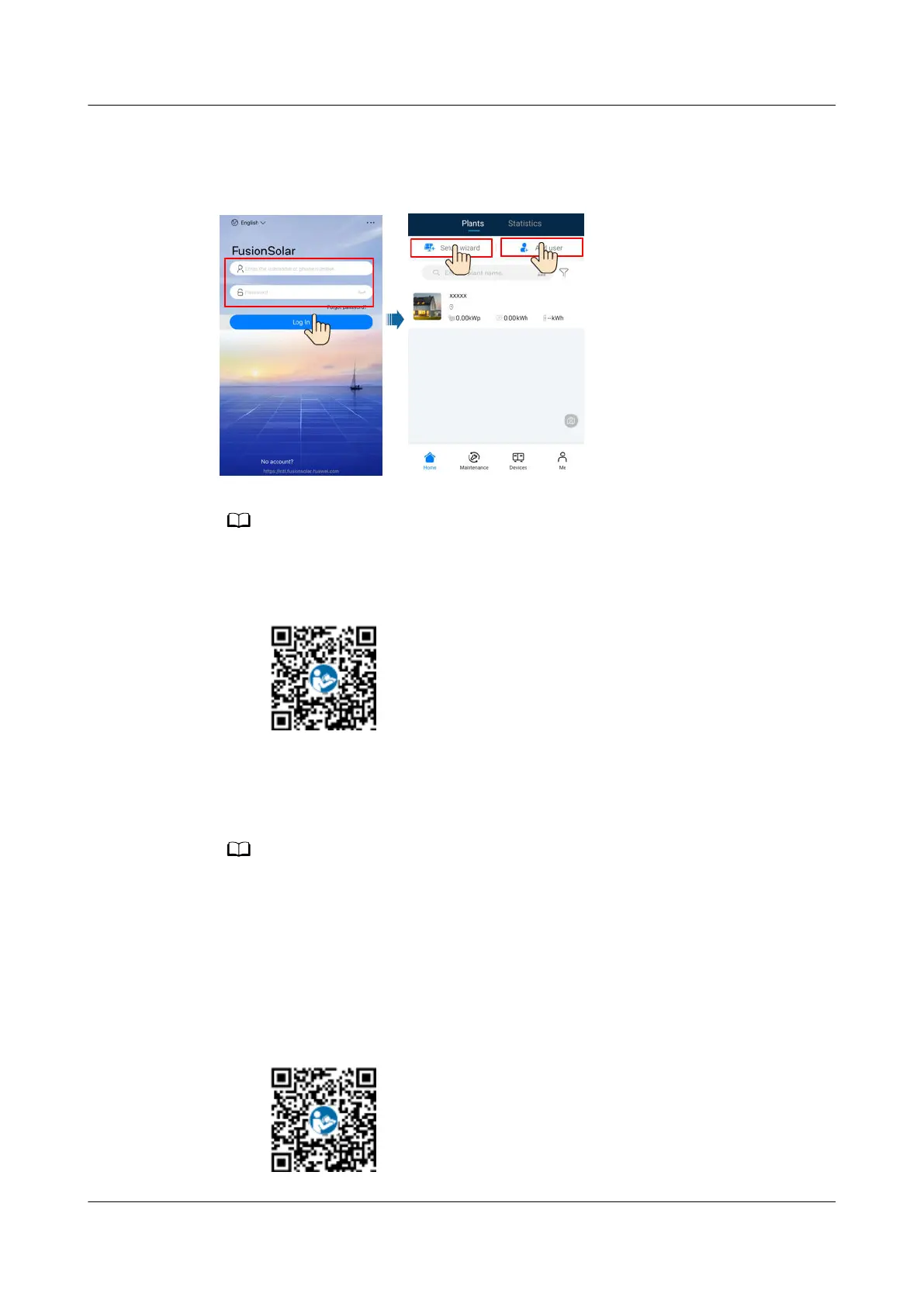

Figure 7-5 Creating a PV plant and a user
NO TE
● In the quick settings, the grid code is set to N/A by default (automatic startup is not
supported). Set the grid code based on the area where the PV plant is located.
● For details about how to use the site deployment wizard, see FusionSolar App Quick
Guide . You can scan the QR code to download the quick guide.
7.1.4 (Optional) Setting the Physical Layout of the Smart PV
Optimizers
NO TE
● If smart PV optimizers are congured for PV strings, ensure that the smart PV
optimizers have been successfully connected to the SUN2000 before performing the
operations in this section.
● Check that the SN labels of smart PV optimizers are correctly attached to the physical
layout template.
● Take and save a photo of the physical layout template. Keep your phone parallel to the
template and take a photo in landscape mode. Ensure that the four positioning points in
the corners are in the frame. Ensure that each QR code is attached within the frame.
● For details about the physical layout of smart PV optimizers, see
FusionSolar App
Quick Guide . You can scan the QR code to download the quick guide.
SUN2000-(2KTL-6KTL)-L1
User Manual 7 Man-Machine Interaction
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 71

Huawei SUN2000-3KTL-L1 Specifications

General

Max. efficiency	98.4%
Max. input voltage	600 V
Nominal output power	3000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Operating temperature range	-25°C to +60°C
Nominal AC voltage	220 V / 230 V / 240 V
MPPT voltage range	90 V - 560 V
Rated input voltage	360 V
Number of MPPTs	2
Cooling	Natural Convection
Protection degree	IP65
Rated output voltage	220 V / 230 V / 240 V
Output frequency	50 Hz / 60 Hz
Power factor	0.8 leading ... 0.8 lagging
THDi	<3%
Efficiency	98.4%
Warranty	10 years
Max. apparent AC power	3300 VA
Max. output power	3300 W
