Huawei SUN2000-3KTL-L1 User Manual

NO TICE
● Since the output of the PV string connected to the SUN2000 cannot be
grounded, ensure that the PV module output is well insulated to ground.
● During the installation of PV strings and the SUN2000, the positive or negative
terminals of PV strings may be short-circuited to ground if the power cable is
not properly installed or routed. In this case, an AC or DC short circuit may
occur and damage the SUN2000. The caused device damage is not covered
under any warranty or service agreement.

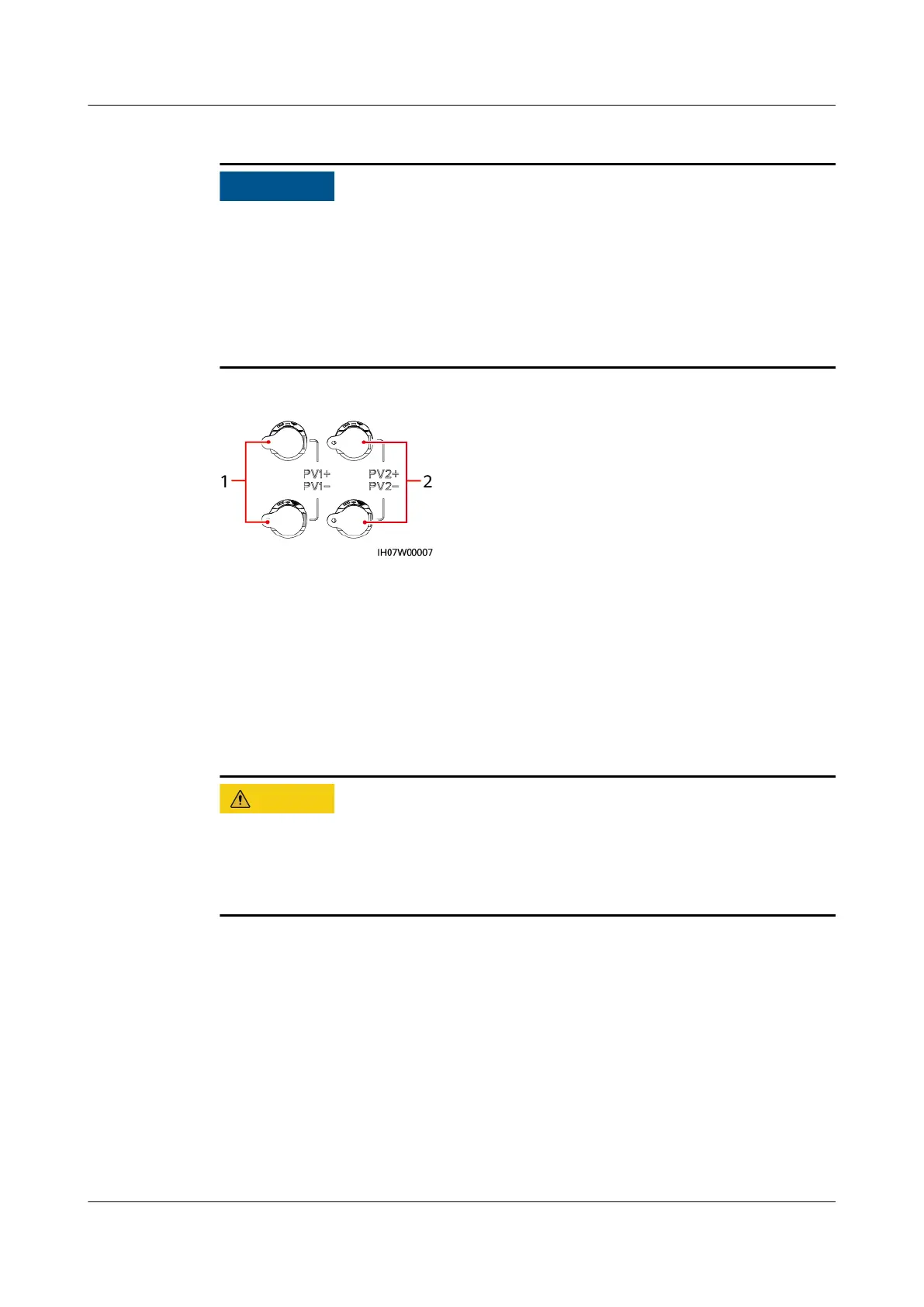

Figure 5-13 DC input terminals
(1) Terminals of DC input 1 (2) Terminals of DC input 2
Procedure
Step 1 Assemble a DC connector.
CA UTION
Use the Staubli MC4 positive and negative metal terminals and DC connectors
delivered with the SUN2000. Using incompatible positive and negative metal
terminals and DC connectors may result in serious consequences. The caused
device damage is not covered under any warranty or service agreement.
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 53

Huawei SUN2000-3KTL-L1 Specifications

General

Max. efficiency	98.4%
Max. input voltage	600 V
Nominal output power	3000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Operating temperature range	-25°C to +60°C
Nominal AC voltage	220 V / 230 V / 240 V
MPPT voltage range	90 V - 560 V
Rated input voltage	360 V
Number of MPPTs	2
Cooling	Natural Convection
Protection degree	IP65
Rated output voltage	220 V / 230 V / 240 V
Output frequency	50 Hz / 60 Hz
Power factor	0.8 leading ... 0.8 lagging
THDi	<3%
Efficiency	98.4%
Warranty	10 years
Max. apparent AC power	3300 VA
Max. output power	3300 W
