Huawei SUN2000-3KTL-L1 User Manual

NO TICE
● Keep the DC input PV+ cable and PV– cable close to each other.
● Cables with high rigidity, such as armored cables, are not recommended as DC
input power cables, because poor contact may be caused by the bending of the
cables.
● Before assembling DC connectors, label the cable polarities correctly to ensure
correct cable connections.
● After crimping the positive and negative metal terminals, pull the DC input
power cables back to ensure that they are connected securely.
● Insert the crimped metal terminals of the positive and negative power cables
into the appropriate positive and negative connectors. Then pull back the DC
input power cables to ensure that they are connected securely.

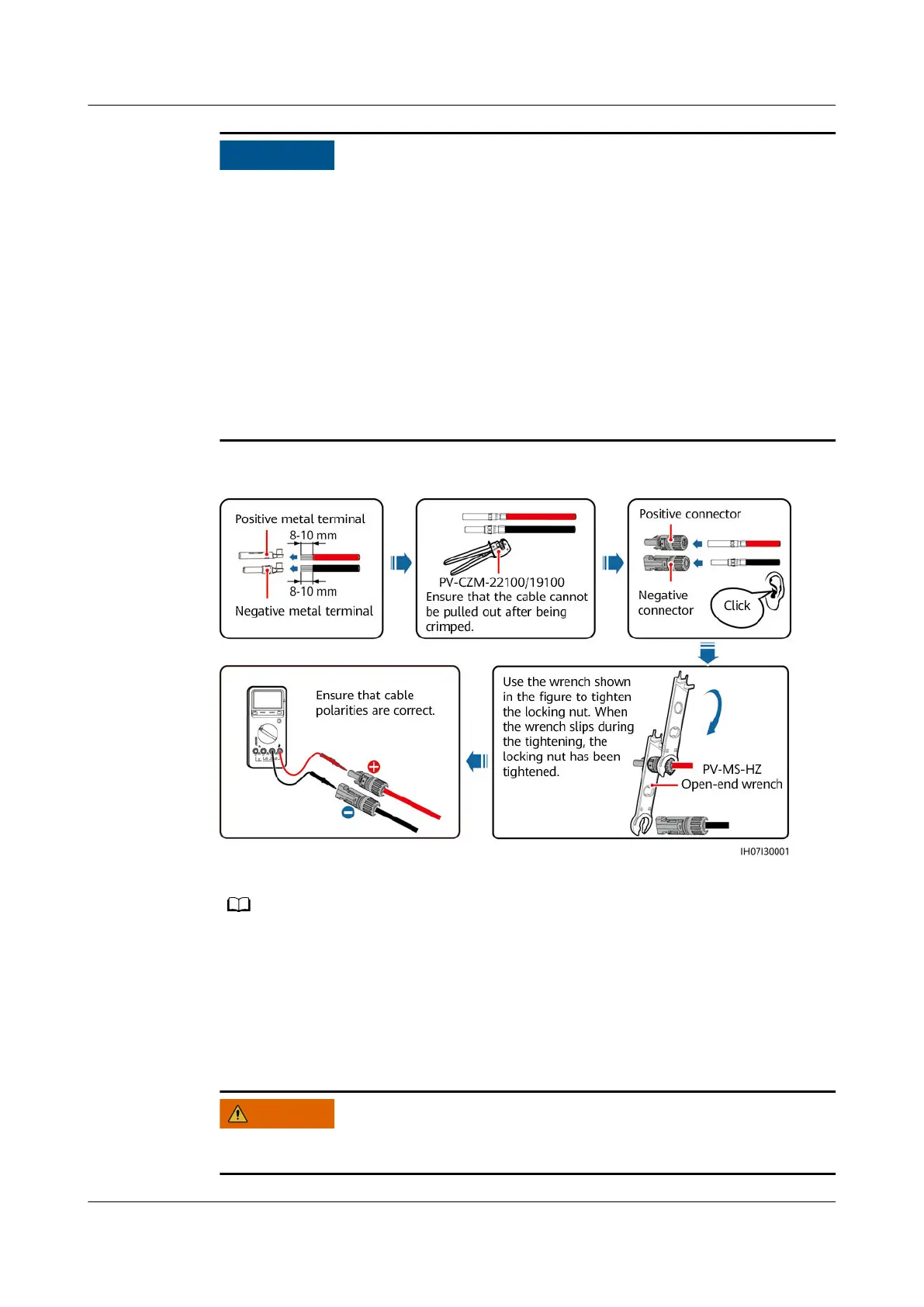

Figure 5-14 Assembling a DC connector
NO TE
● If the PV string is not congured with an optimizer, use a multimeter to measure the
voltage at the DC position. The multimeter must have a DC voltage range of at least
600 V. If the voltage is a negative value, the DC input polarity is incorrect and needs
correction. If the voltage is greater than 600 V, too many PV modules are congured to
the same string. Remove some PV modules.
● If the PV string is congured with an optimizer, check the cable polarity by referring to
the Smart PV optimizer quick guide.
WARNING
Before performing Step 2, ensure that the DC switch is set to OFF.
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 54

Huawei SUN2000-3KTL-L1 Specifications

General

Max. efficiency	98.4%
Max. input voltage	600 V
Nominal output power	3000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Operating temperature range	-25°C to +60°C
Nominal AC voltage	220 V / 230 V / 240 V
MPPT voltage range	90 V - 560 V
Rated input voltage	360 V
Number of MPPTs	2
Cooling	Natural Convection
Protection degree	IP65
Rated output voltage	220 V / 230 V / 240 V
Output frequency	50 Hz / 60 Hz
Power factor	0.8 leading ... 0.8 lagging
THDi	<3%
Efficiency	98.4%
Warranty	10 years
Max. apparent AC power	3300 VA
Max. output power	3300 W
