Huawei SUN2000-3KTL-M1 Series User Manual

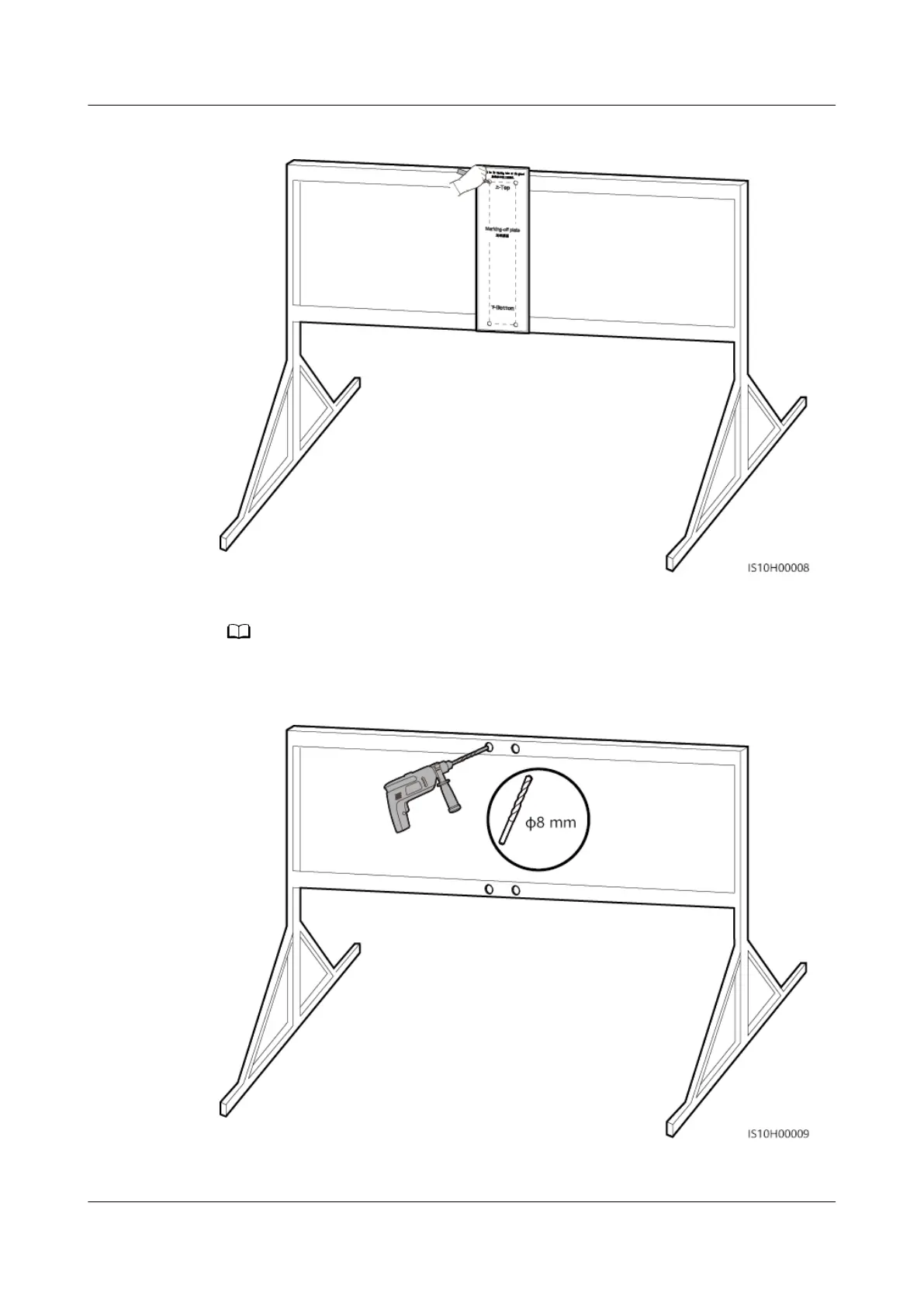

Figure 4-13 Determining the positions for drilling holes
Step 2 Drill holes using a hammer drill.
NO TE
You are advised to apply anti-rust paint on the hole positions for protection.
Figure 4-14 Drilling holes
Step 3 Secure the mounting bracket.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 4 Installation
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 35

Huawei SUN2000-3KTL-M1 Series Specifications

General

Max. efficiency	98.4%
European efficiency	97.8%
Rated AC output power	3000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Operating temperature range	-25°C to +60°C
Topology	Transformerless
Protection Degree	IP65
Number of MPP Trackers	2
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural Convection
Max. DC Power	4500 W
Max. Input Current	11 A
Power Factor	0.8 leading - 0.8 lagging
Max. apparent power	3300 VA
AC output voltage	220 V / 230 V / 240 V
