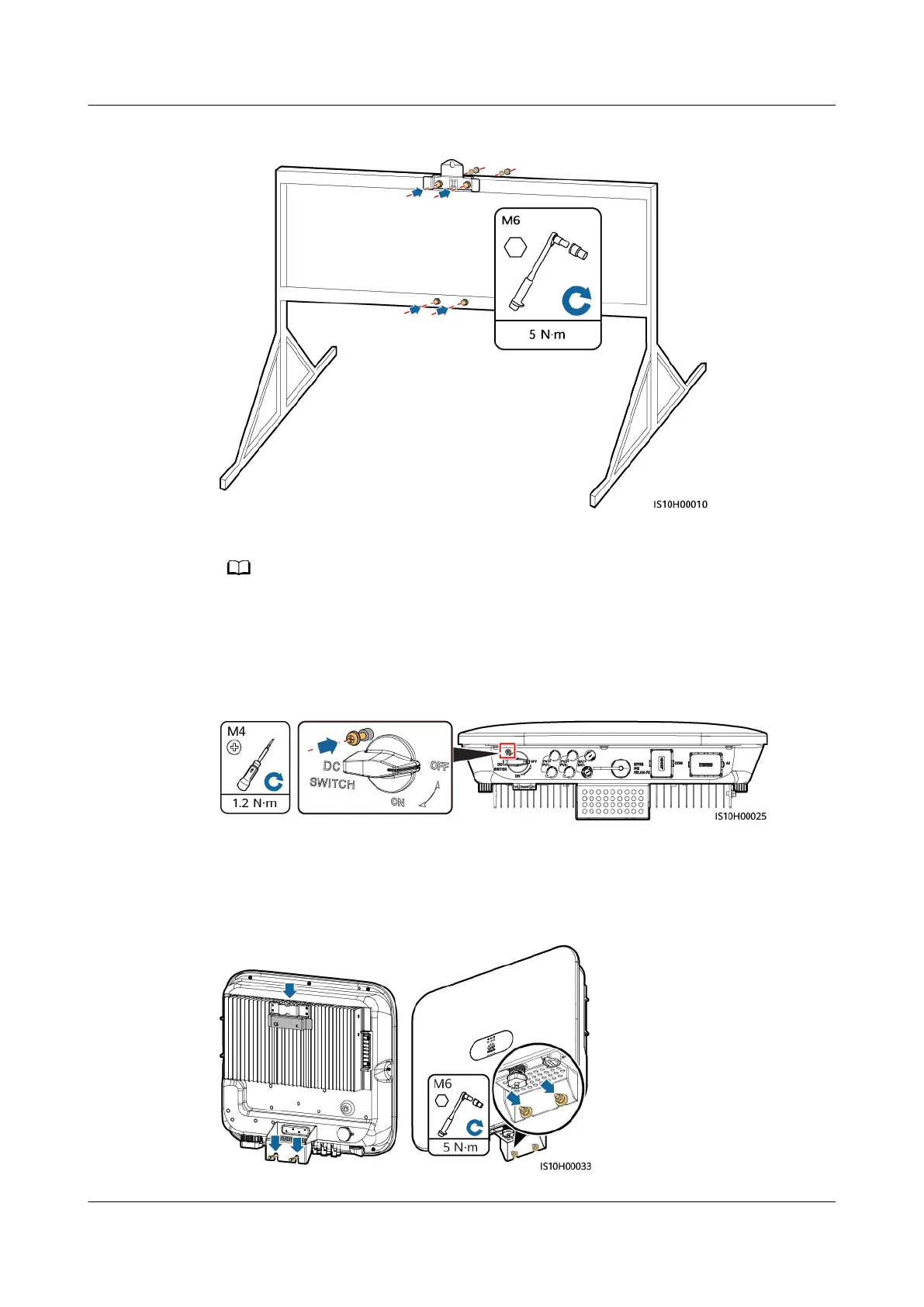

Figure 4-15 Securing the mounting bracket
Step 4 (Optional) Install the locking screw for the DC switch.
NO TE
The locking screw for the DC switch is delivered with the SUN2000. According to the
Australian standard, the locking screw is used to secure the DC switch to prevent the
SUN2000 from being started by mistake.
For the model used in Australia, perform this step based on the local standards.
Figure 4-16 Installing the locking screw for the DC switch
Step 5 Install the SUN2000 onto the mounting bracket.
Step 6 Tighten bolt assemblies.
Figure 4-17 Installing a SUN2000
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 4 Installation
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 36
