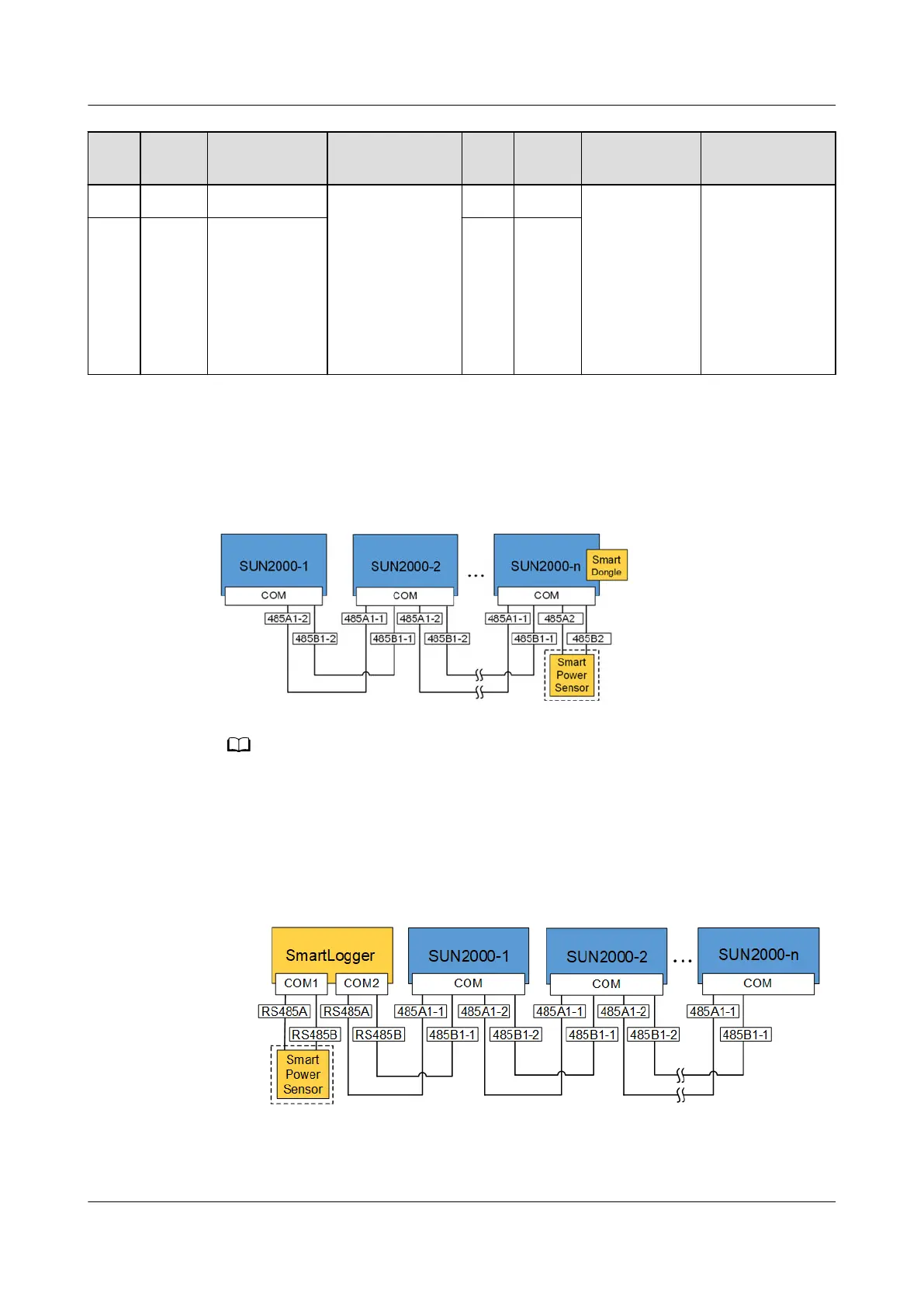

Page #63 background image
Pin Deni
tion
Function Description Pin Deni
tion
Function Description
13 GND GND Used to
connect to the
rapid shutdown
DI signal port
or serve as a
port for the
signal cable of
the NS
protection.
14 DIN4
15 DIN5 Rapid
shutdown
signal+
16 GND
Communication Networking
Smart Dongle Networking Scenario
Figure 5-18 Smart Dongle networking
NO TE
In the Smart Dongle networking scenario, the SmartLogger cannot be connected.
The Smart Power Sensor is necessary for export limitation. Select the Smart Power
Sensor according to the actual project.
The Smart Power Sensor and Smart Dongle need to be connected to the same inverter.
SmartLogger Networking Scenario
Figure 5-19 SmartLogger networking
SUN2000-(8KTL-20KTL)-M2
User Manual 5 Electrical Connections
Issue 11 (2023-02-07) Copyright © Huawei Technologies Co., Ltd. 55
