SUN2000L-(2KTL-5KTL)
User Manual
2 Product Overview
Issue 02 (2017-12-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9

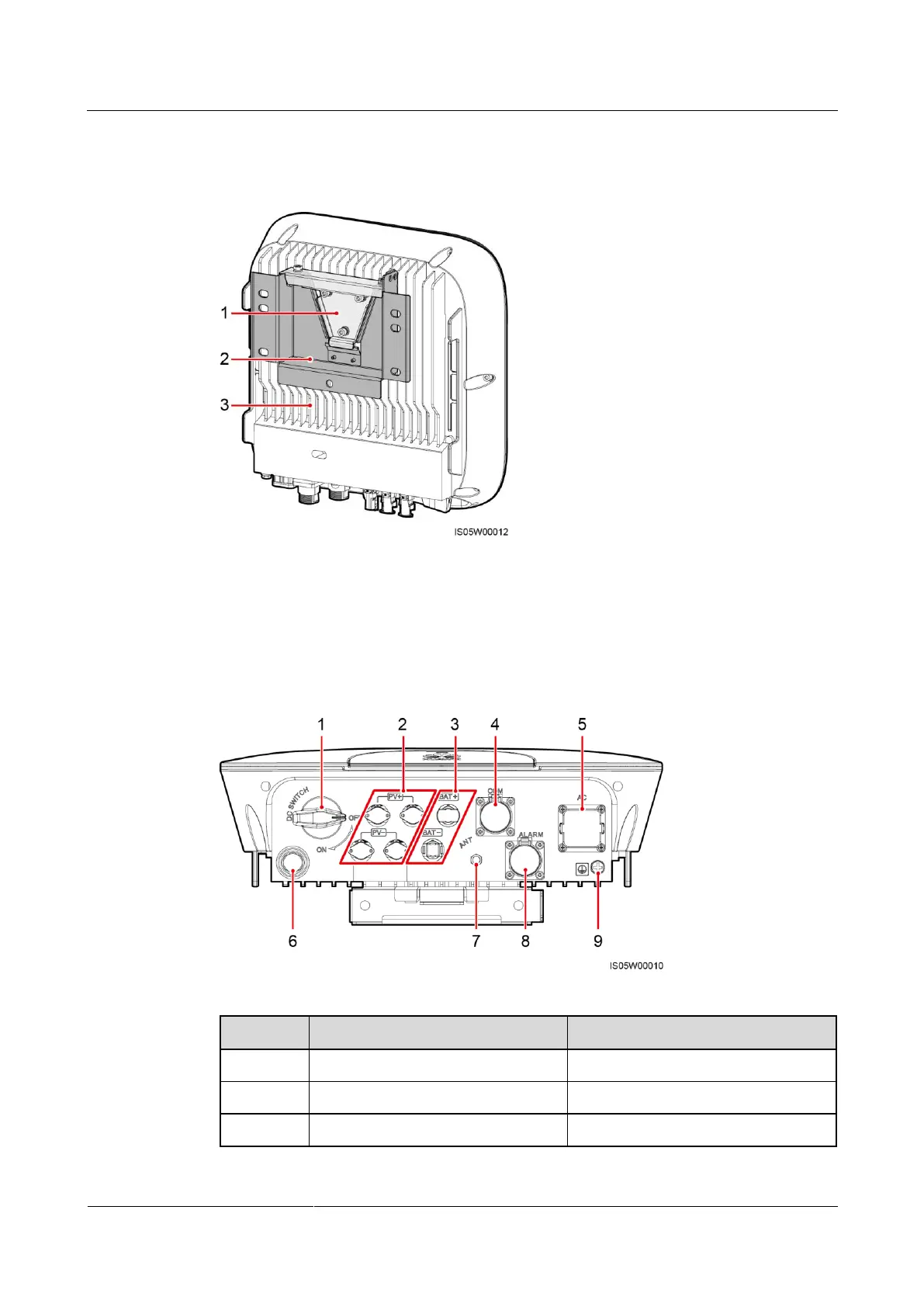

Rear View
Figure 2-5 Rear view
(1) Mounting plate
(2) Mounting bracket
(3) Heat sink
Bottom View
Figure 2-6 Bottom view
No.
Component
Silk Screen
1
DC switch
DC SWITCH
2
DC input terminal
PV+/PV–
3
Battery terminal
BAT+/BAT–
