Huawei SUN2000L - Setting Grid Parameters

SUN2000L-(2KTL-5KTL)
User Manual
7 Operations on the Local FusionHome App
Issue 02 (2017-12-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
91

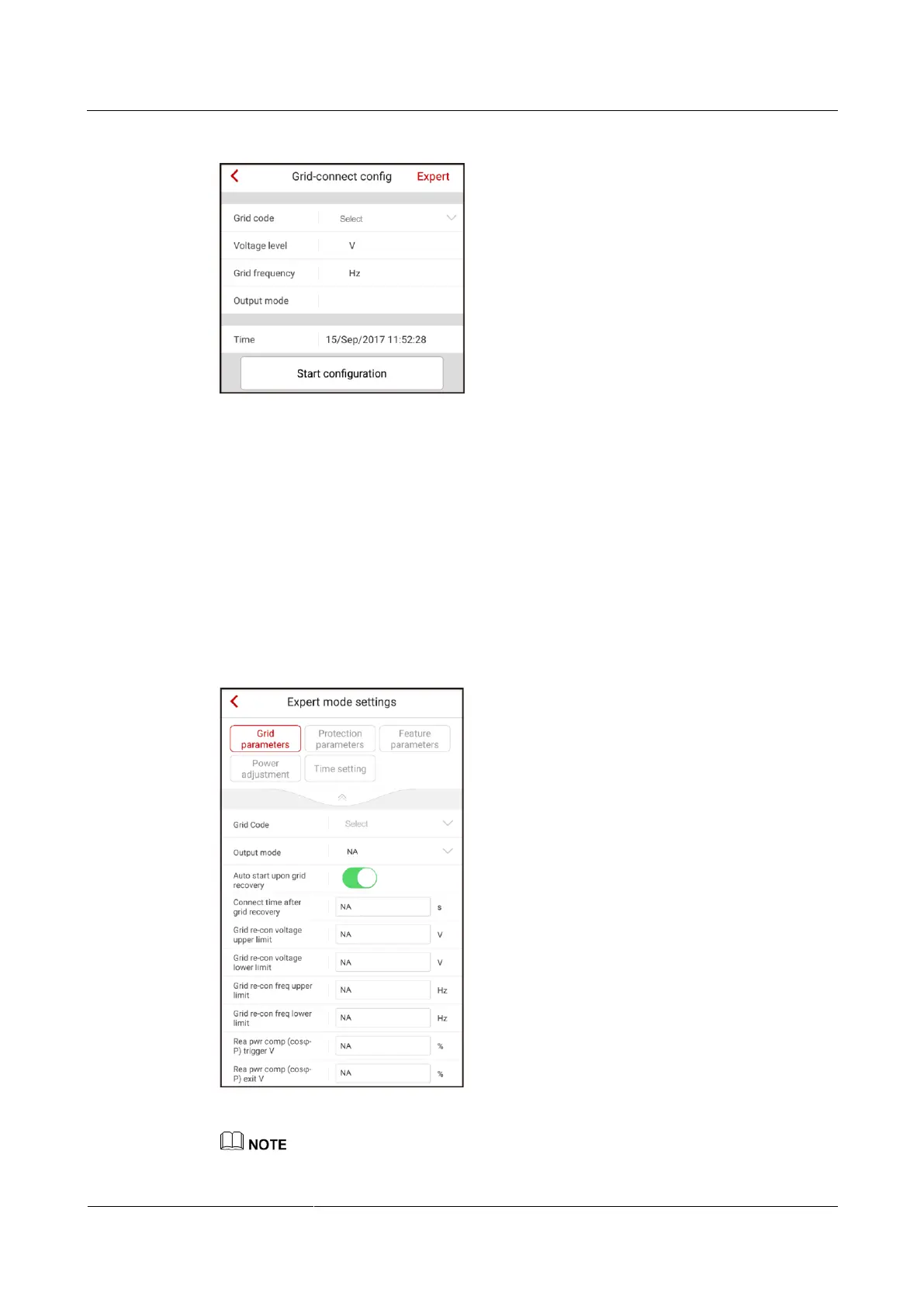

Figure 7-37 Grid-connect config
Expert Mode
To set grid parameters, protection parameters, feature parameters, power adjustment
parameters, and time in expert mode, choose Grid-connect config > Expert from the
Operation console screen.
7.4.5.1 Setting Grid Parameters
To set grid parameters, choose Grid-connect config > Expert > Grid parameters from the
Operation console screen.
Figure 7-38 Grid parameters

Vn represents the rated voltage and Fn represents the rated frequency.
