Ensure that the cable jacket is inside the connector.

Ensure that the exposed core wire is totally inserted into the cable hole.

Ensure that AC terminations provide firm and solid electrical connections. Failing to do so
may cause SUN2000L malfunction and damage to its AC connectors.

Ensure that the cable is not twisted.

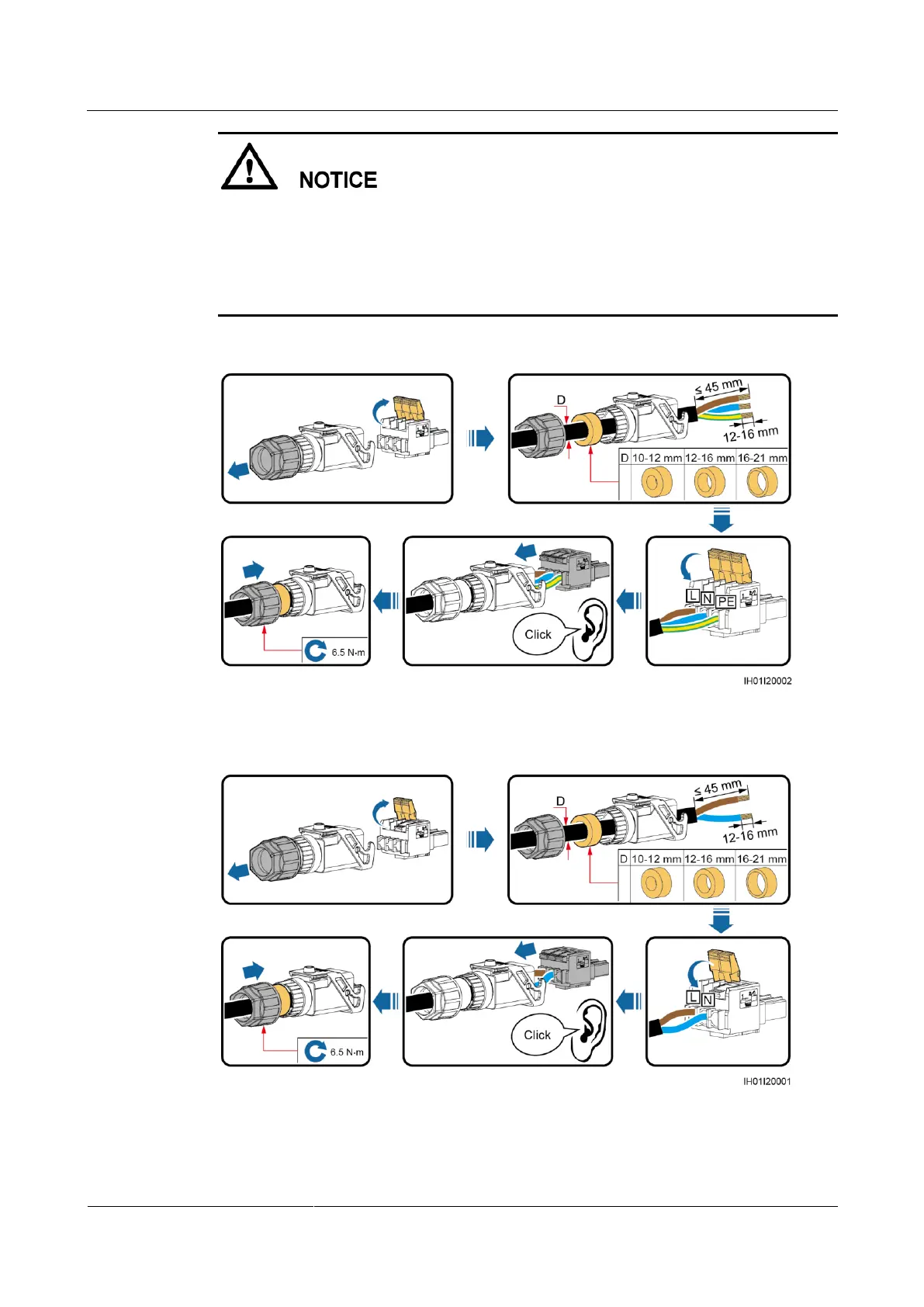

Figure 5-5 Assembling an AC connector (three-core wire)
Figure 5-6 Assembling an AC connector (two-core wire)
