SUN2000L-(2KTL-5KTL)
User Manual
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

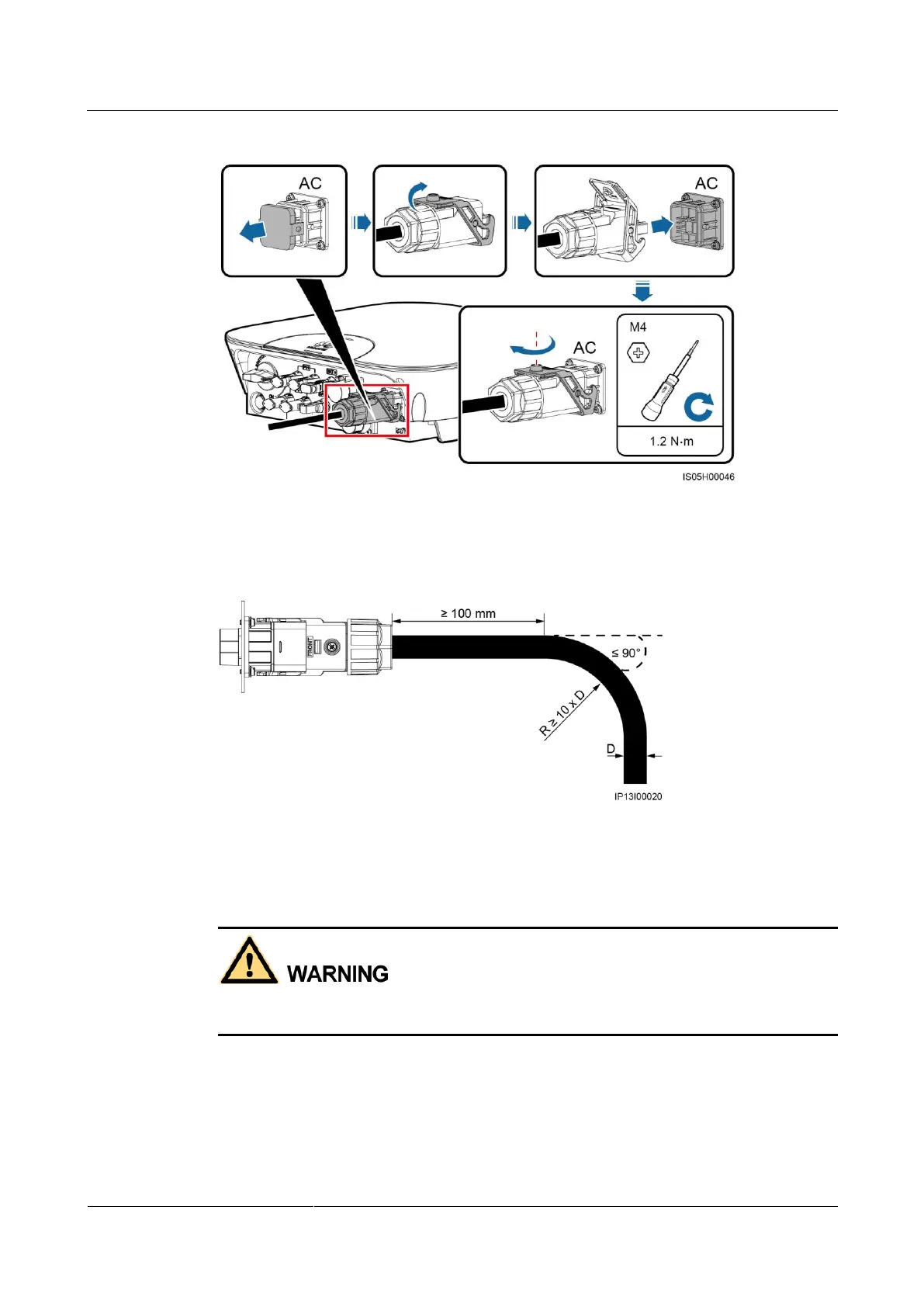

Figure 5-8 Securing an AC connector
Step 3 Check the route of the AC output power cable.
Figure 5-9 Cable route
----End
Follow-up Procedure
Before removing the AC connector, ensure that the DC switch at the bottom of the SUN2000L
and all the switches connecting to the SUN2000L are OFF.
To remove the AC connector from the SUN2000L, perform the operations in reverse order.
