SUN2000L-(2KTL-5KTL)
User Manual
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

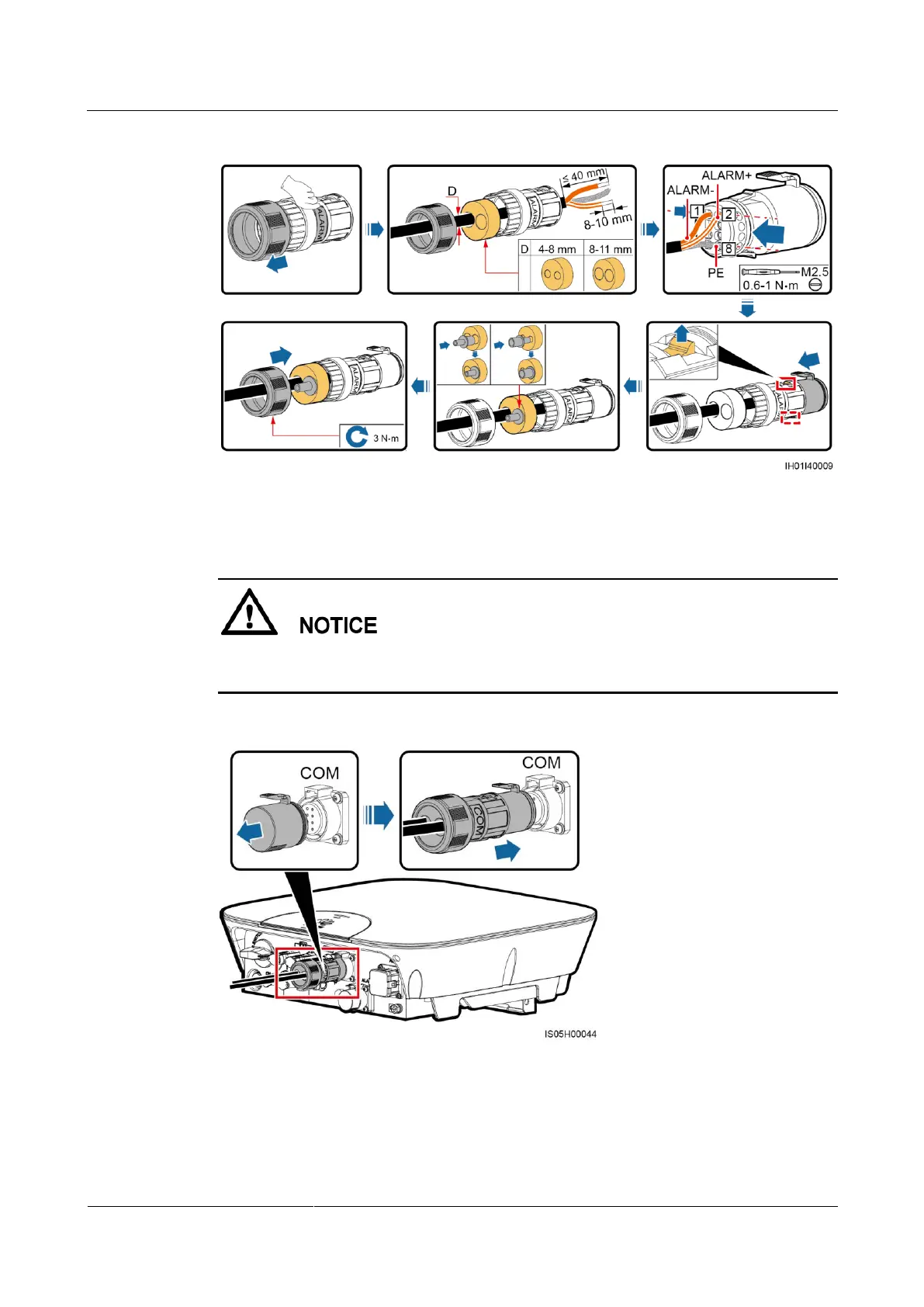

Figure 5-20 Assembling a signal connector (ALARM port)
Step 2 Connect the signal connector to the corresponding port.
Do not confuse the connectors to the COM port and ALARM port.
Ensure that the signal connector is connected securely.
Figure 5-21 Securing a connector (COM port)
