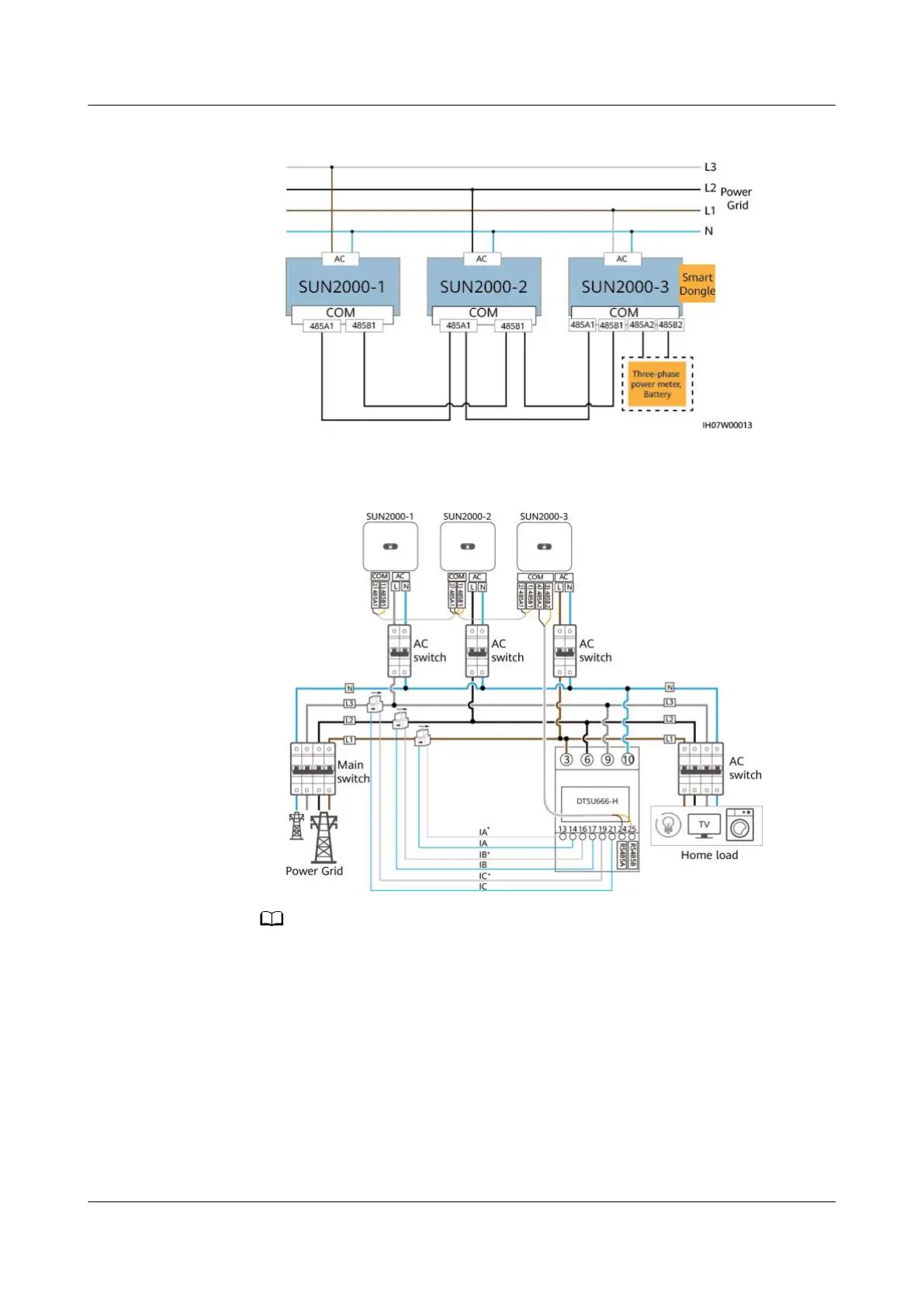

Figure 5-23 Balanced three-phase grid connection
Figure 5-24 Connecting cables to the smart power sensor (balanced
three-phase grid connection)
NO TE
In cascading scenarios, the inverters are required to connect to the management
system through a Smart Dongle.
In the preceding networking, the SUN2000s are cascaded and support the grid-tied
point control function to achieve zero export.
If the SUN2000s requires the grid-tied point control function, they need to be
connected to a smart power sensor.
In the scenario of balanced three-phase grid connection, if the SUN2000s requires
the grid-tied point control function, they need to be connected to a three-phase
smart power sensor to control the total three-phase power.
Only one LG battery is supported, and the LG battery must be connected to the
inverter equipped with the Smart Dongle.
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 04 (2021-04-01) Copyright © Huawei Technologies Co., Ltd. 54
