Procedure
Step 1 Connect signal cables to corresponding signal connectors.
NO TICE
Ensure that the protection layer of the cable is in the connector. The surplus
core should be cut o from the protection layer.
Ensure that the exposed core is totally inserted into the cable hole.
Ensure that the signal cables are connected securely.
Ensure that the cables are not twisted.
If multiple signal cables need to be connected to a single connector, ensure
that the outer diameters of the signal cables are the same.

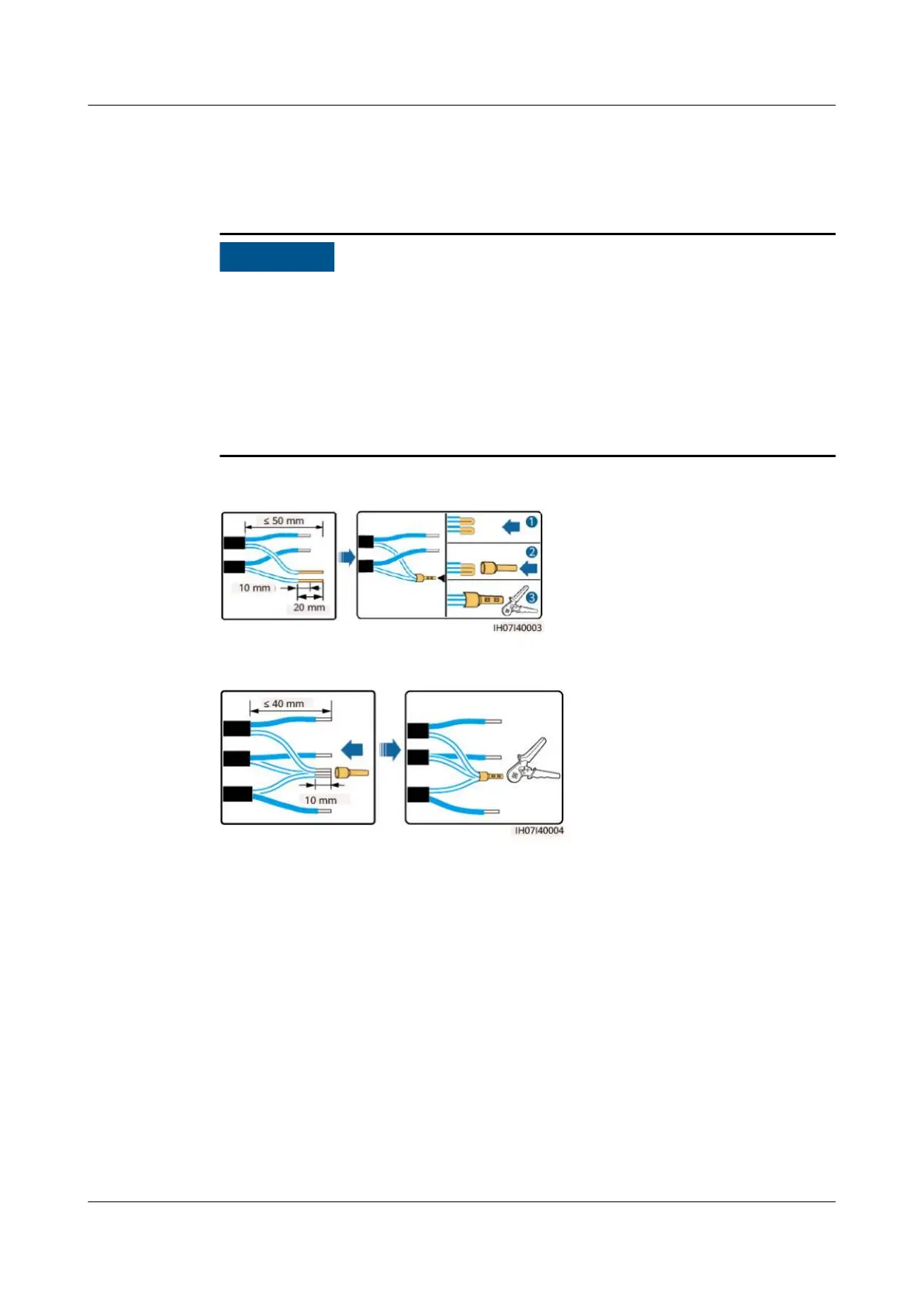

Figure 5-25 Crimping two signal cables
Figure 5-26 Crimping three signal cables
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 04 (2021-04-01) Copyright © Huawei Technologies Co., Ltd. 55
