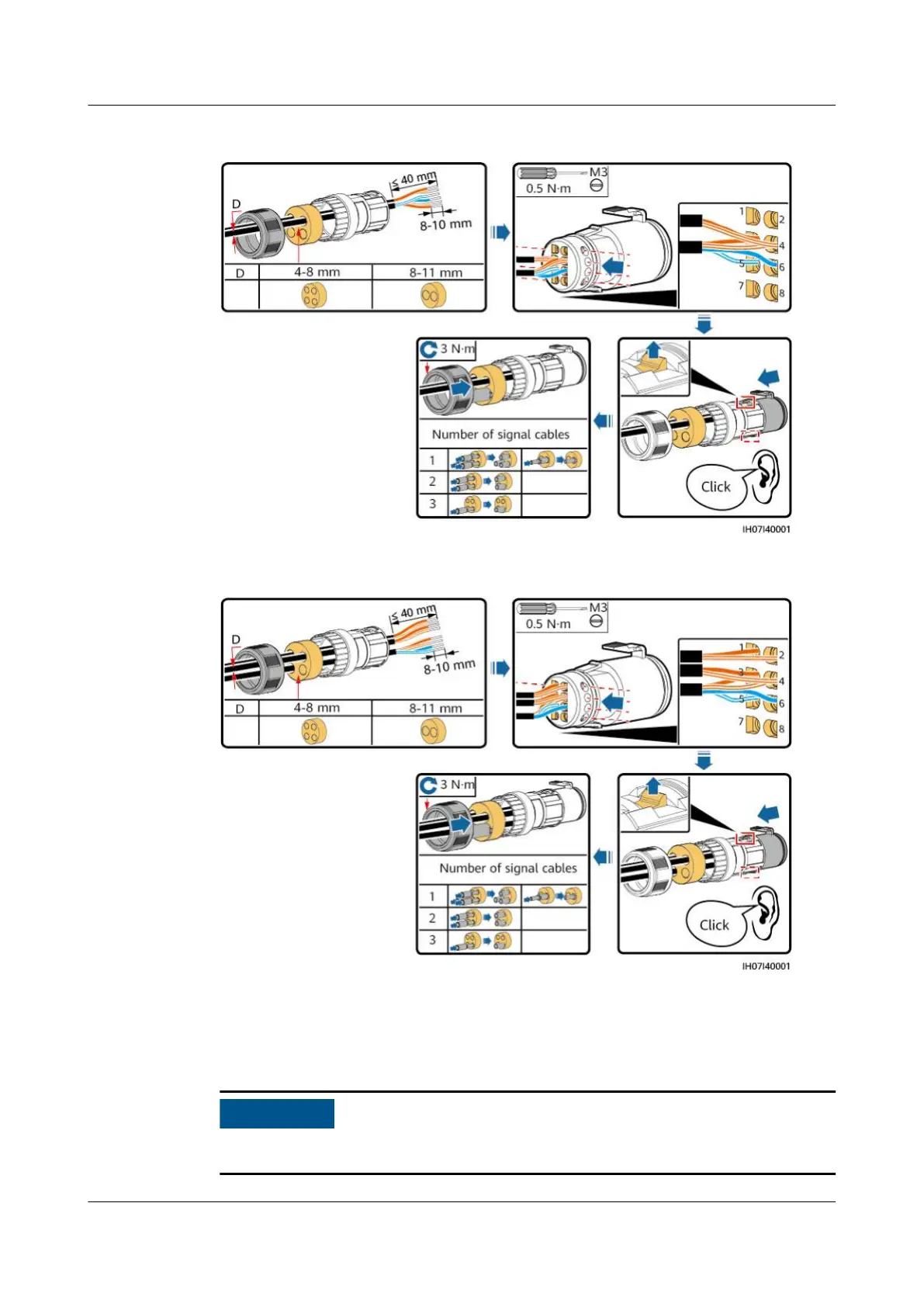

Figure 5-27 Assembling a signal connector (single SUN2000)
Figure 5-28 Assembling a signal connector (SUN2000 cascading)
Step 2 Connect the signal connector to the corresponding port.
Ensure that the signal connector is connected securely.
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 04 (2021-04-01) Copyright © Huawei Technologies Co., Ltd. 56
