Section 3
Wiring Harness

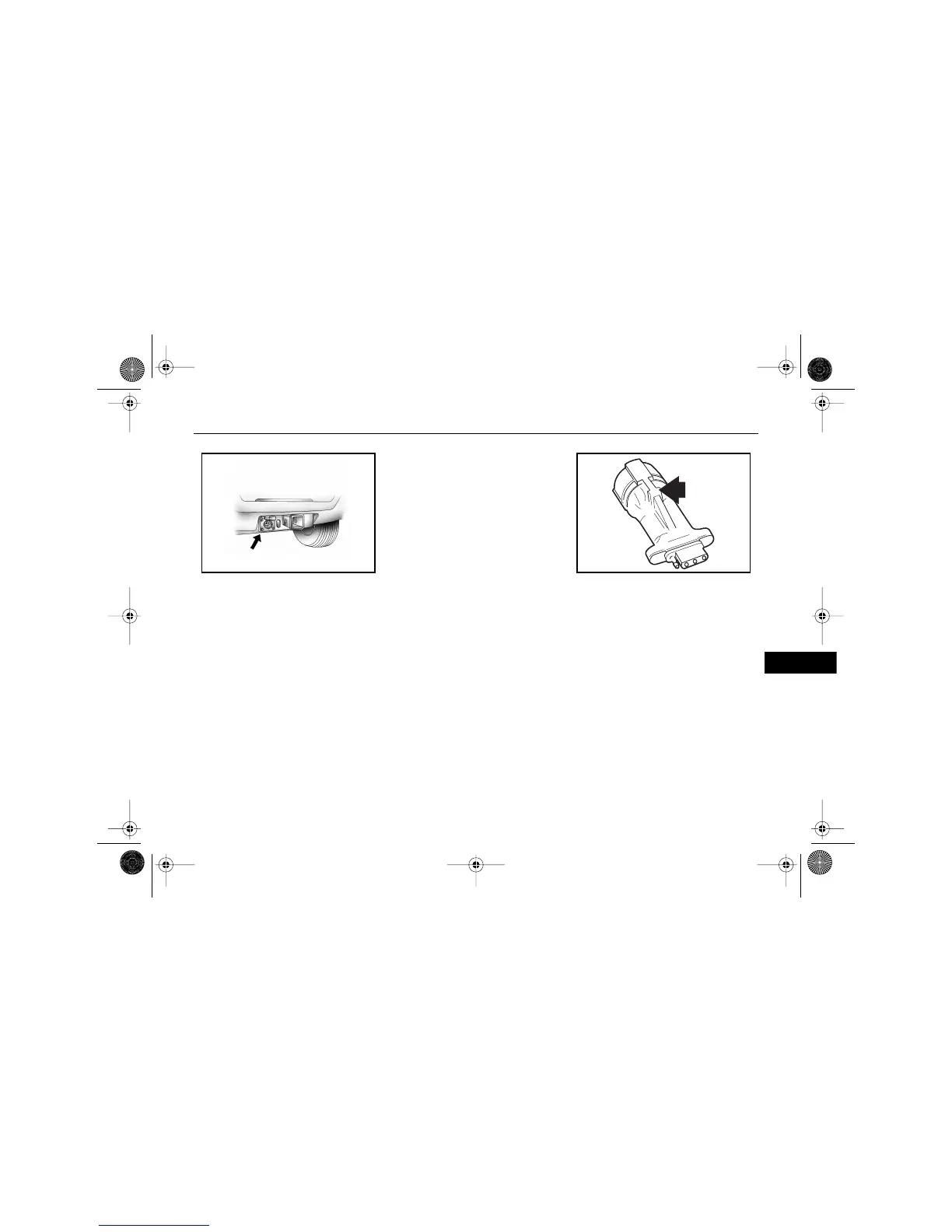

The harness has a 7-pin connector
and is attached to a bracket on the
hitch platform.
The trailering harness contains the
following trailer circuits:
•Yellow: Left stoplight and turn
signal
• Dark Green: Right stoplight
and turn signal
• Brown: Taillights
• White: Ground
• Light Green: Back-up lights
• Red: Battery feed
• Dark Blue: Trailer Brake
If you are charging a remote,
non-vehicle battery, turn on the
headlights to boost the vehicle
system voltage and properly
charge the battery.
Four-Wire Harness Adapter (If
equipped)
If you need to tow a light-duty
trailer with a standard four-way
flat pin connector, an adapter
connector is available through
your dealer.
Hold the adapter with the tab
pointing up.
