Hunter MH37 - LPG System

Figure. 5.2
5.1.2 Fuel Tank Capacity Monitoring
The fuel tank is equipped with a fuel level sending unit
(lower center component Fig. 5.1) which provides an
electrical signal to the fuel gauge to indicate its fill
level.
5.1.3 Fuel Tank Grounding System
The fuel tank and deck fill on your boat are electrically
grounded to the engine negative. This grounding system
is designed to prevent the discharge of static electricity
when fueling your boat. An authorized service technician
should inspect this system at least once each year.
5.1.4 Fuel Gauge
The fuel gauge is mounted on lower left corner of the
safety panel located on the aft lower inboard face of the
starboard cockpit seat (Fig. 5.3).
DA N G E R
! !
Never place yourself near the engine compartment
without proper ventilation first. A spark caused by
power tools or lighting equipment could result in fire
or explosion which could cause personal injury or
death.
W A R N I N G
! !
Fuel leaking from any part of the fuel system can
lead to fire and explosion that can cause serious
bodily injury or death. Inspect system before
fueling.
C AU T I O N
! !
Using the wrong type of fuel will result in severe
damage to the engines. Refer to your engine OEM
manual for fuel recommendations.
DA N G E R
! !
Leaking fuel is a fire and explosion hazard. Personal
injury or death could occur.
The fuel systems aboard your boat consist of two com-
ponents: diesel for the engine and optional generator
assemblies and LPG for the stove assembly. Our discus
-
sion will include the following topics:
Fuel Tank
Fuel Supply Lines and Hoses
Fuel Valves
Fuel Filters
Fueling Your Boat
LPG System
Refer to Fig. 5.10 at the end of this chapter for a fuel
oriented quick reference checklist when boarding your
boat. Also, refer to Fig. 5.11 - 5.12 for overall fuel system
layout illustrations.

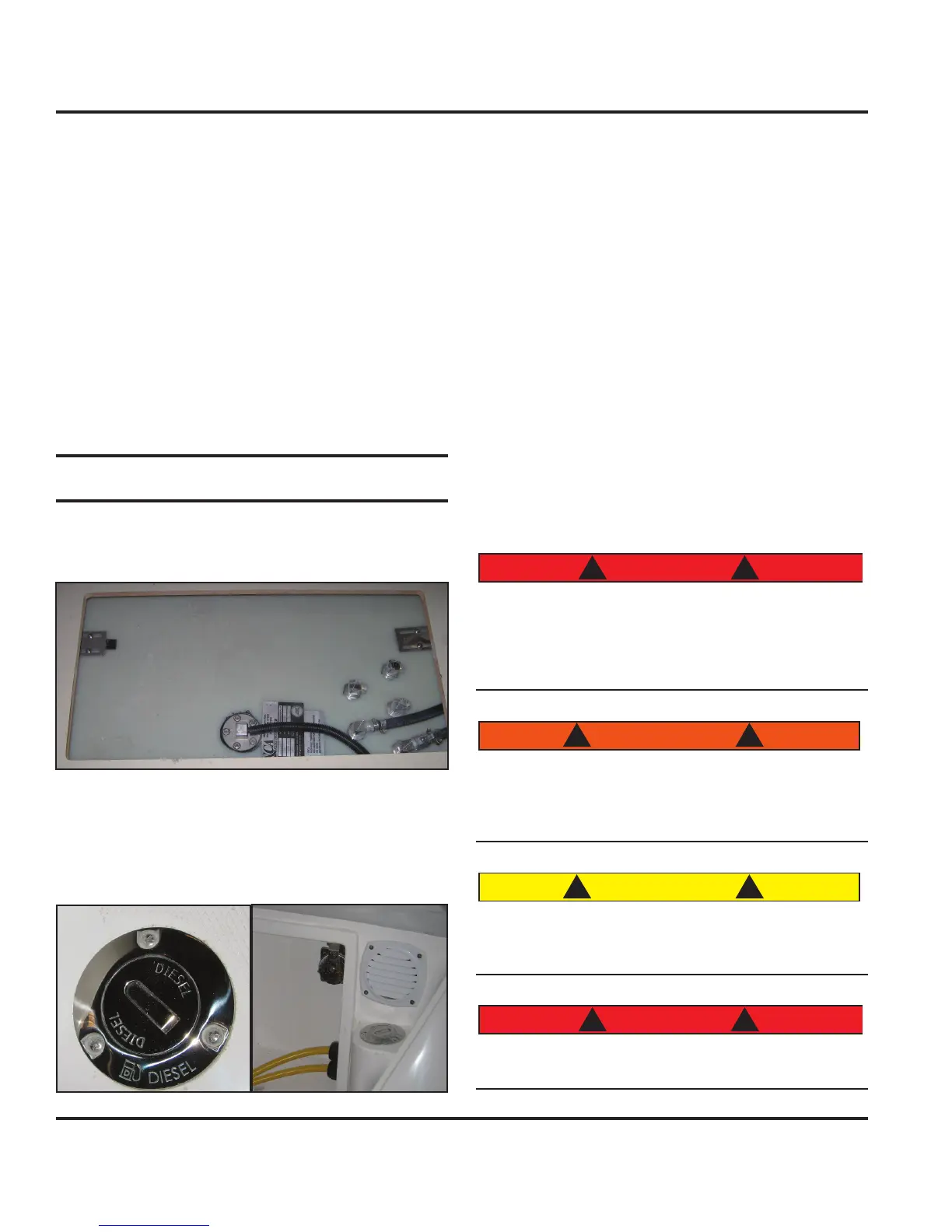

5.1 Fuel Tank
Your boat is equipped with a single 50 US gal (189 liter)
fuel tank located beneath the aft cabin bunk and accessed
through the starboard bunk drop-ins (Fig. 5.1).
Figure. 5.1
5.1.1 Fuel Fill
The fuel tank is filled through the stainless steel deck-fill
fitting located within the transom garage (Fig 5.2).
1.
2.
3.
4.
5.
6.
Fuel Systems
5.1
