DC Electric Systems
7.6
NOTE: Consult the inverter manufacturer’s OEM manual for
inverter operation, care and maintenance.

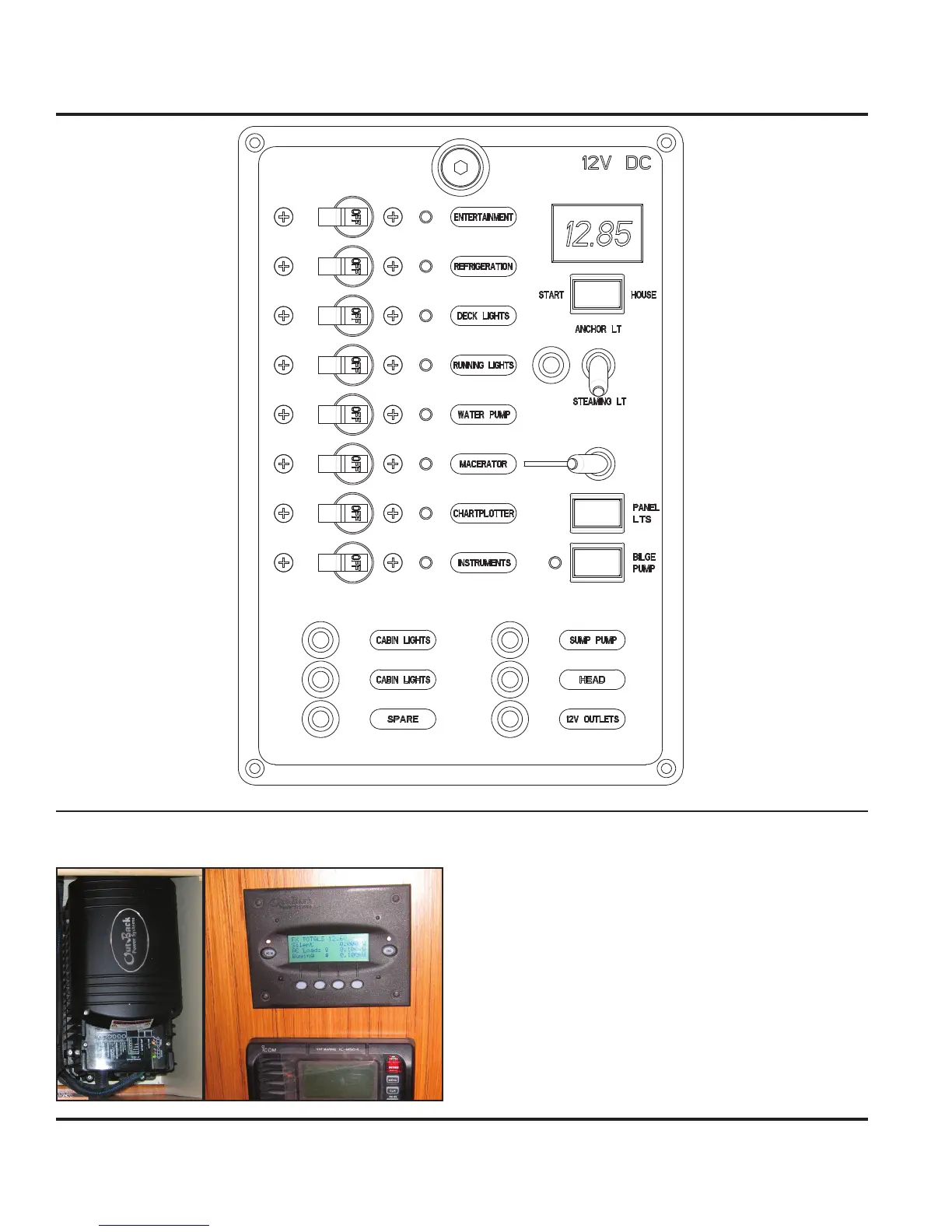

Figure 7.10
Figure 7.11
7.2.8 Engine Control Panel
Although the engine control panel is not a master panel,
it is included in this section given the tight integration of
the engine to the battery banks.
The engine control panel is located on the forward portion
of the pedestal’s instrument console (Fig. 7.12).
Power is provided to the engine control panel by posi-
tioning the battery selector switch(es) on the BSP to the
desired setting. Either position the “Start Battery” switch
Figure 7.9
