15 ELECTRICAL SYSTEM
116
F00361-10
–

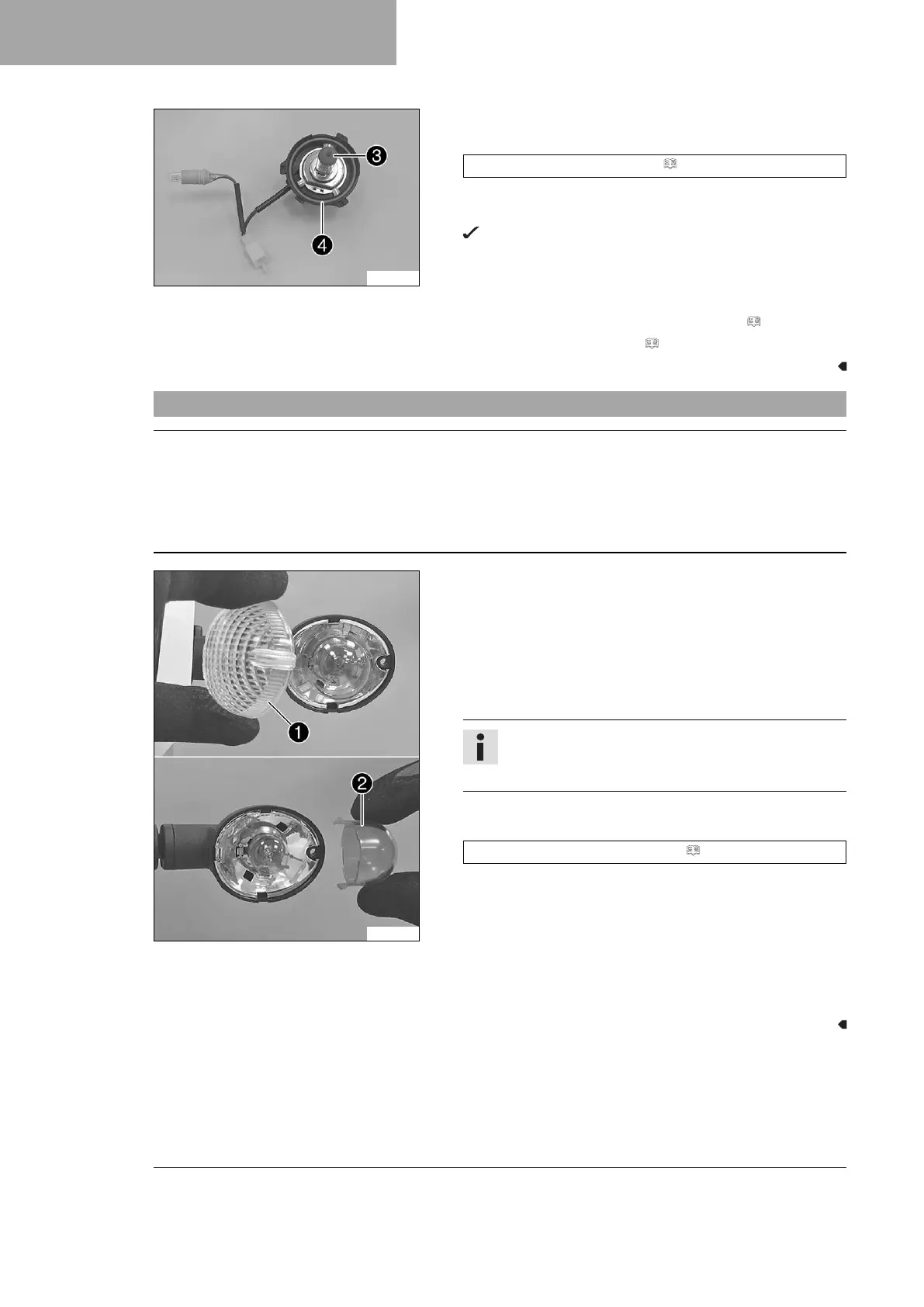

Pull out headlight bulb
3
.
– Insert the new headlight bulb.
Headlight (HS1/socket BX43t) ( p. 148)
– Insert the protection cap with the bulb socket into the reflec-
tor and turn it clockwise all the way.
O-ring
4
is correctly positioned.
– Insert the bulb socket of the parking light into the reflector.
Finishing work
– Install the headlight mask with the headlight. ( p. 114)
– Check the headlight setting. ( p. 117)
15.9 Changing the turn signal bulb (All EU models)
Note
Damage to reflector Grease on the reflector reduces the brightness.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
– Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.
F00362-10
Main work
– Remove the screw on the rear of the turn signal housing.
–
Carefully remove turn signal glass
1
.
–
Lightly squeeze orange cap
2
in the area of the holding lugs
and take it off.
– Press the turn signal bulb lightly into the socket, turn it coun-
terclockwise by about 30°, and take it out of the socket.
Info
Do not touch the reflector with your fingers and keep it
free from grease.
– Press the new turn signal bulb carefully into the socket and
turn it clockwise until it stops.
Turn signal (R10W/socket BA15s) ( p. 148)
– Mount the orange cap.
– Position the turn signal glass.
– Insert the screw and first turn counterclockwise until it
engages in the thread with a small jerk. Tighten the screw
lightly.
Finishing work
– Check that the turn signal system is functioning properly.
