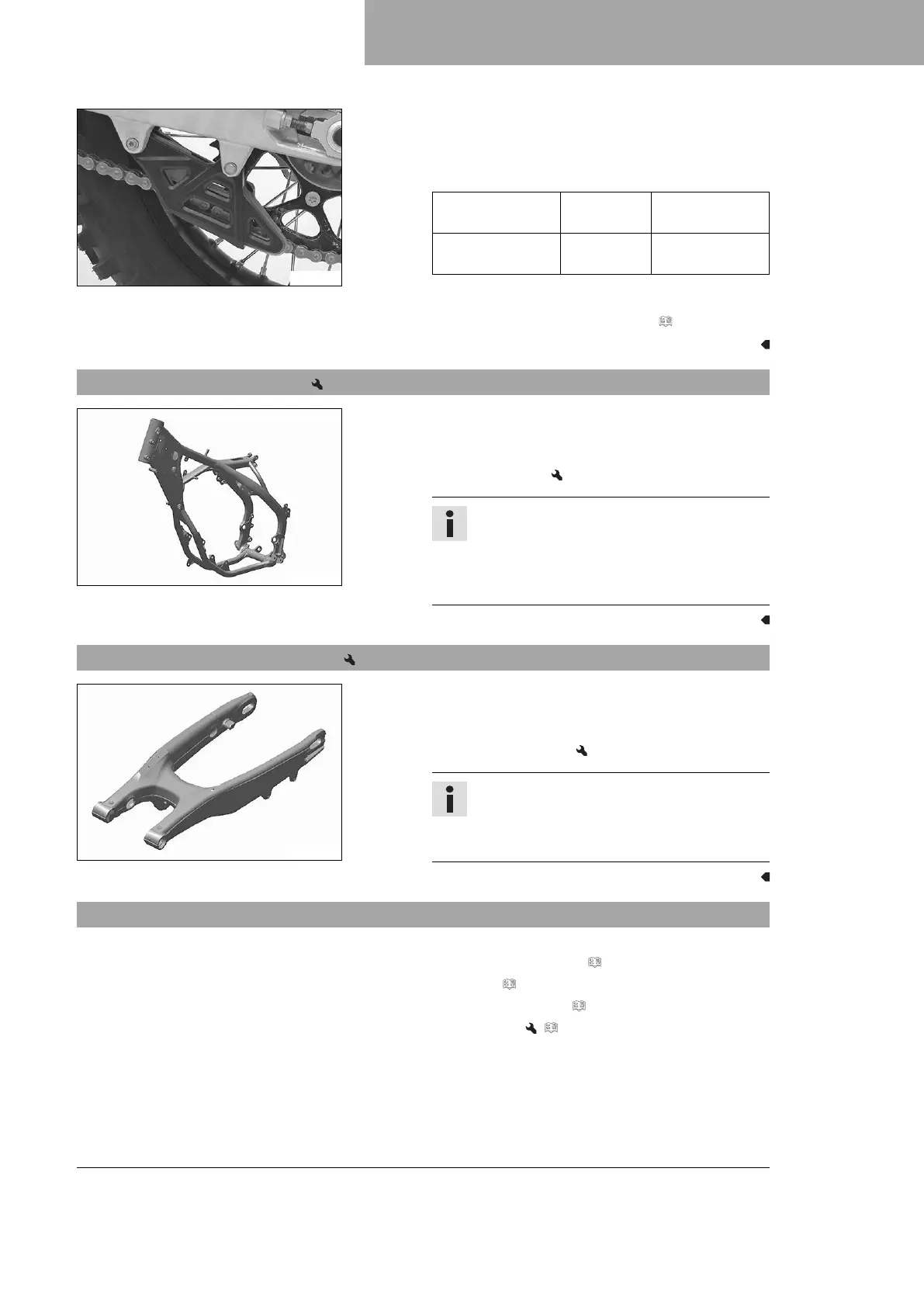

12 SERVICE WORK ON THE CHASSIS
83
F00322-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining
screws, chassis
M6 10 Nm (7.4 lbf ft)
Remaining nuts,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 56)
12.38 Checking the frame
S01339-01
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a
mechanical impact:
– Change the frame.
Info
Always replace a frame that has been
damaged due to a mechanical impact. Repair
of the frame is not authorized by Husqvarna
Motorcycles.
12.39 Checking the swingarm
S01340-01
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or
deformation:
– Change the swingarm.
Info
Always change a damaged swingarm. Repair
of the swingarm is not authorized by Husq-
varna Motorcycles.
12.40 Checking throttle cable routing
Preparatory work
– Remove the air filter box cover. ( p. 69)
– Remove the seat. ( p. 68)
– Remove the right side cover. ( p. 74)
– Remove the fuel tank. ( p. 74)
