17 TUNING THE ENGINE
128
H02349-01
– Start the vehicle at the new height above sea level and switch
off the engine again.
– Wait for at least five seconds.
– Start the vehicle again and check the response of the vehicle.
» If the response has not improved:
– Repeat procedure.

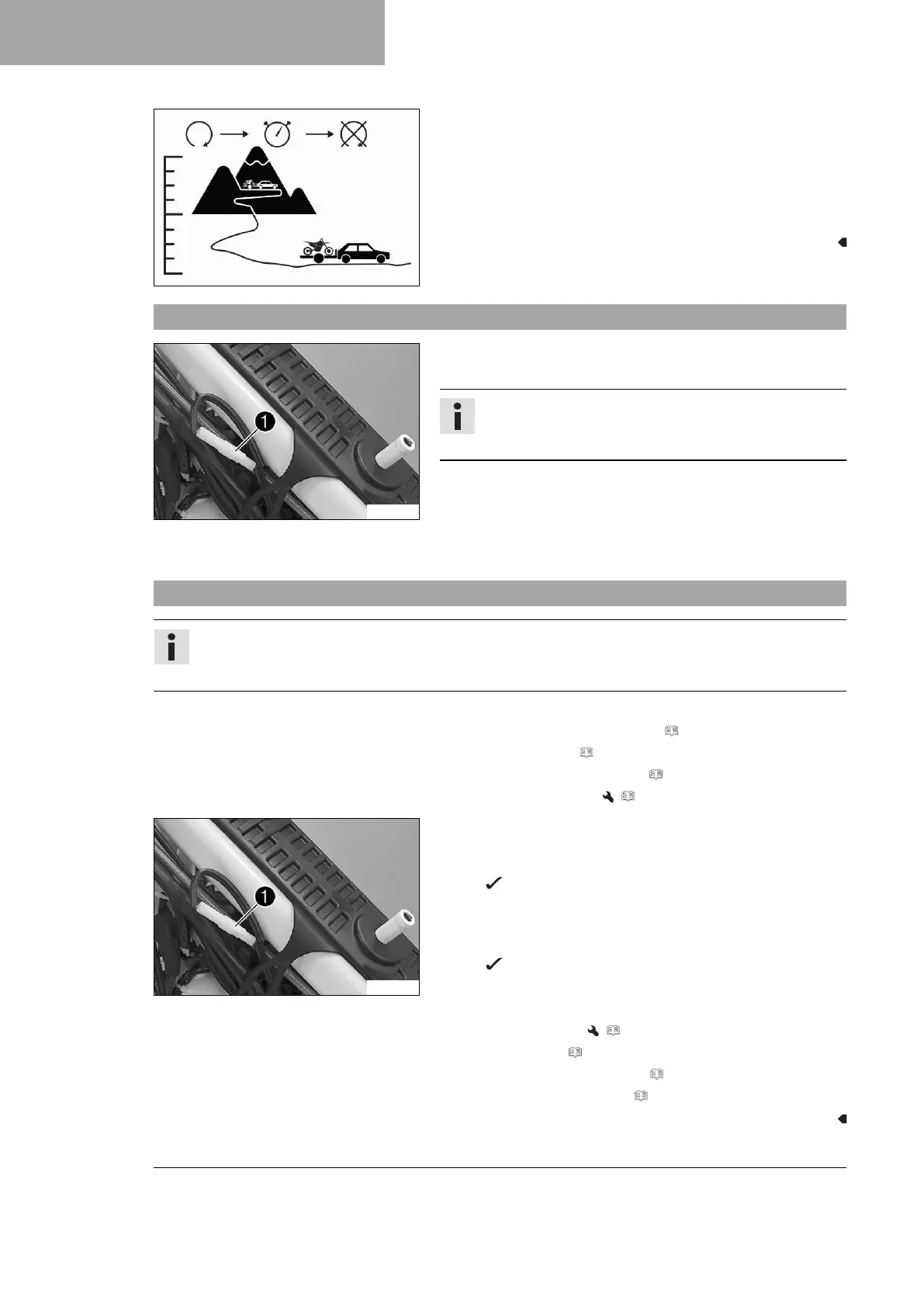

17.6 Ignition curve plug-in connector
V00984-10
Plug-in connector
1
of the ignition timing map adjustment is
located on the frame under the fuel tank.
Info
The ignition timing map connector has no function in the
homologated (restricted) condition of the motorcycle.
Possible states
• Soft – The plug-in connector of the ignition timing map
adjustment is disconnected to achieve better rideability.
• Performance – The plug-in connector of the ignition timing
map adjustment is joined to achieve higher performance.
17.7 Changing the ignition timing map
Info
The ignition timing map connector has no function in the homologated (restricted) condition of the
motorcycle.
Preparatory work
– Remove the air filter box cover. ( p. 69)
– Remove the seat. ( p. 68)
– Remove the right side cover. ( p. 74)
– Remove the fuel tank. ( p. 74)
V00984-10
Switching the ignition timing map from Performance to Soft
–
Disconnect plug-in connector
1
of the ignition timing
map adjustment.
Soft – Better rideability
Switching the ignition timing map from Soft to Performance
–
Join plug-in connector
1
of the ignition timing map
adjustment.
Performance – Higher performance
Finishing work
– Install the fuel tank. ( p. 76)
– Mount the seat. ( p. 69)
– Install the air filter box cover. ( p. 70)
– Install the right side cover. ( p. 74)
