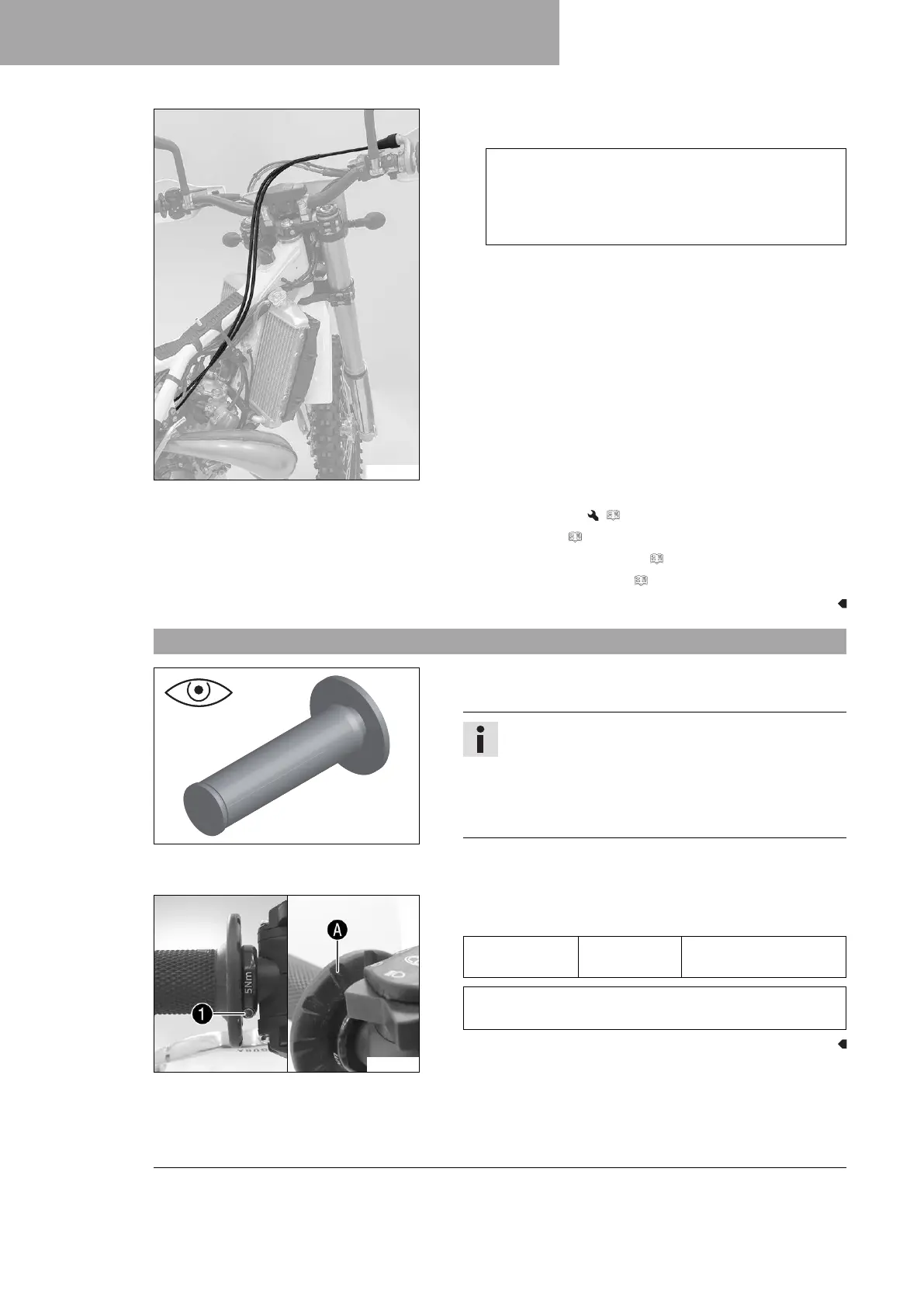

12 SERVICE WORK ON THE CHASSIS
84
K00936-01
Main work
– Check throttle cable routing.
Both throttle cables must be routed, side by side, on
the back of the handlebars, above the fuel tank bracket
on the right of the frame to the throttle valve body. Both
throttle cables must be secured behind the fuel tank
contact area rubber band.
» If the throttle cable routing is not as specified:
– Correct throttle cable routing.
Finishing work
– Install the fuel tank. ( p. 76)
– Mount the seat. ( p. 69)
– Install the air filter box cover. ( p. 70)
– Install the right side cover. ( p. 74)
12.41 Checking the rubber grip
401197-01
– Check the rubber grips on the handlebar for damage, wear,
and looseness.
Info
The rubber grips are vulcanized onto a sleeve on the
left and onto the handle tube of the throttle grip on the
right. The left sleeve is clamped onto the handlebar.
The rubber grip can only be replaced with the sleeve
or the throttle tube.
» If a rubber grip is damaged or worn:
– Change the rubber grip.
V00975-10
–
Check that screw
1
is firmly seated.
Guideline
Screw, fixed
grip
M4 5 Nm (3.7 lbf ft)
Loctite
®
243™
The diamond
A
must be positioned visibly as shown in
the figure.
