11 TUNING THE CHASSIS
54

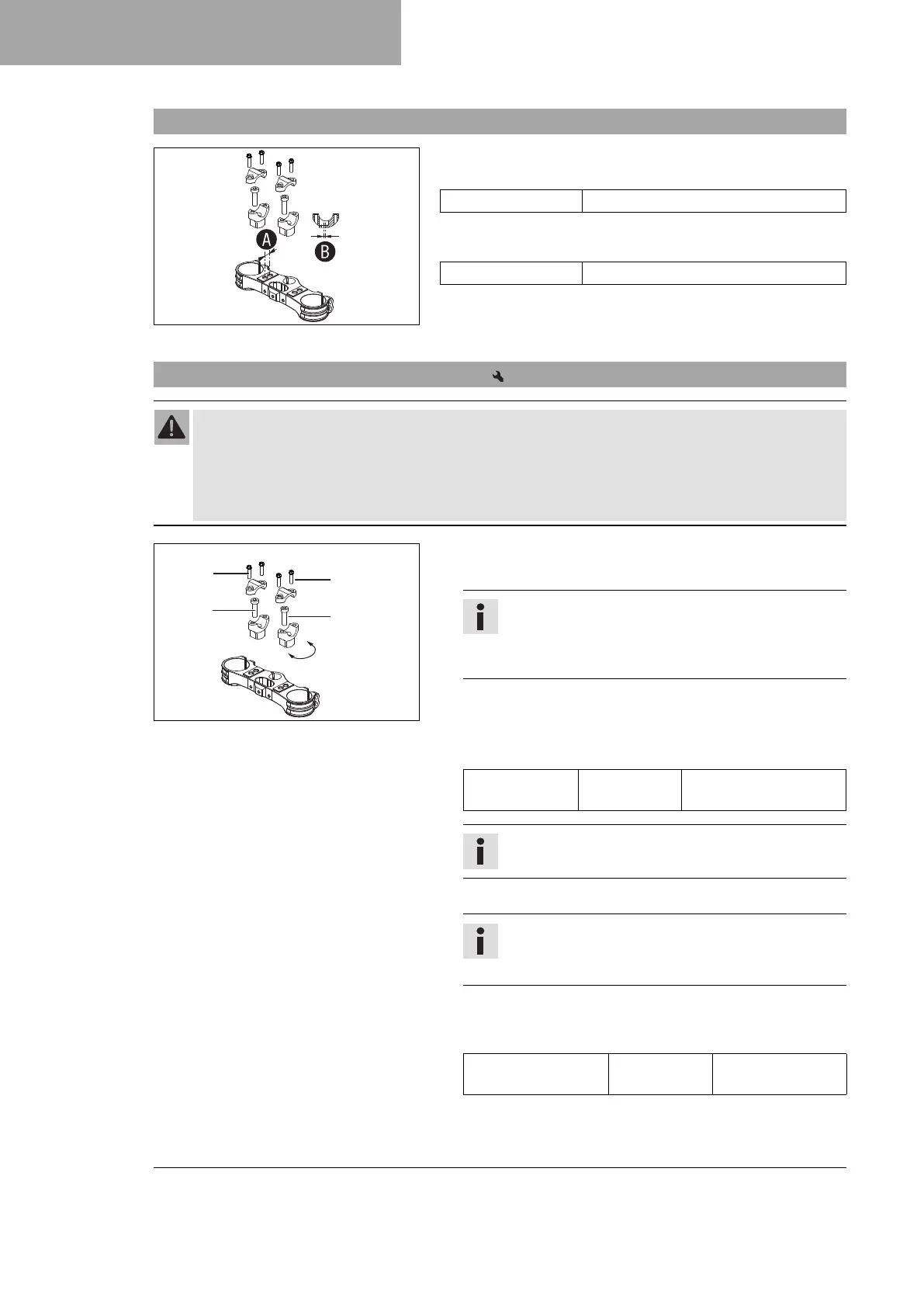

11.15 Handlebar position
800116-10
On the upper triple clamp, there are 2 holes at a distance of
A
to each other.
Hole distance A 15 mm (0.59 in)
The holes on the handlebar support are placed at a distance
of
B
from the center.
Hole distance B 3.5 mm (0.138 in)
The handlebar can be mounted in four different positions. This
allows the handlebar to be mounted in the most comfortable
position for the rider.
11.16 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.
B00375-10
–
Remove screws
1
. Take off the handlebar clamps. Remove
the handlebar and lay it to one side.
Info
Cover the components to protect them against dam-
age.
Do not kink the cables and lines.
–
Remove screws
2
. Take off the handlebar supports.
– Place the handlebar supports in the required position. Mount
and tighten screws
2
.
Guideline
Screw, handle-
bar support
M10 40 Nm (29.5 lbf ft)
Loctite
®
243™
Info
Position the left and right handlebar supports evenly.
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
–
Position the handlebar clamps. Mount screws
1
and tighten
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
