Set value of cycle to 1,【Ran】to 3, 【count】 to 10, X initial coordinate to 20.000,
keep-out area to 7.9, System will adjust it to 4 times automatically.
3×10＝30
20－7.9＝12.1
30＞12.1，【count】value will turn to 4 automatically.

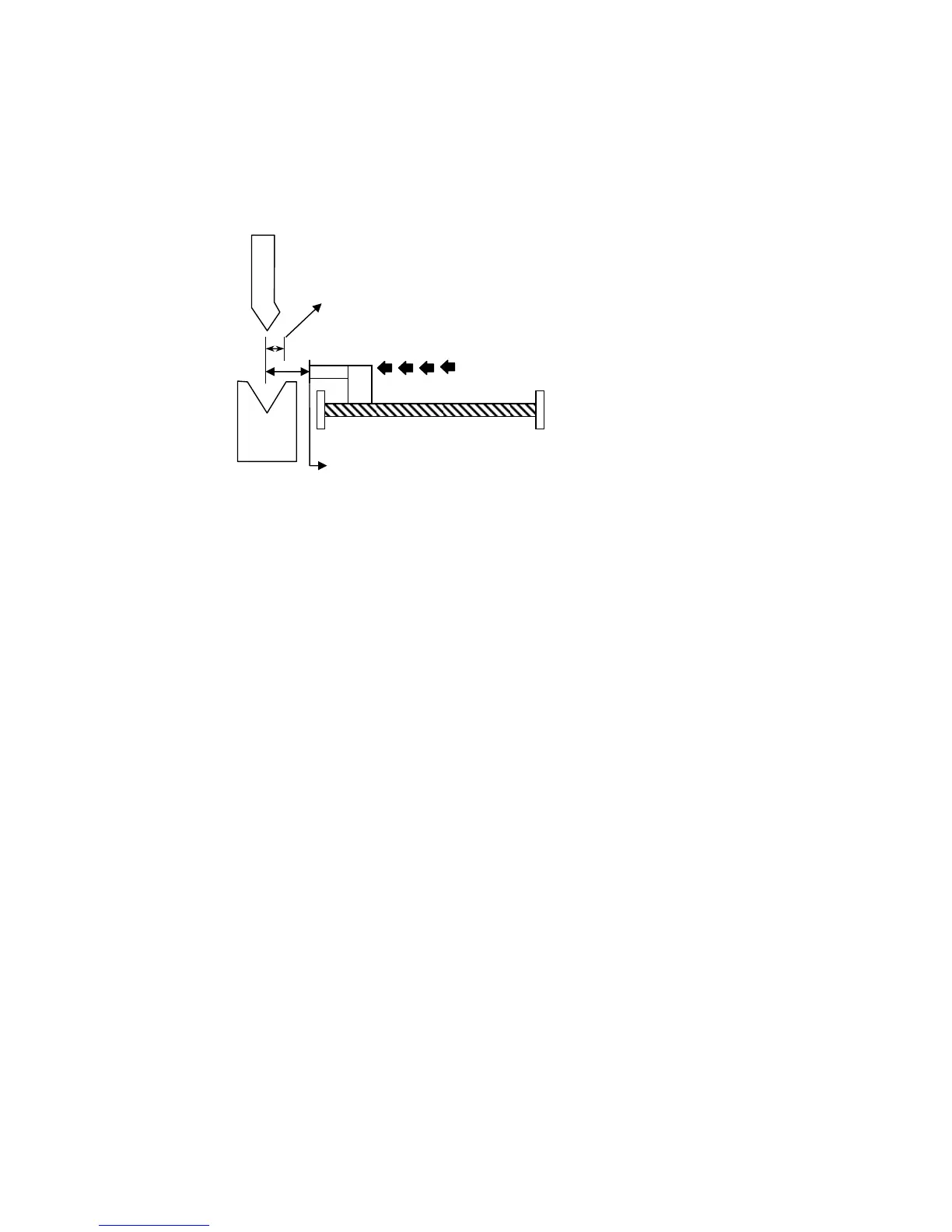

Fig 8
X initial coordinate is 20.000
kee
p
-out area is
【count】value will turn to 4
automaticall
y
