HUST CNC H6D-B3 MANUAL
16

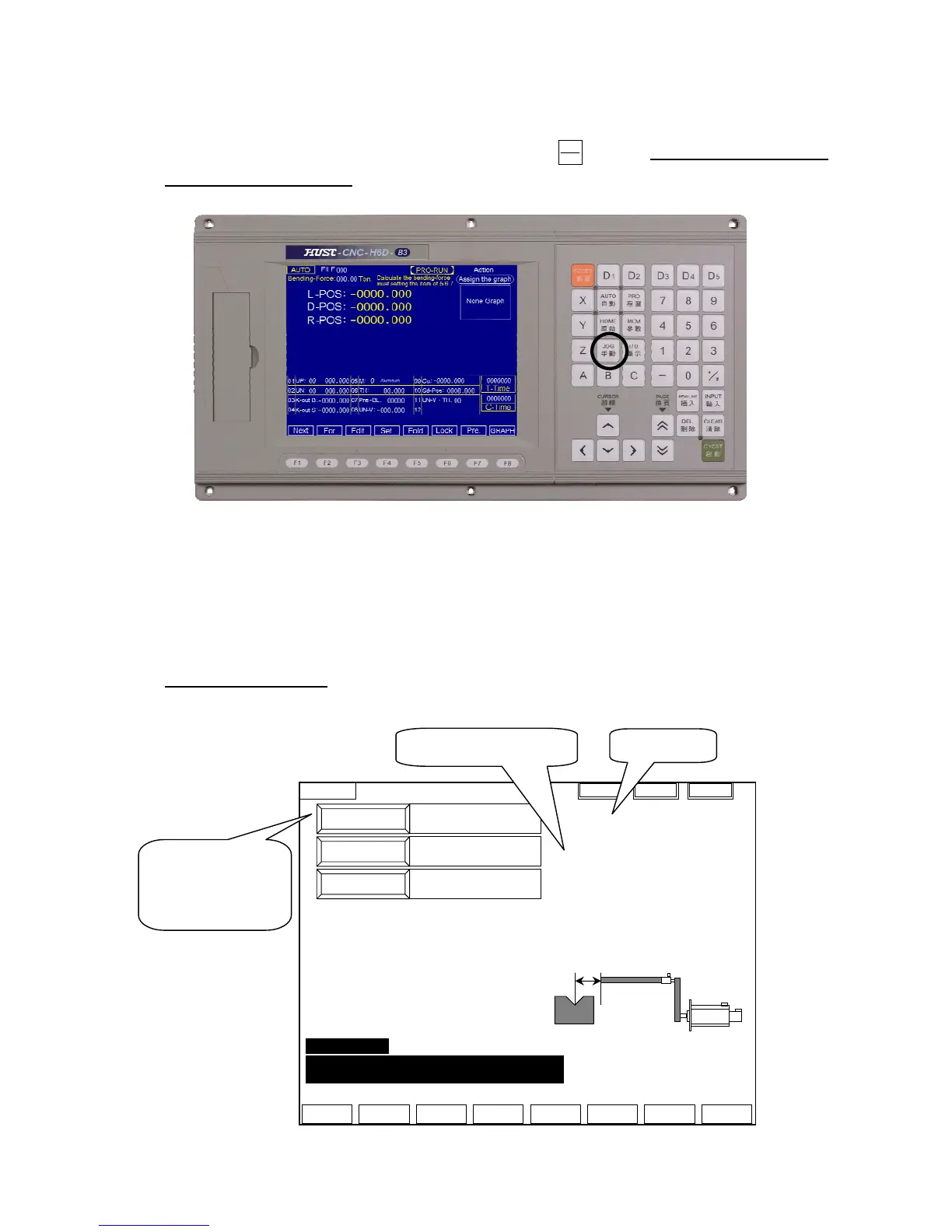

8. JOG mode：
(1) The page will move to JOG mode by pressing key. ( this key will fail when
the program is running)
Fig 16
(2) Choose axis value of JOG by MPG or choose it on the keyboard. When the
MPG is off, then the function on the keyboard is on.
L-axis(X)、D-axis(Y)
Parameter 22 = 0 ：The function is on by MPG hand wheel.
Parameter 22 = 1 ：JOG operation on the keyboard.
Setting by engineer
(3) Turn the “MPG” or press “PAGE” key  Manual control
Fig 17
JOG
手動
JOG
Correct Enter Ret
L-POS
-0000.000
-0000
-0000.000
D-POS
-0000.000
-0000
-0000.000
Correct Step：
1. MPG or JOG mode, move the
L(X)-axis to suitable position.
2. Measure the actually value.
3. Input the Value.
4. Quickly press the ENTER key twice.
Then renew the coordinate.
5. After renew the coordinate then turn
to the JOG mode automatically.
R-POS
-0000.000
-0000
-0000.000
Setting coordinate
L：-0000.000
D：-0000.000
R：-0000.000
X1 X10 X100
Error Message:
Err56 The Z-axis(R-axis) negative way assign value
is smaller than the setting value.
Measuring value：-0000.000
Servo Error
Machinery coordinate
+ limit signal
HOME limit signal
- limit signal
