c. Will show at this moment【0 groups copy to 5】。
d. Push and copy the key, Can finish copying movements.
(4) Press the enter key and get back to the automatic way page.
7. Bending-selection for fold setting page :（FOLD）

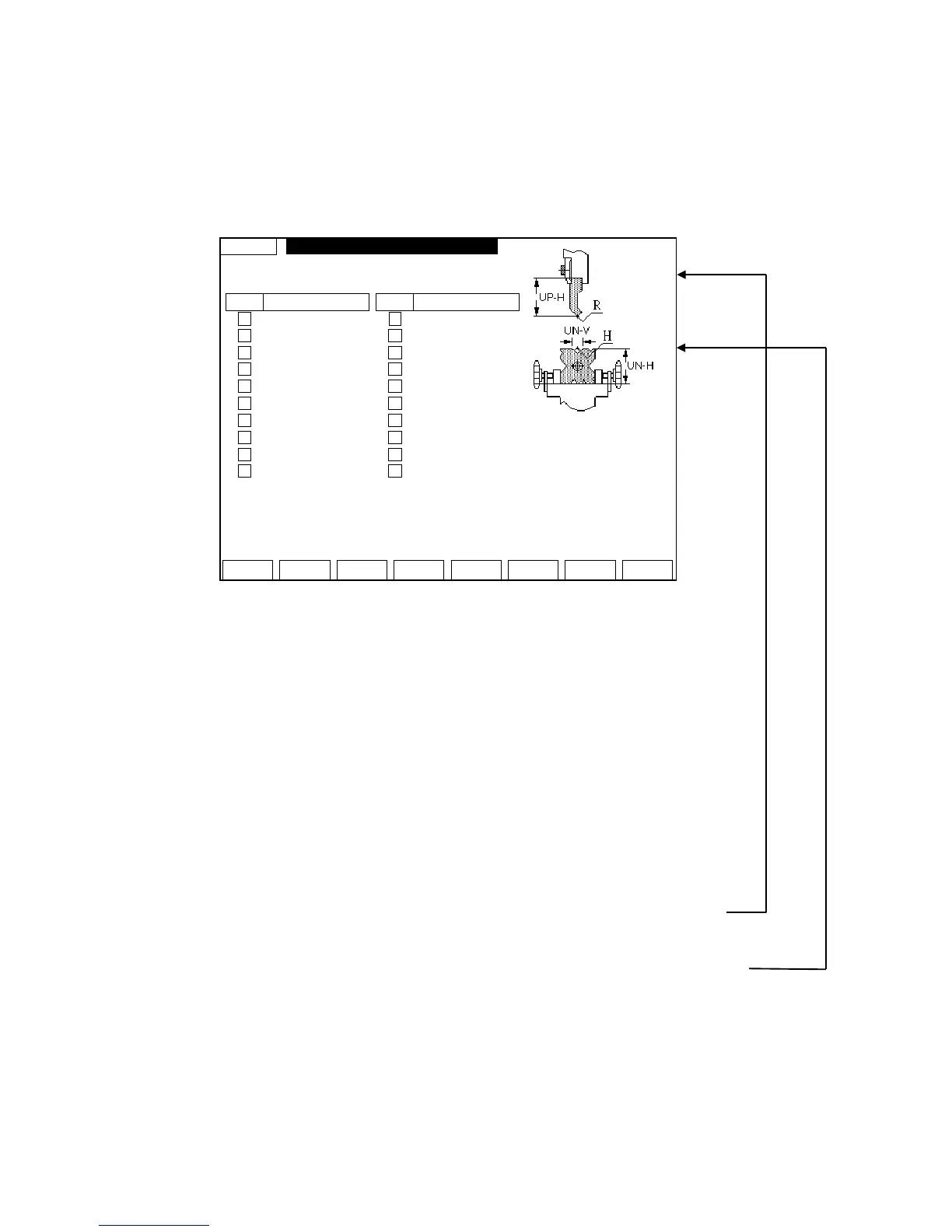

Fig 13
(1) Upper-CHICE number :（UP）
Input the serial number of upper- CHICE
(2) UNIT- CHICE number :（UN）
Input the serial number of unit- CHICE
(3) UP-SET :
Total file setting of UP-SET is 20.
Function key：
 （UN）Lower：Establish pages to make the（UN） Lower.
 Editor：To editor's page.
 Turn back：Get back to the automatic way.
Display：
 Ones that show and choose at present specification of the cutter。
 (UP) Upper and（UN）Lower Choice the structure chart，Can establish the
specifications of a knife of tools according to the sign of the figure .
 (UP) Upper-Choice page：(Can establish the height , width of cannelure ,
SMALL K-OUT setting、BIG K-OUT setting.)
(4) UN-SET :
Total file setting of UN-SET is40
UP UP-H
01
0000.000
02
0000.000
03
0000.000
04
0000.000
05
0000.000
06
0000.000
07
0000.000
08
0000.000
09
0000.000
10
0000.000
Fol
d
UN-Set Edit Ret
Upper-Choice 1~20/Lower-Choice 1~40
Tool Use
d
UP-H ： 000.000
UN-H ： 000.000
UN-V ： 00.000
K-Out B ： 000.000
K-Out S ： 000.000
Instruction
UP UP-H
11
0000.000
12
0000.000
13
0000.000
14
0000.000
15
0000.000
16
0000.000
17
0000.000
18
0000.000
19
0000.000
20
0000.000
UP-SET:00
