1.3
WIRING CONNECTIONS
After the machine is leveled and anchored the necessary power hook-up needs to be performed.
In order to provide a safe operation as well as to prevent potential damage to the machine, only qualied personnel
should be allowed to do the work.
The rst two areas that need to be checked are:
• There are no signs of shipping damage to electrical conduits, cords or hydraulic hoses.
• Hydraulic oil level is between the upper and lower lines on the level gauge.
As supplied, the machine is set to run on the three phase voltage as indicated on the serial plate and voltage label.
Power connection to the machine is made in the electrical control panel, located at the rear of the machine. The power ca-
ble can be routed through the supplied hole at the rear of the machine, and connections made to L1, L2, L3, and ground
terminals. Proper strain relief should be used on the incoming power cable.
During the initial hook-up it is very important to check that the phase order is correct. This is indicated by the hydraulic
pressure gauge registering a pressure rise and the blade running in a counterclockwise direction. If the hydraulics do not
register an immediate pressure rise,
-Disconnect the power- and change the phase order.

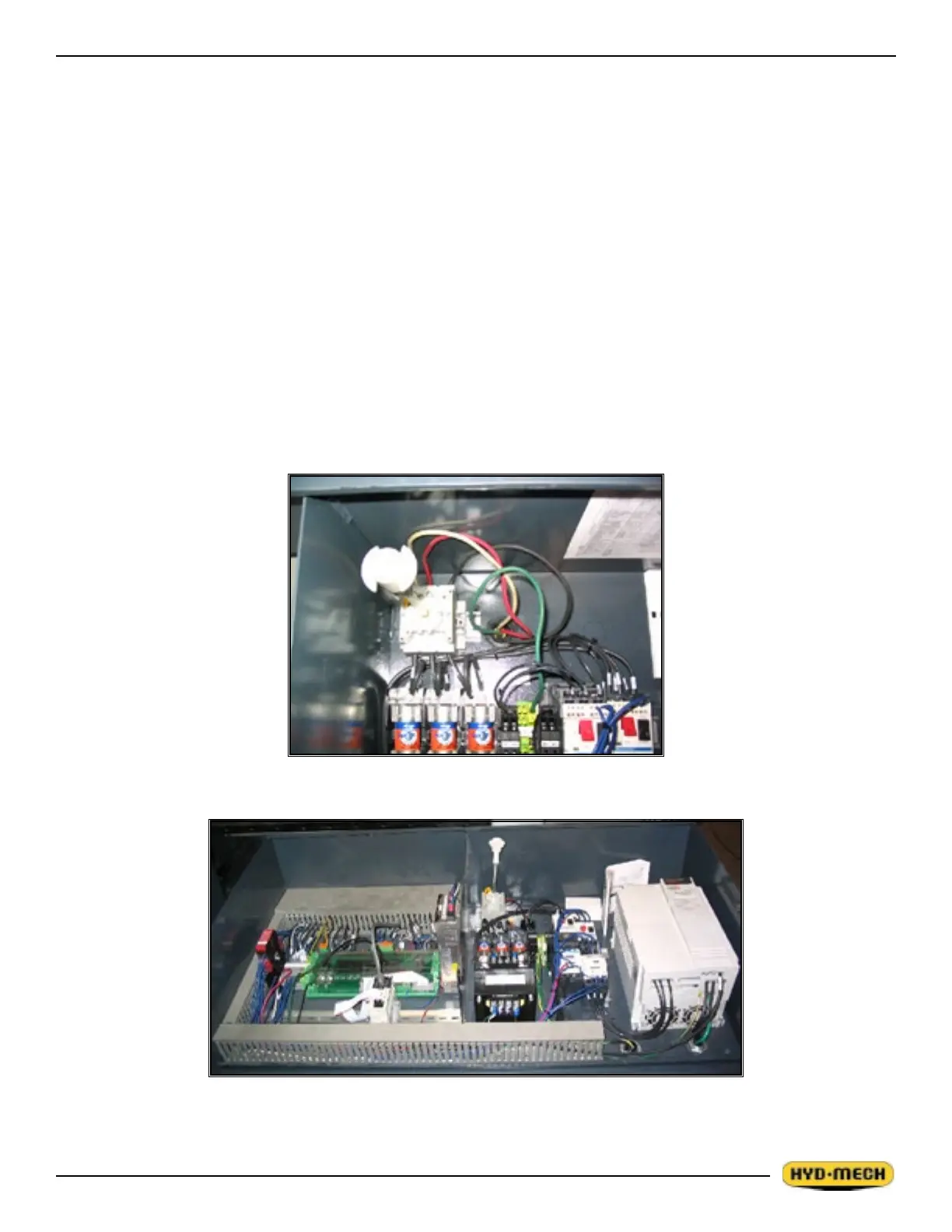

L1, L2, L3, & Ground Connections
Inside the electrical control enclosure
ATTENTION: Running the hydraulics “backwards” can damage the hydraulic pump.
