7--12
95
Use and maintenance manual S20DSP

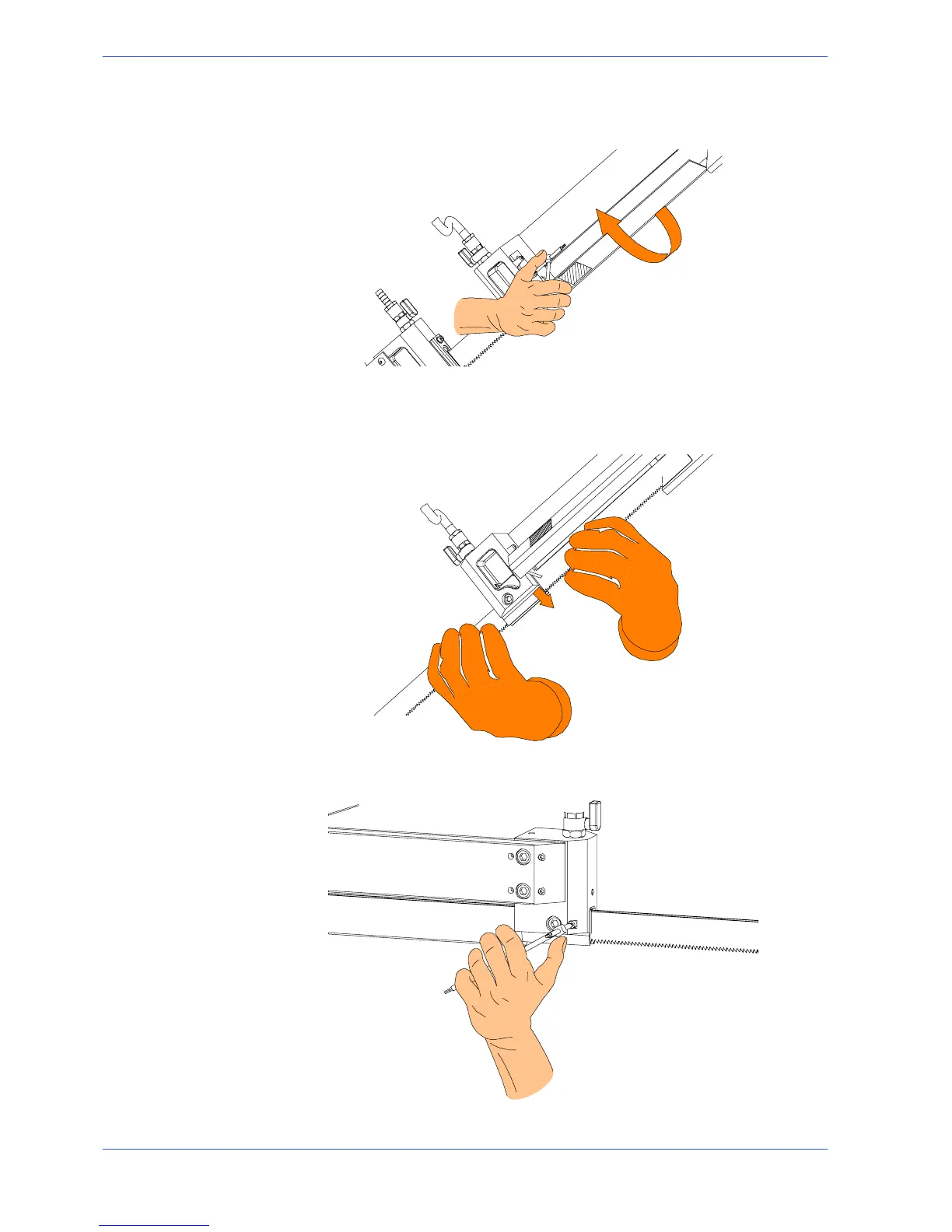

" open the front blade guard by undoing the fixing screw and rotating it as illus-
trated in the figure below;
" wear protective gloves when making this adjustment;
" make sure there is a small amount of play between the blade and guide plate
inserts;
" if the amount of play is not sufficient for the blade to run smoothly, adjust the
lockingtorqueofthetwogrubscrewswithanAllenkey;
