Use and maintenance manual S20DSP

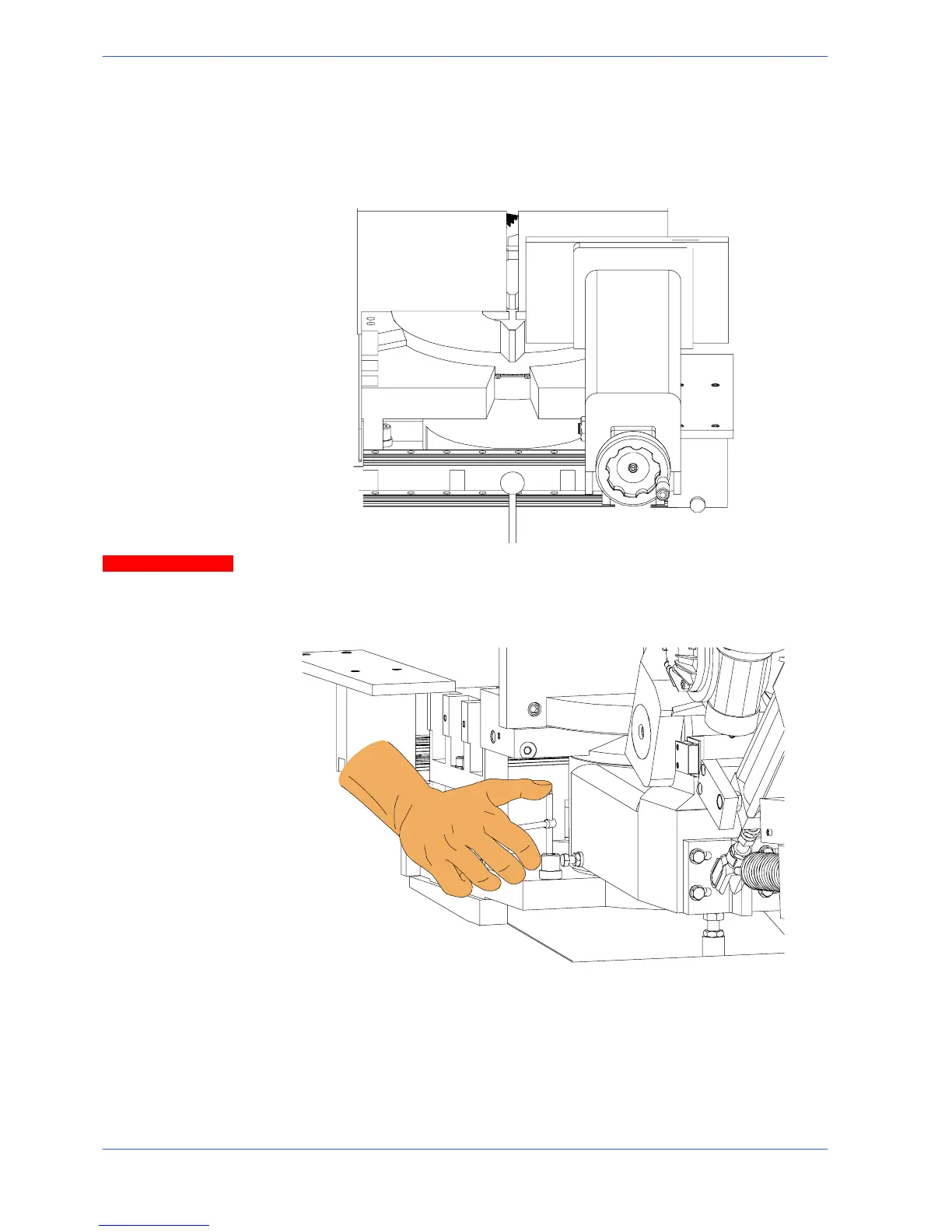

Angled cu ts 45˚ to the right
Carry out the same operations described in the previous paragraph, remembering
that before you start machining you must first:
" move the vice to the right of the cutting slot;
When positioning the vice to the left or right, make sure the moving jaw is be-
yond the 0˚cutting slot to avoid any risk of collision with the blade downstroke.
" slacken the turntable lock/release lever;
" remove the 0˚ stop;
" swing the head from left to right until it is positioned at the required angle, as
indicated by the graduated scale on the turntable;
" relock the turntable lock/release lever;
" Perform the cut keeping in mind the preliminary safety i nstructions noted in
this chapter.
Attention
