Use and maintenance manual S20DSP
H EEC Directive No. 77/576 and No. 79/640 on safety signs at work.
PERSONAL PROTECTION
H EEC Directive No. 89/656 and No. 89/686 on the use of personal protection de-
vices.
ENVIRONMENTAL PROTECTION
H EEC Directive No. 75/442 on waste disposal;
H EEC Directive No. 75/439 on the disposal of used oil.
H Directive 2002/95/EC on the restriction of the use of certain hazardous substances
in electrical and electronic equipment (RoHS).

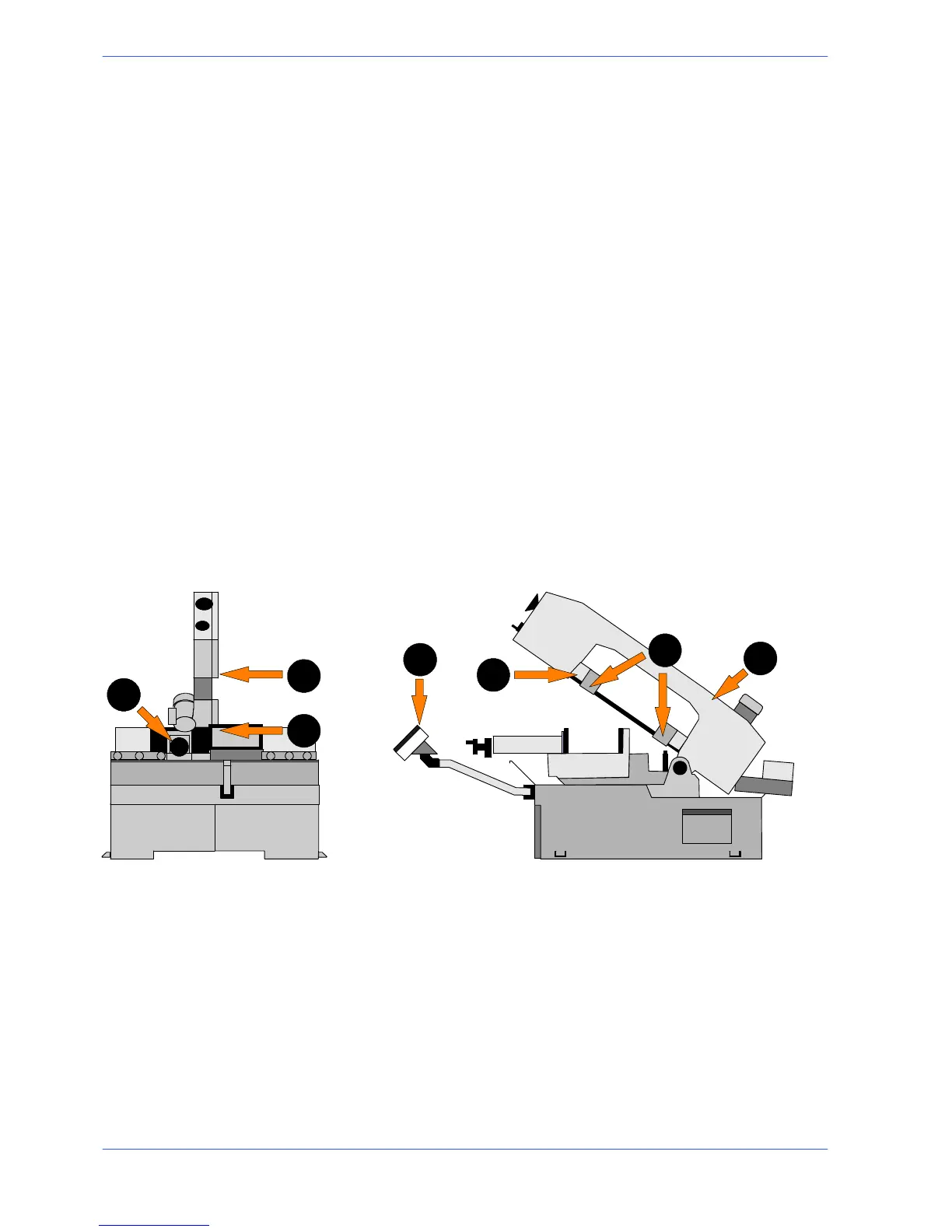

Protection against accidental contact with the blade
1. Metal guard screwed to the rear blade guide head (machine side);
2. metal guard screwed to the front blade guide head (operator side);
3. front head sliding support: when the head is at maximum aperture, the
support ensures that the blade is covered, leaving free only the part of the
blade engaged in the actual cutting, in accordance with Presidential Decree
no. 547/55, art. 108;
4. hinged protective cover over blade, fitted with removable closing devices;
5. blade guide plates completely covering the blade teeth;
6. the cutting vice is operated by hydraulic devices, with a max. stroke of 8 mm;
the jaws locking the piece must be moved at a distance of 2P3 mm from the
piecetobemachined.
7. programming and control panel mounted on an articulated, adjustable arm,
so that the operator is always at a safe distance from moving components.
5
2
1
6
4
3
7
Electrical equ ipment
In accordance with Italian standard CEI 60204---1, April 1998, derived from
European Standard EN 60204---1 publication IEC 204---1, 1997:
H Access to electrical control panel limited by screws and panel---lock device,
allowing panel to be opened only after the electricity supply has been turned
off;
H 24 Vac Control voltage for actuators, in accordance with chapter 6 or
European Standard ”Control and indication circuits”, paragraph 2 ”Control
Circuits” sub---section 1 ”Preferential voltage values for control circuits”;
