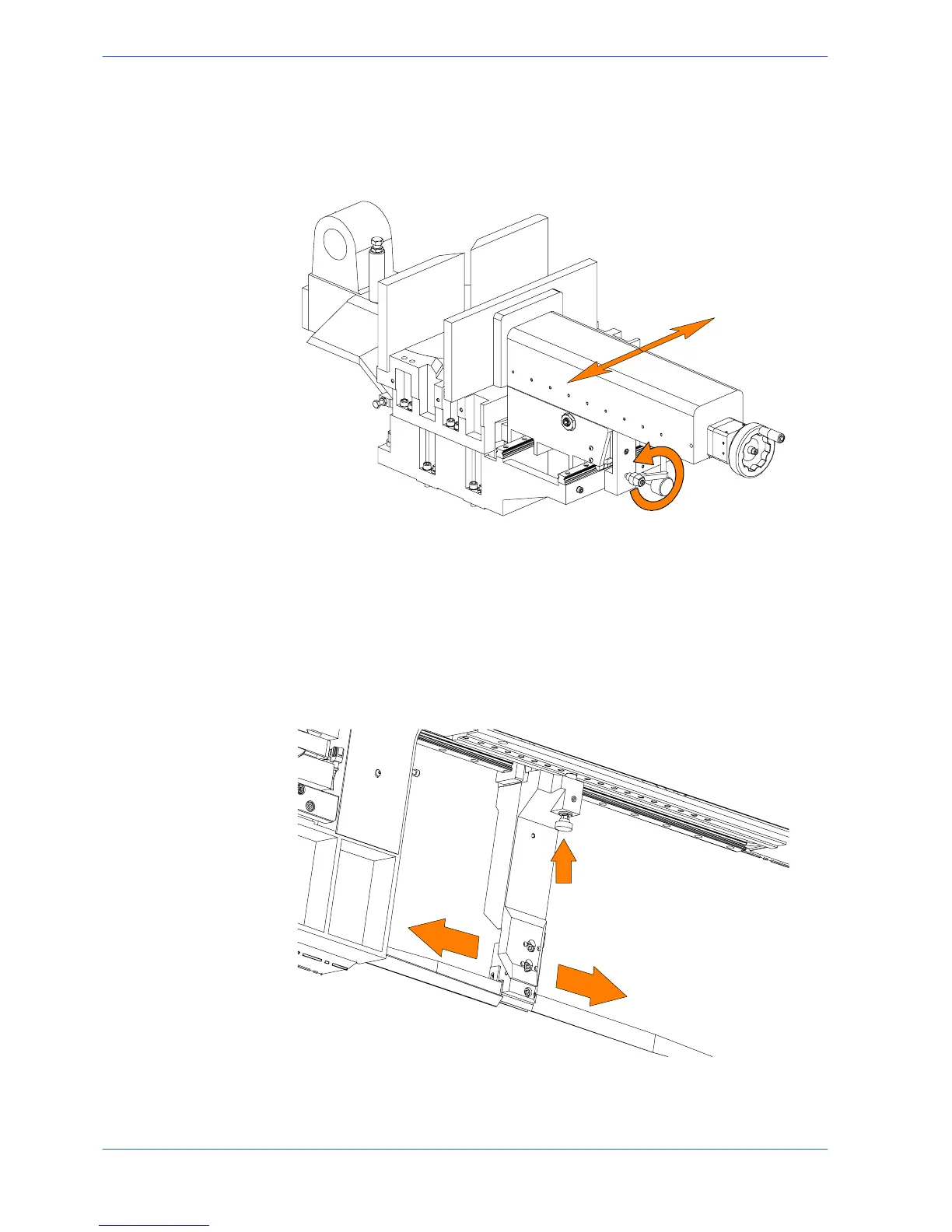

Rapid vice translation
Thevicecanbemovedtotheleftortotherightinordertocarryoutangledcuts,
by sliding it along the straight guides.
" Release the blocking ball grip indicated in the figure;
" Position the vice on the left or on the right and tighten the blocking ball grip;
Width of cut
The machine is fitted with protections which protect the entire blade stroke,
leaving exposed only the part of the blade required to make the cut itself as
specified by current standards. The width of the cut is determined by the
longitudinal section of the workpiece, so that only the part of the blade required
to make the cut is actually exposed.
" Position the workpiece on the work table in proximity to the blade down-
stroke trajectory and clamp it in the vice;
" release the lever to allow the blade guide small head rod to run inside the
bow;
" positionthemobilefrontguideheadneartheworkpiecesothatthedownstro-
ke trajectory exceeds the mobile vice jaw;
