5--5
33
Description of machine operation

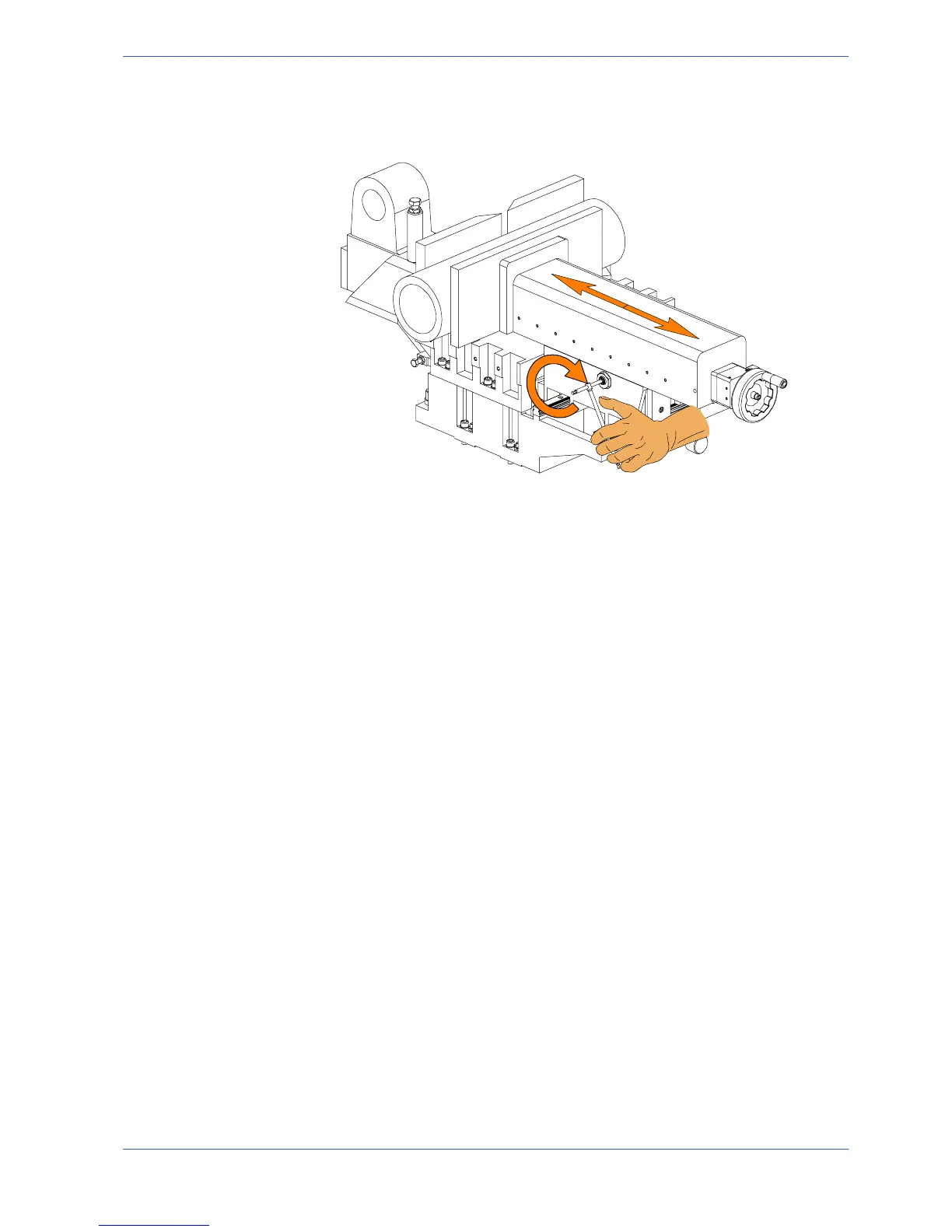

" Grip the lever illustrated in the figure below and rotate in a clockwise direc-
tion: the vice is now free to slide back and forth to the required position.
Once positioned, release the lever to lock the vice in place.
" Finally, position the vice to within 2÷3 mm of the workpiece using the han-
dwheel.
