Use and maintenance manual S20DSP

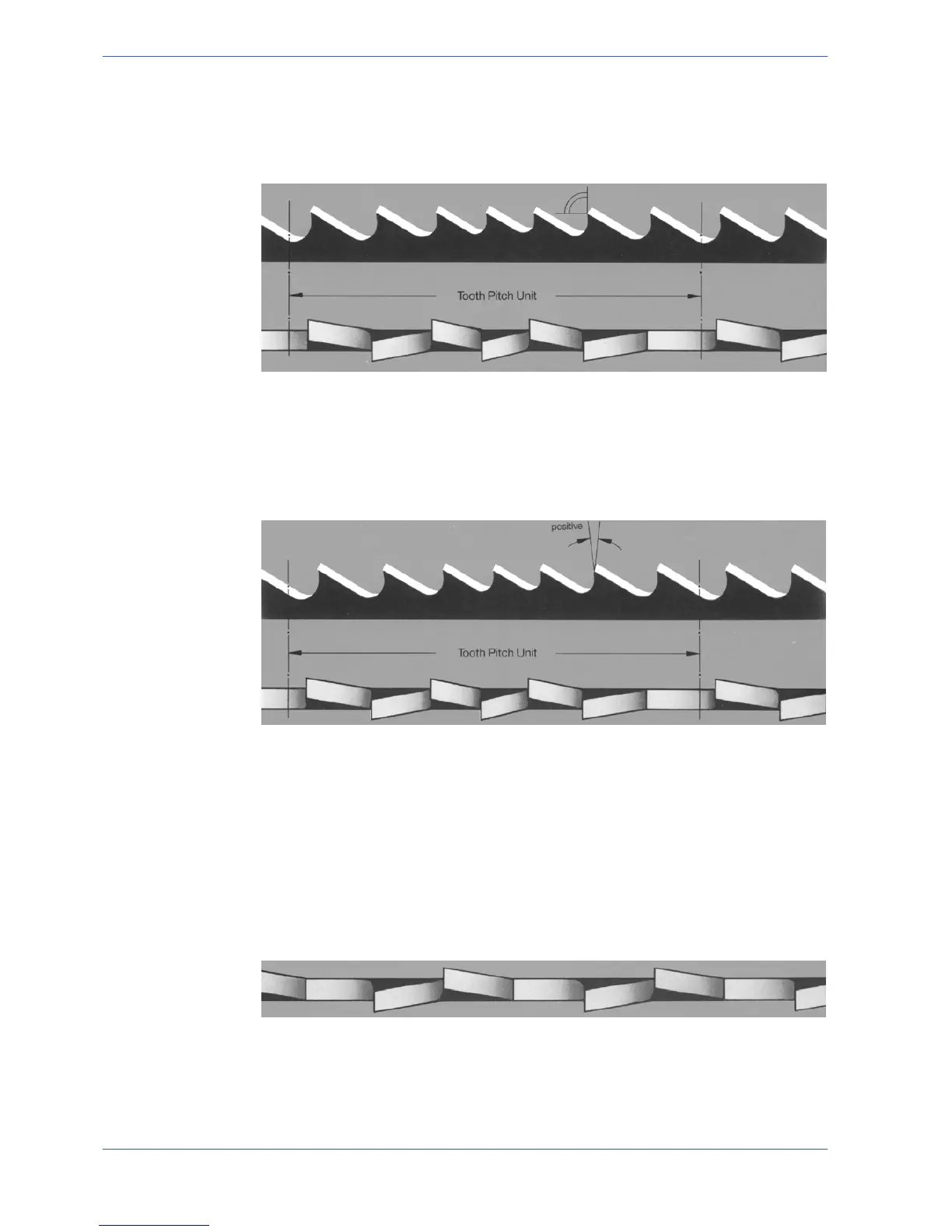

Variable p itch blad es with 0˚ cutting angle
This type of tooth formation is ideal for cutting single pipes or medium size
bundles, in accordance with the capacity of the machine.
P i t c h e s a v a i l a b l e : 3 --- 4 / 4 --- 6 / 5 --- 7 / 5 --- 8 / 6 --- 1 0 / 8 --- 1 2 / 1 0 --- 1 4 .
Variable pitch with positive rake (from 9 to 10 deg rees)
This toothing type is the most suitable for cutting large dimension pipes and
profiles, including large sections, as well as for cutting solid sections up to the
machine capacity l imit.
P i t c h e s a v a i l a b l e : 3 --- 4 / 4 --- 6 .
Set:
The term set refers to the section of material removed by the blade during the
cutting operation, i.e. relating to width of cut and the offset position of the teeth
with respect to the blade back.
Standard or splayed set
This term is used to describe an alternated angling of the teeth: one to the right, one
to the left and one straight.
