2--6
10
Use and maintenance manual S20DSP

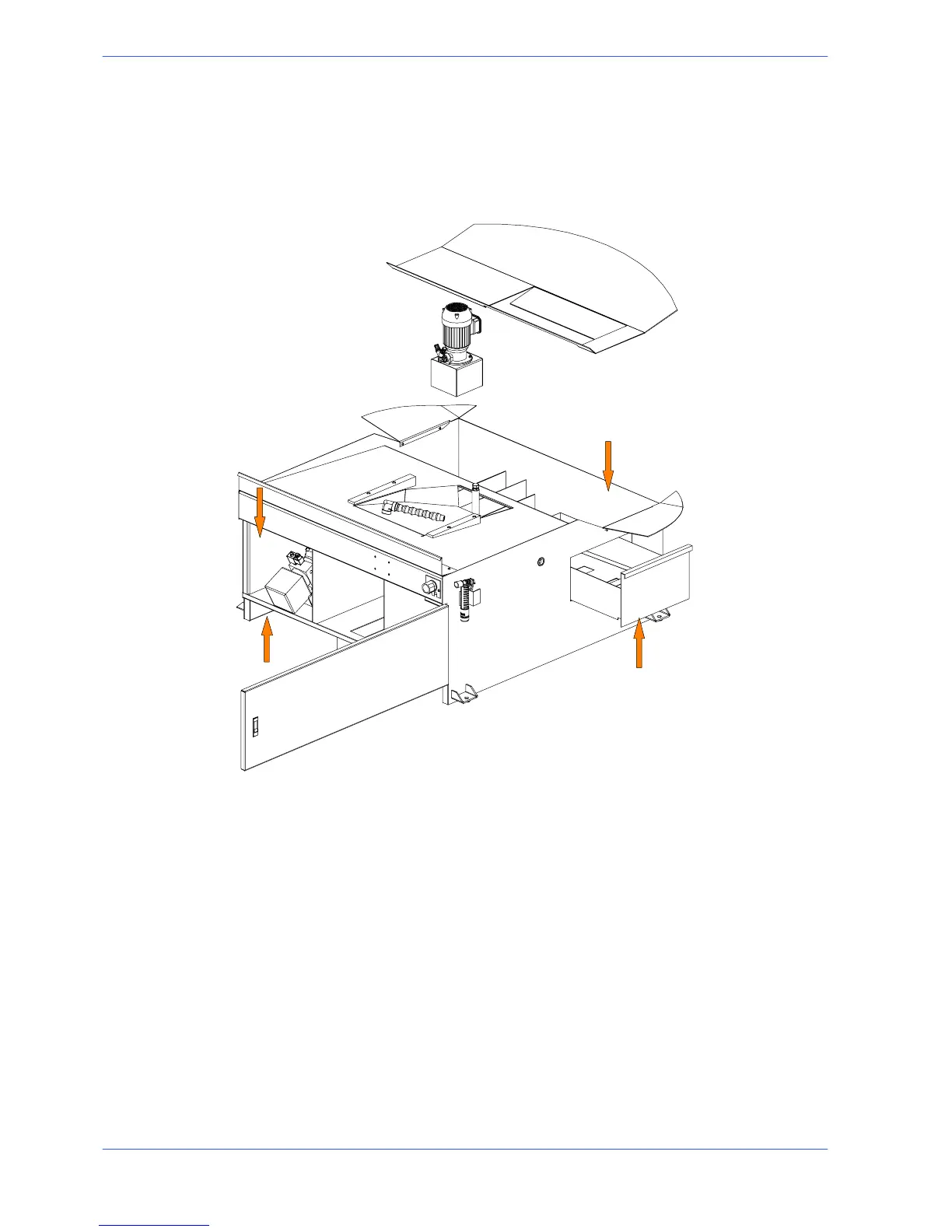

Base
This unit features a large coolant collection surface which conveys the coolant to
the rear tank via the tank cover, and a swarf collection drawer. An electric pump
is hous ed inside the tank which draws the clean fluid from the filter system.
Lubricant/coolant tank
Electric pump housing
Swarf collection drawer
Hydraulic single box housing
