Use and maintenance manual S20DSP

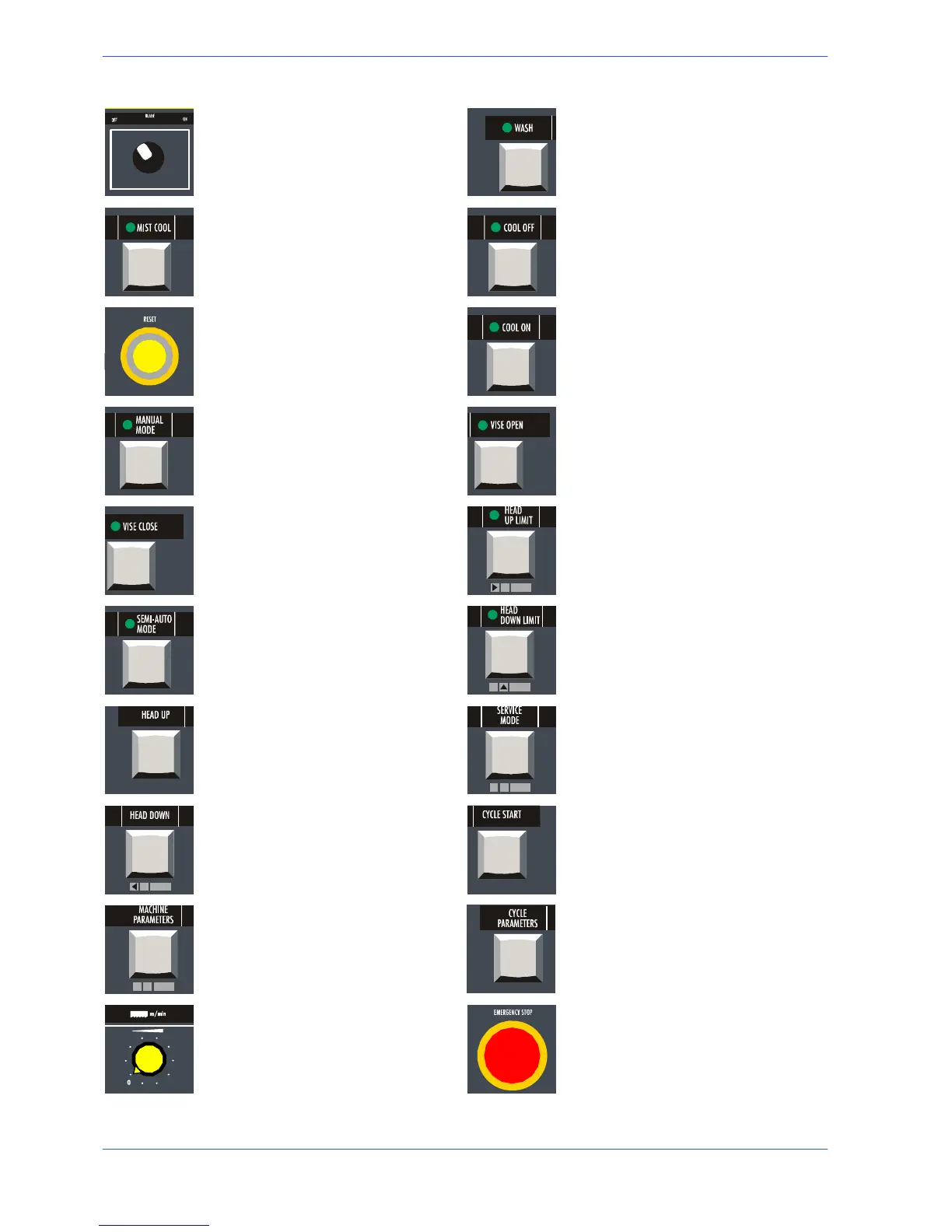

Blade motor selector: enables or disables
the cutting ci cle start button
Gun for washing the work tops
Selection for min. lubrication (optional) No lubricant/coolant key
RESET key: resets the machine after an
emergency condition or conflicting com-
mand
Lubricant/coolant spray cock key (only
available during cycle)
Manual cycle key Vice opening
Vice closing
FCTI (Head Upstroke Limit) mem-
ory key for Head Positioning System
Semi--- automatic cycle key
FCTA (Head Downstroke Limit) mem-
ory key for Head Positioning System
Head “up” key Diagnostics key
Head “down” key Programmed cycle start key
Machine parameters input/edit key
Key for di splaying the machine para-
meters for performing a machining cycle:
TL blade tension, PT head position, VL
blade speed, T cutting time, PZ cut piece
number, I motor absorption
Electronic speed control (inverter).
Blade cutting speed potentiometer: 20 to
45 m/min. at low speed and 35 to
90 m/min. at high speed
Mushroom head emergency stop button:
when pressed, this button immediately
shuts down the machine. To reset the
emergency stop button, simply rotate
through 45˚
