6--4

Use and maintenance manual S20DSP

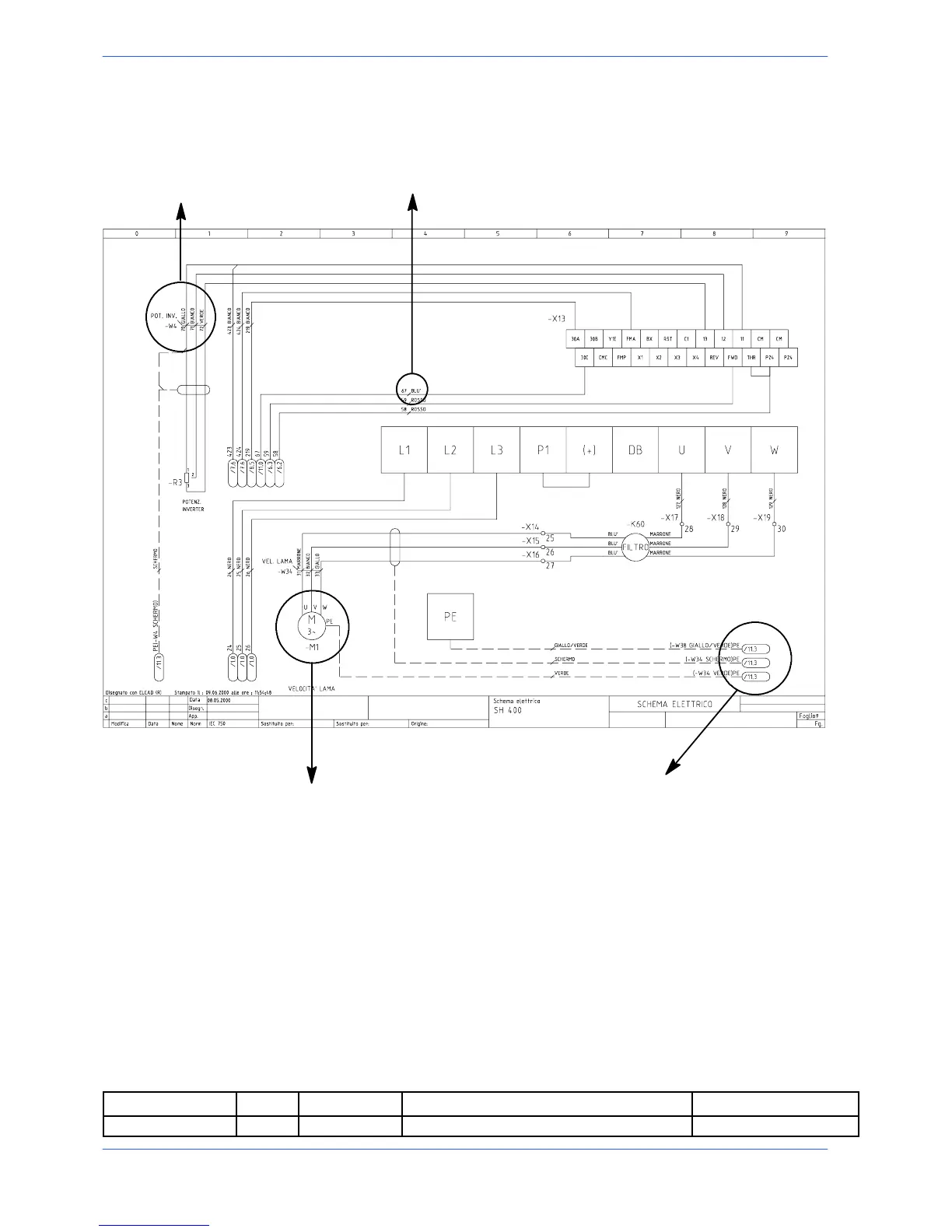

Each component in the wiring diagram is identified by a unique alphanumeric

identification code, in compliance with regulations:

The motor is identified by the code ---M1

The wire is identified by the

c o d e --- W 4

These symbols, known as potentials, are used to

provide page references: the first number indi-

cates the page to be referred to, the second

number, after the dot, identifies the column on

that page; example /11.8 indicates that the wire

continues on page no. 11 in column 8

This symbol identifies the wire

with its relative number and co-

lour

The pages following the wiring diagrams contain the following lists:

1. components list (list of all components) and terminals list (list of all the ter-

minals) with the following information:

n in---house article code;

n identification code;

n reference, no. of the page and column on which it can be found;

n description;

n manufacturer.

ART. COD.

ID PRES. REF DESCRIPTION MANUFACTURER

022.2151 -- B 1 /5.2 STRAIN GAUGE DELTATEC
